Ulvac GW-2002 Capacitance Manometer

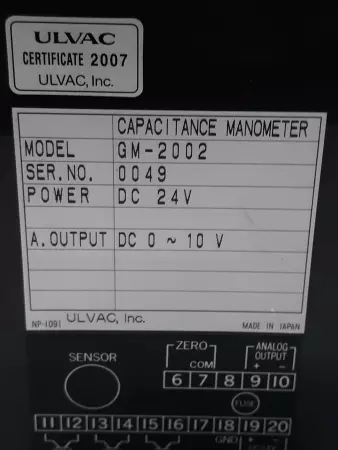

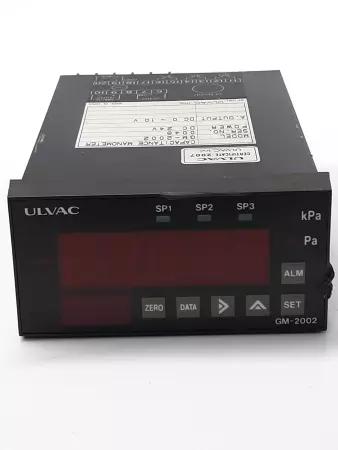

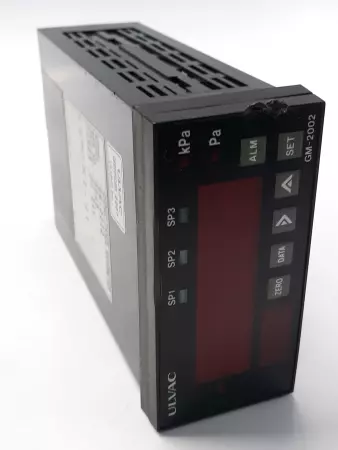

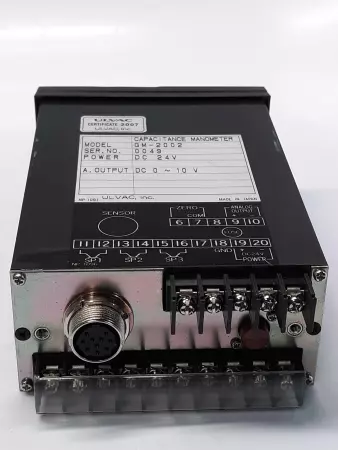

The ULVAC GW-2002 is a high-accuracy capacitance diaphragm vacuum gauge designed for precise pressure measurement in vacuum process systems. It offers excellent repeatability and thermal stability for semiconductor, coating, and analytical equipment. Measurement Range: 0–1000 Torr (full-scale) Sensor Type: Capacitance manometer (ceramic or metal diaphragm) Supply Voltage: 24 VDC Output Signal: 0–10 VDC linear analog output Accuracy: ±0.5% of full scale (typical) Repeatability: ±0.1% of reading Temperature Coefficient: ±0.02% FS/°C Response Time: <20 ms (electrical), <200 ms (gas stabilization) Pressure Units: Torr, Pa, or mbar (factory-configurable) Process Connection: NW/KF 16 or 25 flange (varies by configuration) Electrical Connection: 9-pin D-sub (standard ULVAC pinout) Operating Temperature: 5–45°C Storage Temperature: –20 to 60°C Mounting Orientation: Any (no orientation effect due to diaphragm design) Materials in Contact with Gas: Stainless steel, ceramic (inert to most gases) Application: Thin-film deposition, etching, leak detection, analytical instruments Manufacturer: ULVAC, Inc. (Made in Japan) Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.90

Depth:   4.00

Length:   8.00

Width:   10.00

SKU:   18968 4.S6.12.3
