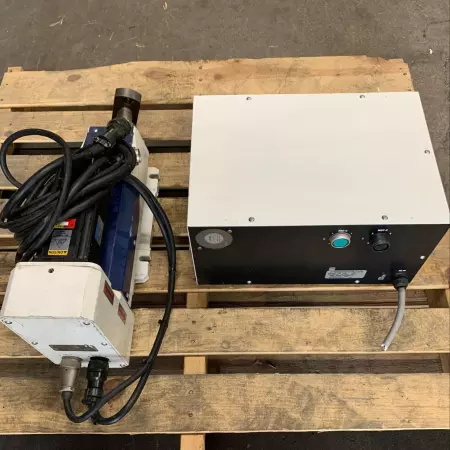

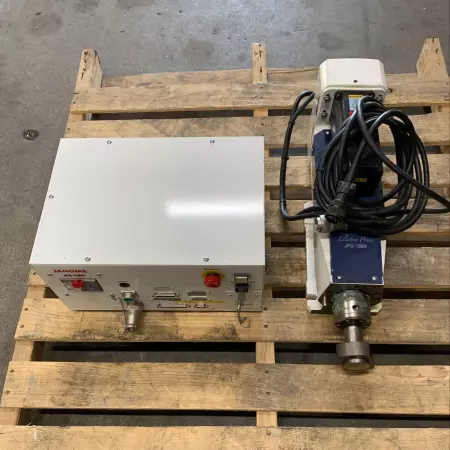

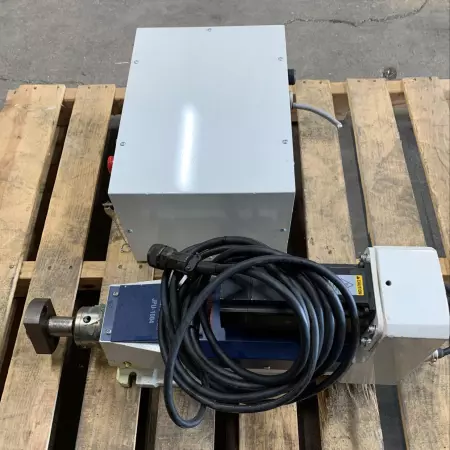

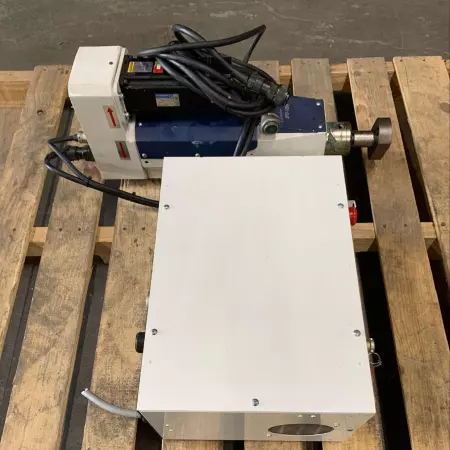

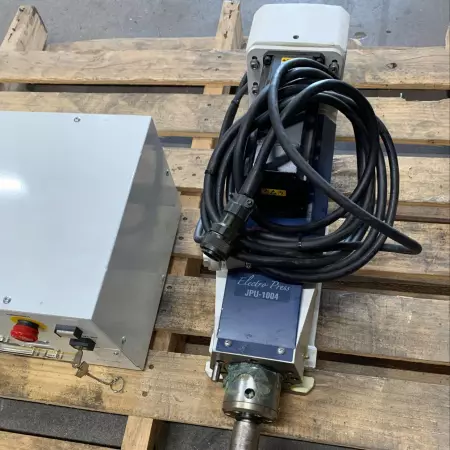

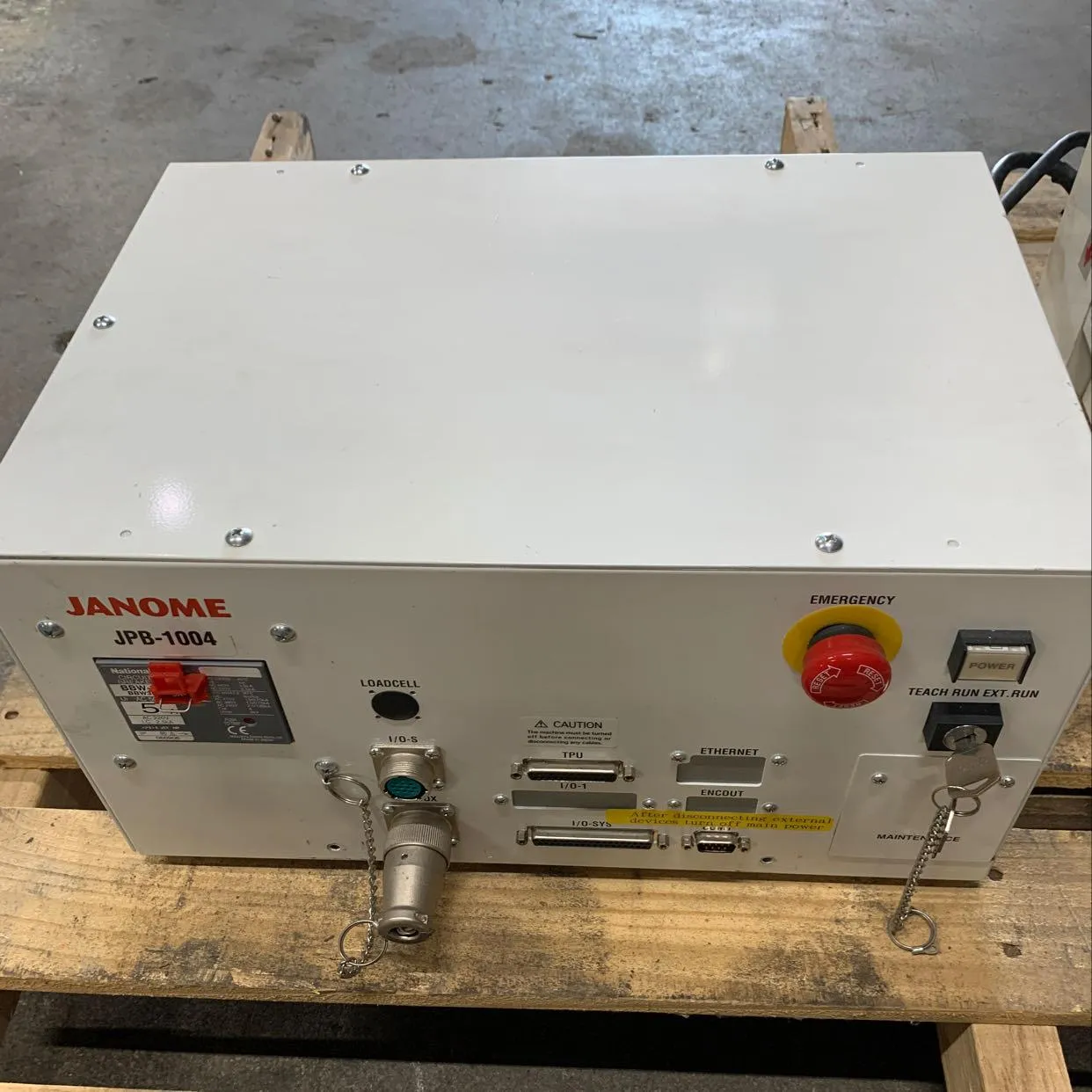

Janome JPU-1004/JPB-1004 Control Unit, Servo Electro Press 10kN

The Janome JPU-1004 (Control Unit) and JPB-1004 (Press Head Unit) make up a complete Servo Electric Press System capable of delivering up to 10 kN of precise pressing force. Ideal for assembly, press-fitting, and quality-critical joining applications, this system provides programmable control of force, speed, and position with real-time feedback for high-accuracy, data-driven manufacturing environments. Technical Specifications: ✅ Press Head (JPB-1004): Maximum Force: 10 kN (approx. 1,000 kgf / 2,248 lbf) Drive Type: AC servo motor with ball screw mechanism Stroke Length: Typically 100 mm (confirm model variant) Repeatability: ±0.01 mm (high precision) Position Detection: Absolute or incremental encoder Mounting Orientation: Vertical (standard), horizontal options available Tool Mount: Customizable for end-effectors, dies, or jigs ✅ Control Unit (JPU-1004): Function: Controls press motion (force, speed, position, dwell) Power Supply: 200–240 VAC, single- or 3-phase (depending on model) Communication Interfaces: I/O (discrete inputs/outputs) RS-232C, Ethernet, Fieldbus options (e.g., CC-Link, EtherNet/IP, PROFINET – model dependent) Program Capacity: Multiple press profiles (force, distance, time-based) Monitoring Functions: Force vs. displacement curve Upper/lower limits for OK/NG judgment Pressing data storage and traceability

Condition: Used

Weight:   350.00

Depth:   35.00

Length:   48.00

Width:   48.00

SKU:   19166 D20.8A
