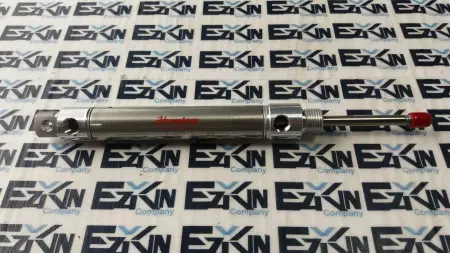

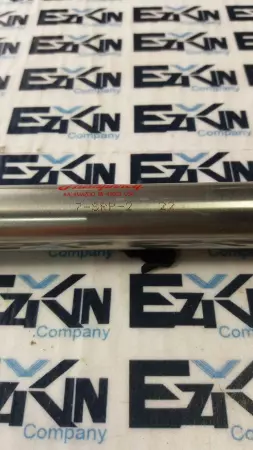

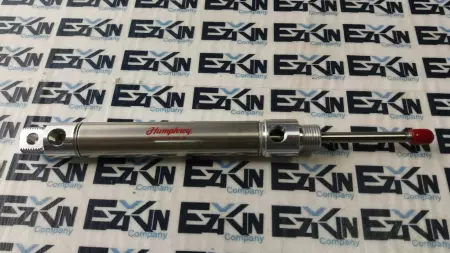

Humphrey 7-SRP-2 22 Pneumatic Cylinder, Round Body, 3/4" Bore 2" Stroke

The Humphrey 7-SRP-2 22 is a compact, round body pneumatic cylinder designed for reliable actuation in a variety of automation and industrial applications. With a 3/4" bore and robust construction, it is suited for applications requiring consistent performance in limited spaces.

Cylinder Type: Single-acting, spring return
Body Style: Round
Bore Size: 3/4 inch
Stroke Length: 2 inches
Mounting Style: Nose Mount
Port Size: 10-32 UNF
Rod Diameter: 0.312 inch
Rod Thread: 10-32 UNF male
Maximum Pressure: 100 psi (air)
Temperature Range: -20°F to 200°F (-29°C to 93°C)
Body Material: Aluminum
Rod Material: Stainless steel
Seal Material: Buna-N
Lubrication: Pre-lubricated, maintenance-free
End Caps: Aluminum with clear anodized finish
Spring: Internal return spring for retraction Please review pictures carefully and let us know if you have any questions!
