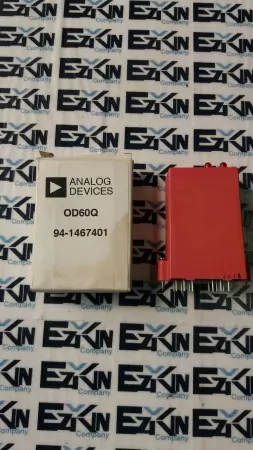

Analog Devices OD6OQ Quad Module Relay 4-Channel Output 3-60VDC 3Amp

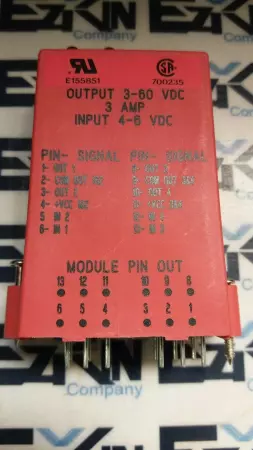

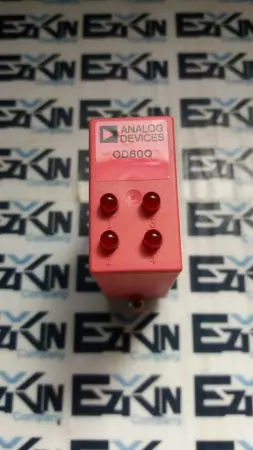

The OD6OQ is a 4-channel digital output relay module designed for industrial I/O systems, offering optically isolated control with robust DC switching capabilities in compact form. Model: OD6OQ (Quad Output Module) Channels: 4 independent outputs Output Voltage Range: 3–60 VDC Max Output Current: 3 A per channel Input Control Voltage: 4–16 VDC Isolation: Optical isolation between input and output Control Logic: TTL or CMOS compatible (active high) Response Time: Typically <1 ms Status Indicators: LED per channel (visible on housing for each output) Pin Configuration: • 1–4: Channel Inputs (1IN to 4IN) • 5–8: Outputs (1+ to 4+) • 9–12: Outputs (1– to 4–) Module Output Type: Solid-state relay (sink/source capability depends on circuit design) Mounting: DIN rail or panel mount via socket base Certifications: UL, CSA, CE recognized components Housing: Red molded plastic, labeled pinout and specifications on face Application: PLCs, automation control panels, motor controllers, process interface modules Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.40

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   1998 4.S8.10.5
