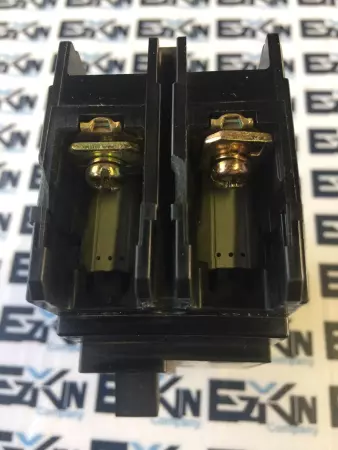

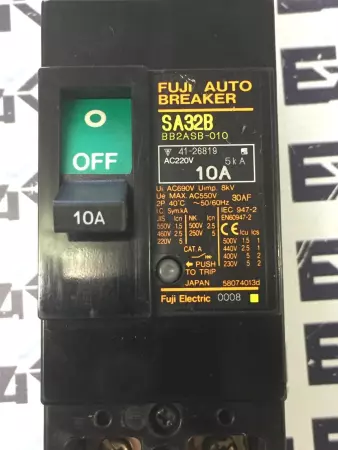

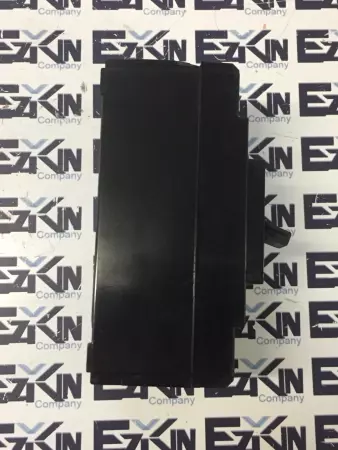

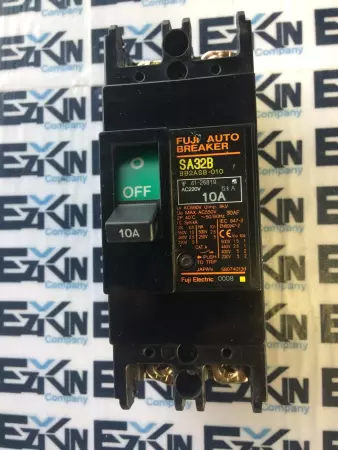

Fuji SA32B 2-Pole Circuit Breaker, 10A 220VAC

Fuji Electric SA32B is a compact molded case circuit breaker (MCCB) designed for low-voltage protection of electrical circuits in industrial and commercial applications. Product Name: Molded Case Circuit Breaker (MCCB) Model Number: SA32B (BB2ASB-010) Rated Current (In): 10 A Number of Poles: 2P Rated Voltage (Ue): AC220V Rated Frequency: 50/60 Hz Rated Frame Current (AF): 30AF Rated Insulation Voltage (Ui): AC690V Rated Operational Voltage (Ue Max): AC550V Impulse Withstand Voltage (Uimp): 8 kV Utilization Category: A Interrupting Capacity (Icn): AC220V: 5 kA AC460V: 2.5 kA AC550V: 1.5 kA IEC 60947-2 (AC230V): 5 kA EN 60947-2 (AC230V): 5 kA Trip Type: Thermal-magnetic Standards: IEC 947-2, EN 60947-2 Push-to-Trip Function: Yes Mounting: DIN rail or panel mount Manufacturer: Fuji Electric Country of Origin: Japan Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   1.00

Depth:   4.00

Length:   7.00

Width:   4.00

SKU:   201 4.S9.15.3
