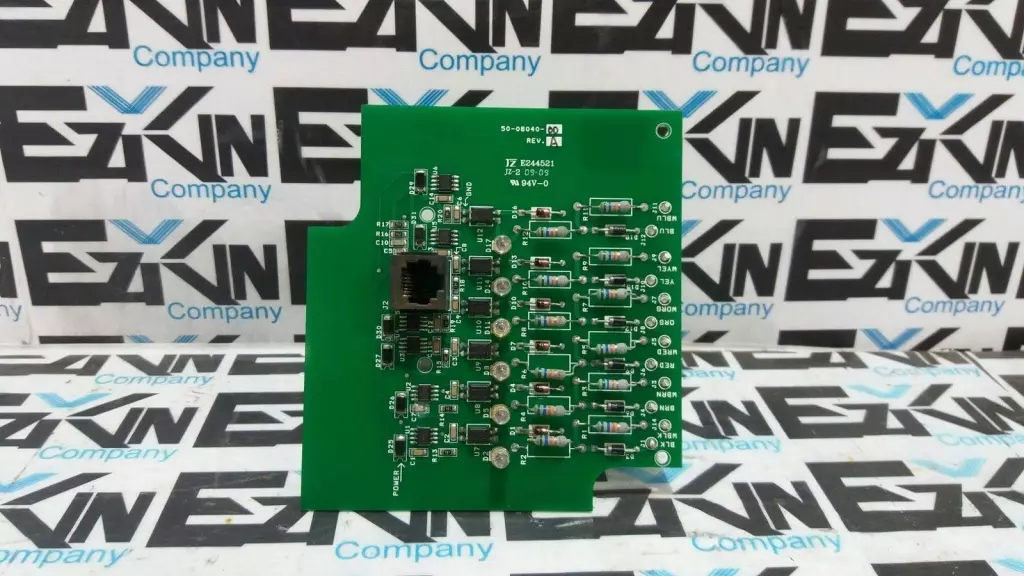

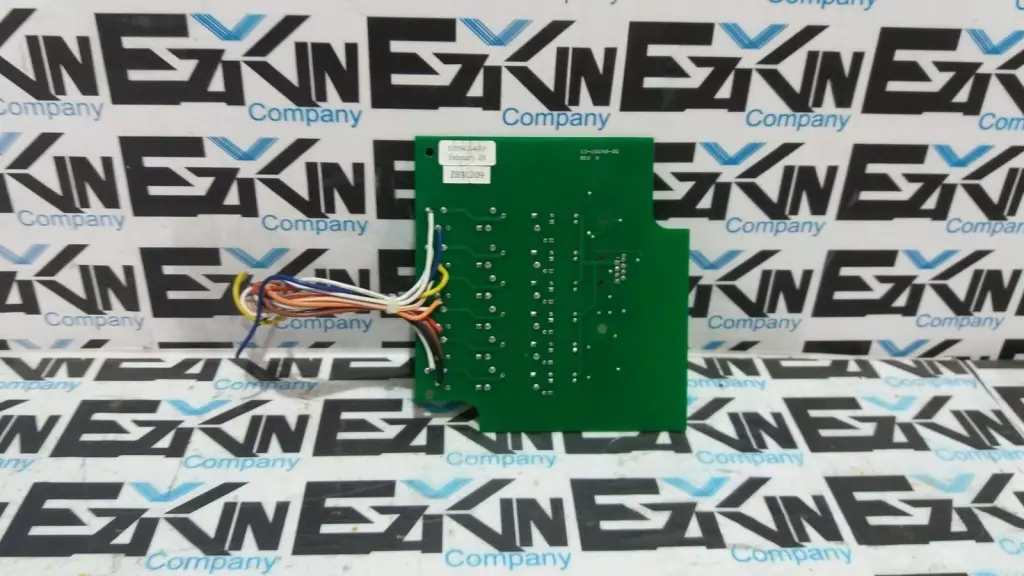

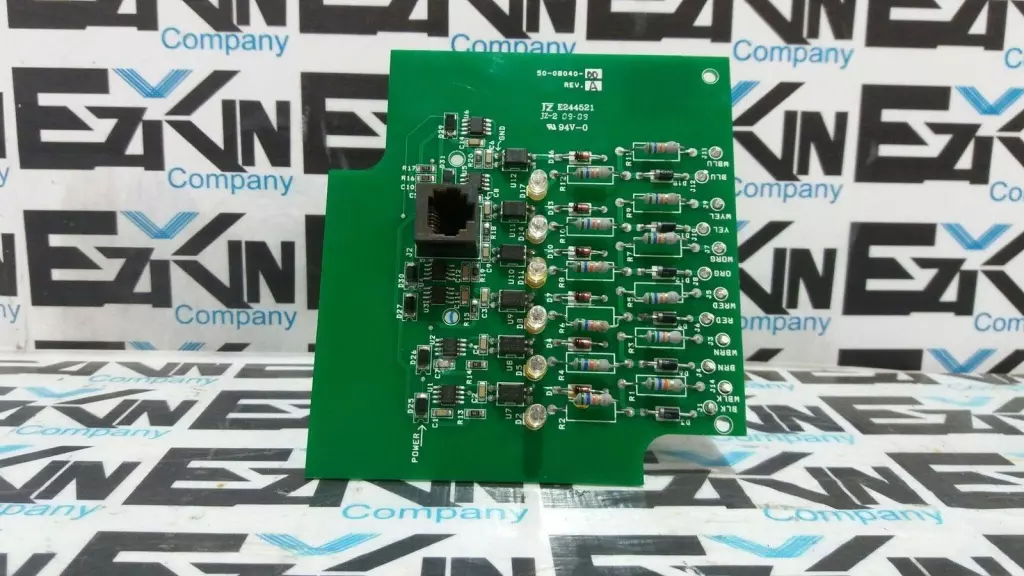

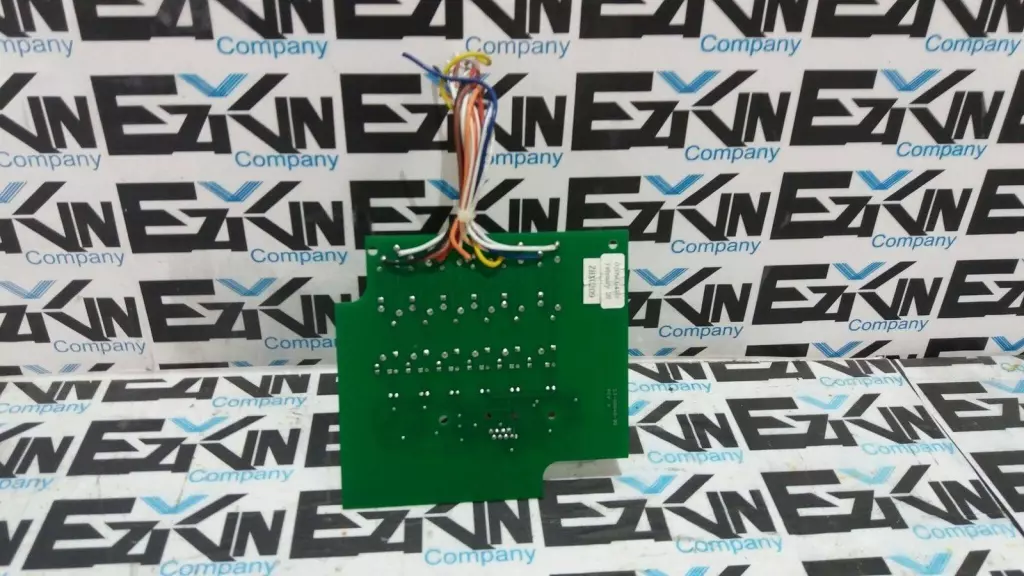

JZ Electric E244521 Circuit Board 50-08040-00 Rev A

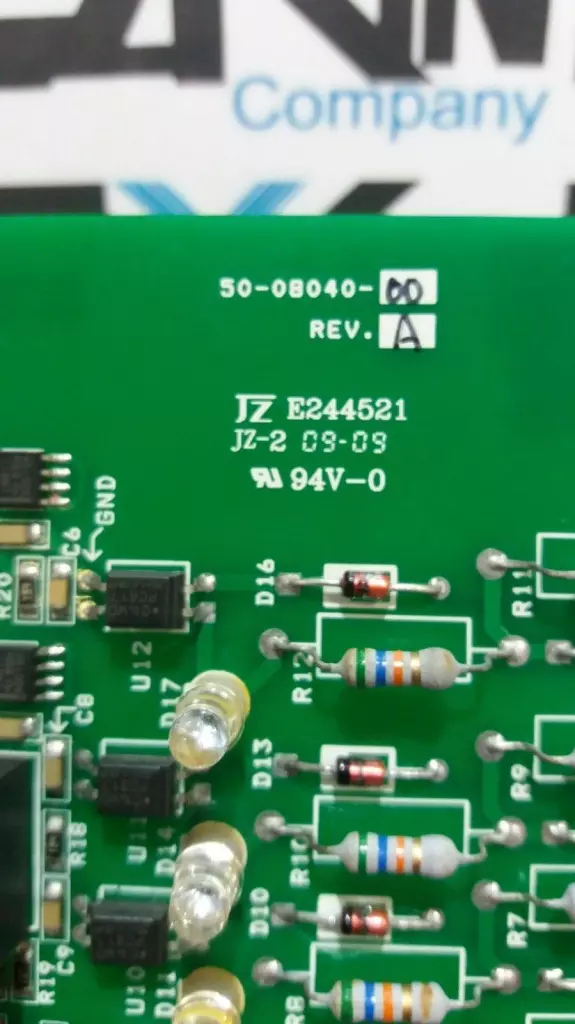

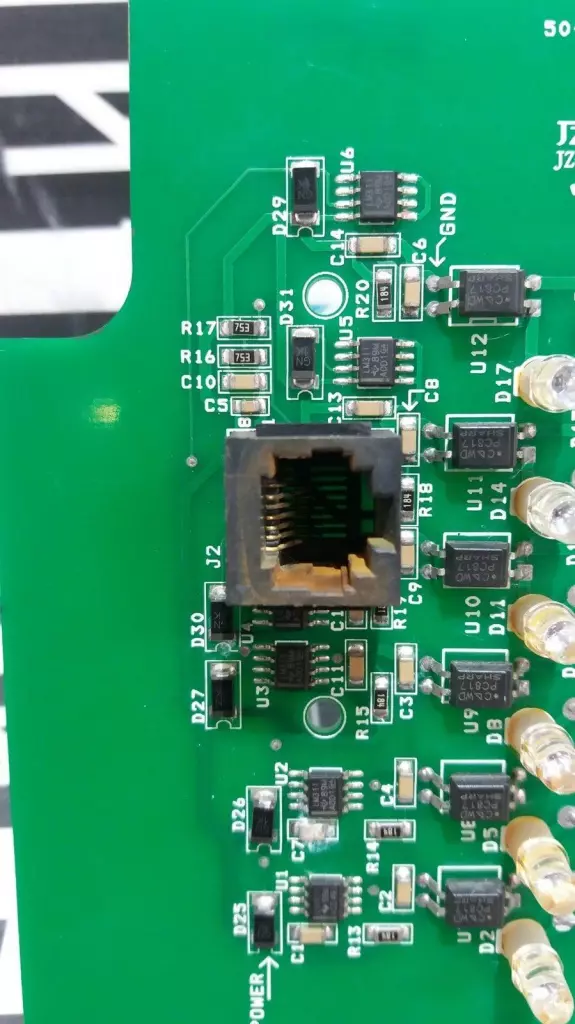

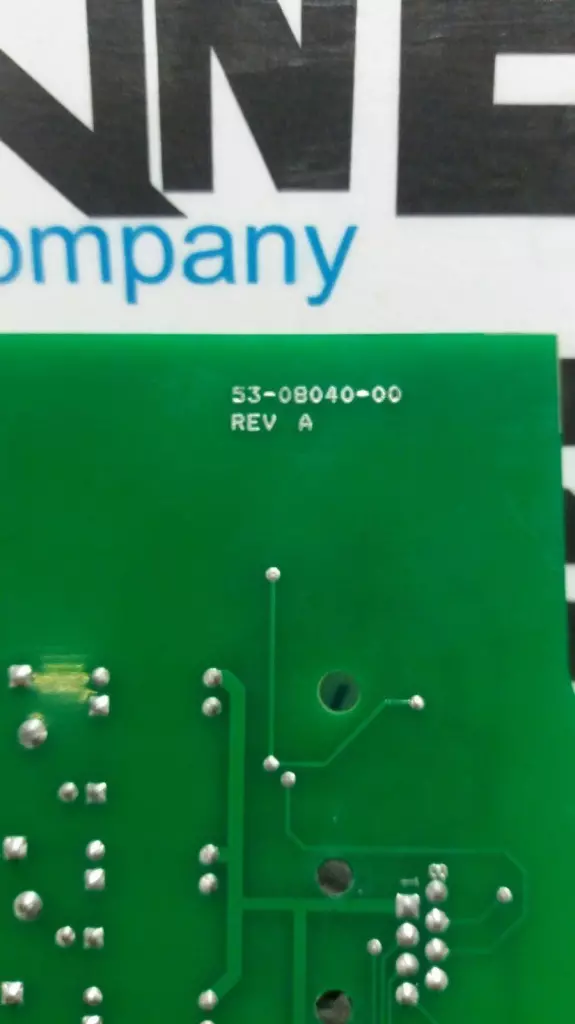

The JZ Electric E244521 (P/N 50-08040-00 Rev A) is a compact PCB assembly designed for signal interfacing or LED status indication, featuring an RJ45 input and multiple transistor/diode-resistor controlled channels. Part Number: 50-08040-00 Assembly Code: E244521 Revision: Rev A Manufacturer: JZ Electric (JZ-2 marking) Board Function: Signal distribution, status indication, or low-voltage LED driver Connector: RJ45 input jack (labeled J1, for POWER or signal input) Components: • 8 Transistors (Q1–Q8) • 8 Diodes (D1–D8) • 8 Resistor banks (R1–R16, various values) • Capacitors and voltage regulators (C1, C2, etc.) Status Indicators: Clearly labeled LED/resistor paths for 8 channels Channel Labels: BLU, WHTBLU, GRN, WHTGRN, ORG, WHTORG, BRN, WHTBRN (corresponding to standard Ethernet wiring) PCB Material: FR4 with green soldermask Silkscreen: JZ-2 09-09 marking, RoHS 94V-0 rated Application: Custom control panel modules, LED drivers, communication breakout interface Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.20

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   2025 4.S8.7.1A
