In stock 1 available

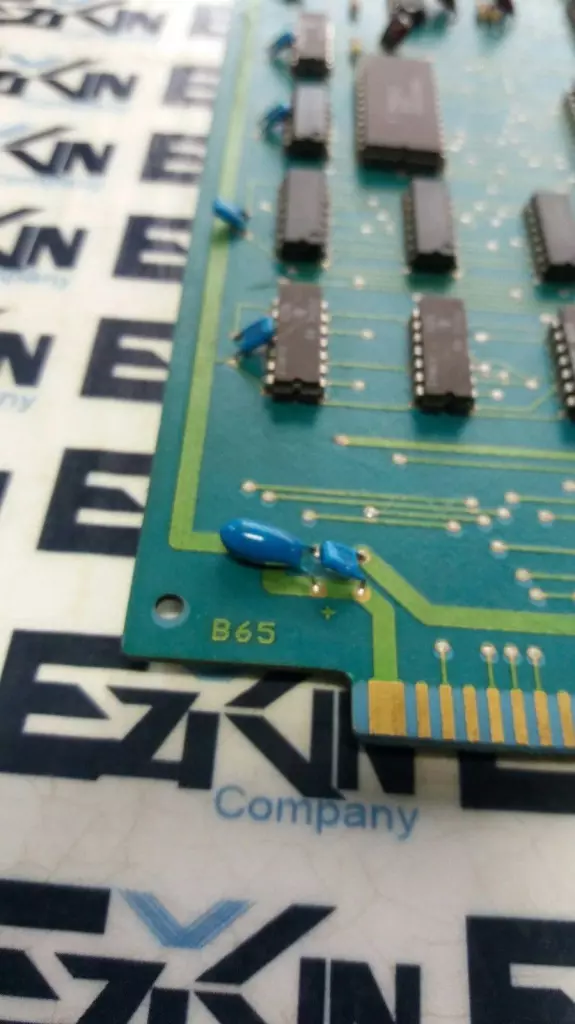

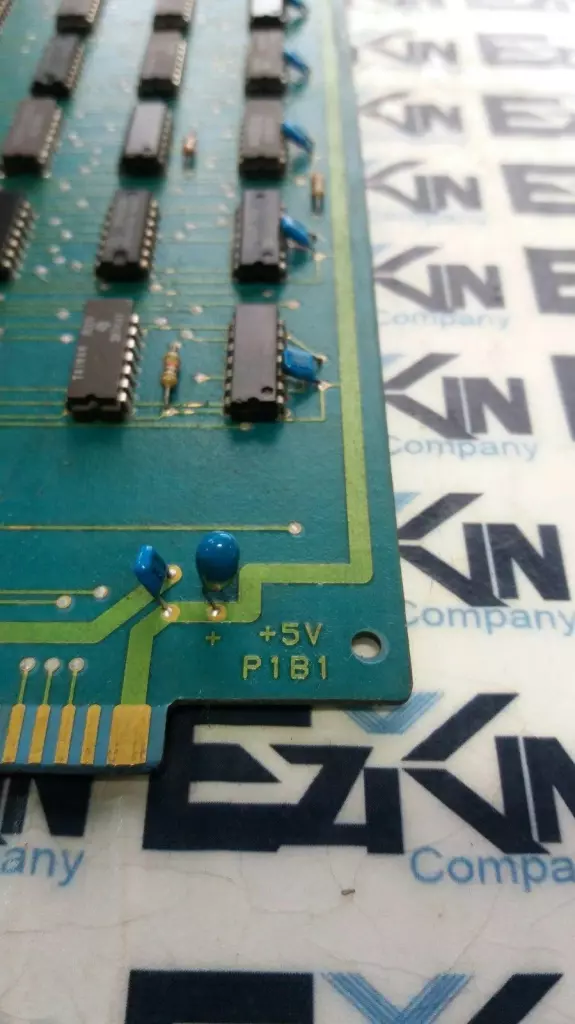

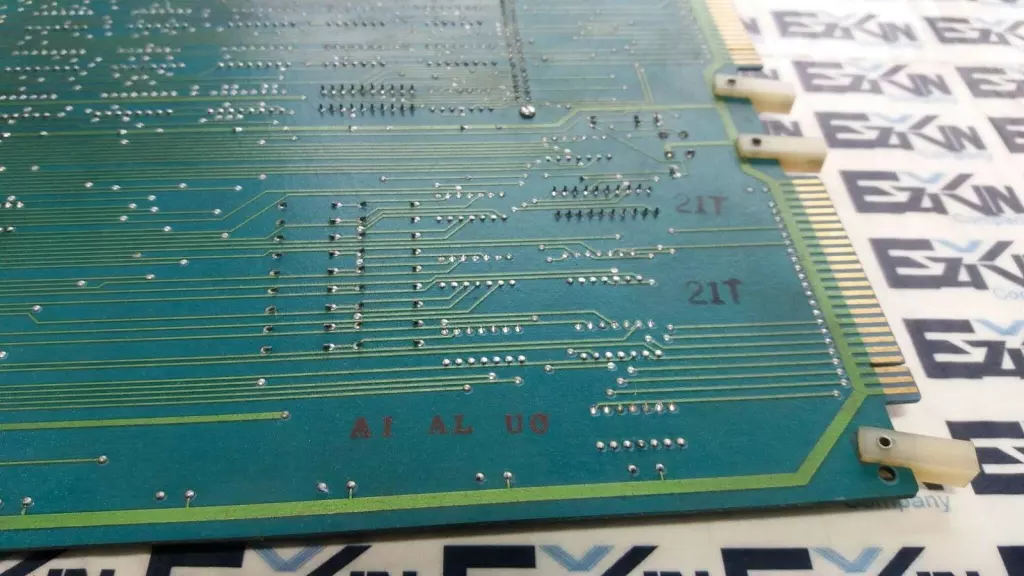

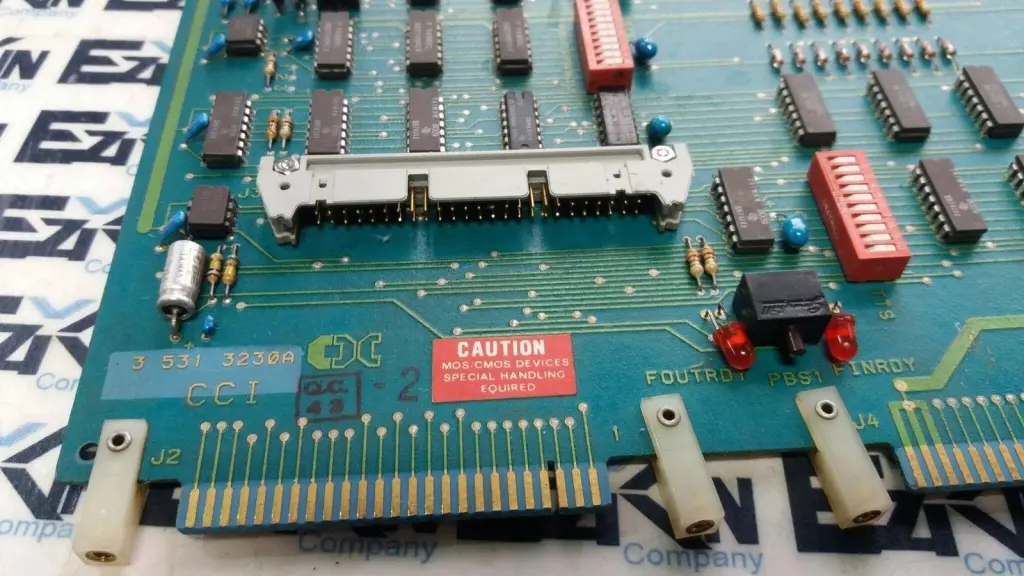

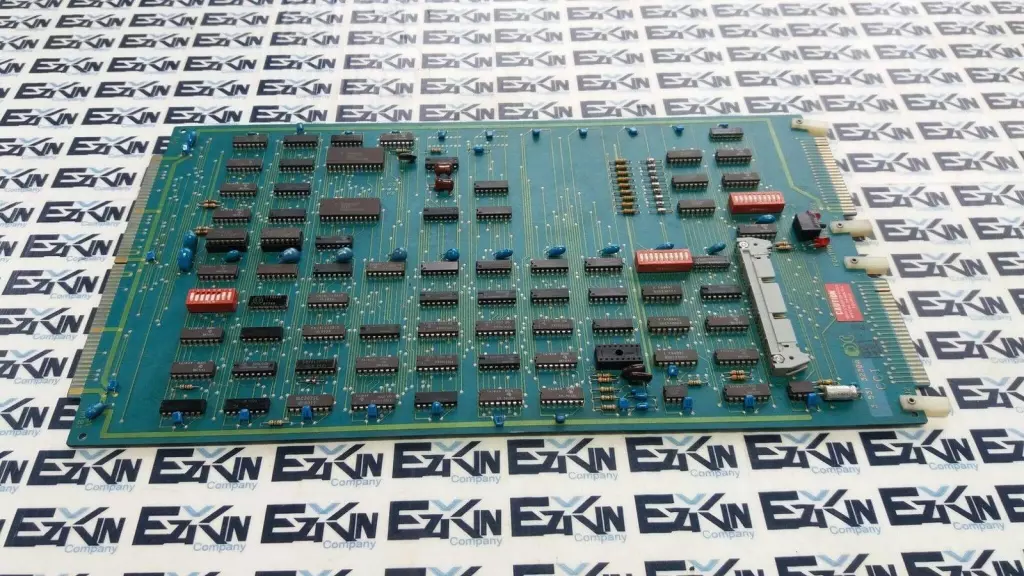

Compact interface/control board designed for legacy Cincinnati Milacron CNC consoles, facilitating communication between console peripherals and the main CNC control rack. Model Number: 3‑531‑3230A Function: Console interface module (handles data I/O between front panel controls and main control logic) Compatibility: Cincinnati Milacron CNC systems (Big Blue, Acramatic, 850/900/950, CMM) Board Type: Multilayer PCB with edge connector for chassis/backplane mounting Connectors: Edge-mounted gold-finger connector; possibly additional ribbon or discrete connectors to console components Input/Output: Supports front-panel switch inputs, console indicators, and peripheral data signals Status Indicators: On-board LEDs for data and communication activity Form Factor: Approx. 150 × 100 mm Weight: Approx. 0.9 lb (0.41 kg) Power: Routed via CNC system backplane slot Construction: Fiberglass PCB with discrete logic ICs and interface components Revision: Commonly found as Rev A (other revisions may exist) Mounting Style: Rack or chassis slide-in via edge connector Typical Use: Converts front-panel console signals to control logic and data channels in CNC control architecture Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.90
Depth: 10.00
Length: 20.00
Width: 10.00
SKU: 2031 4.S8.7.1A
