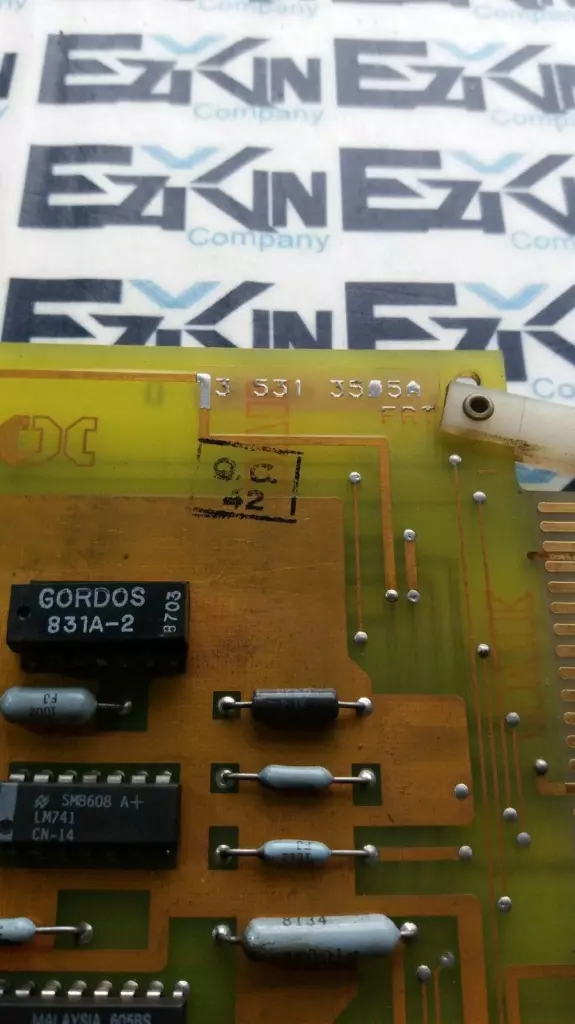

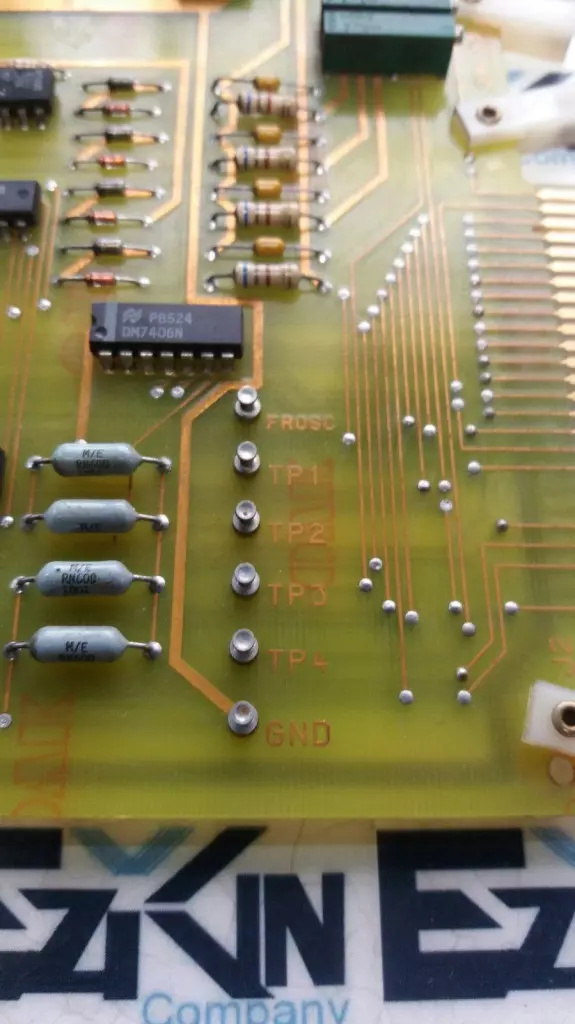

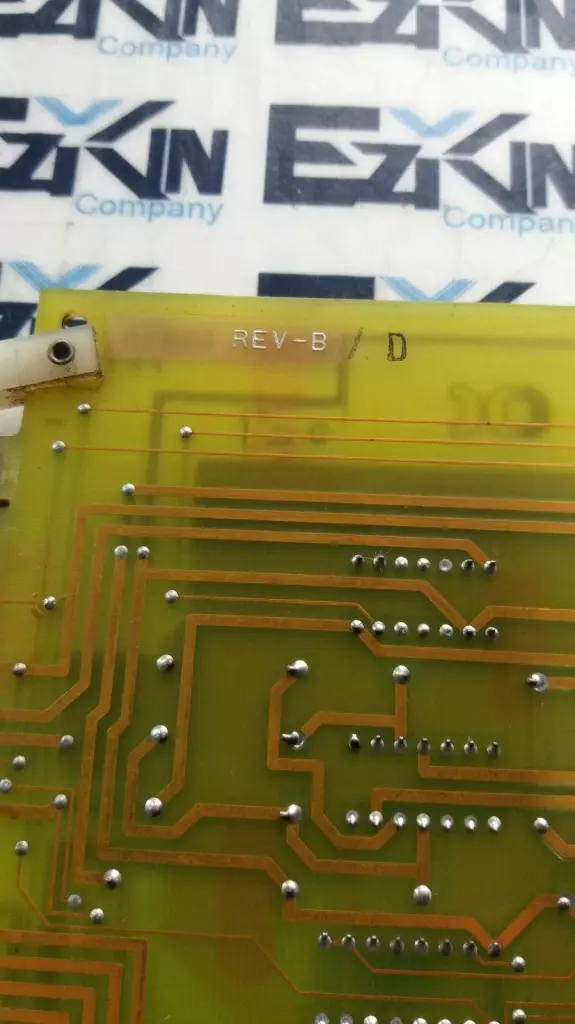

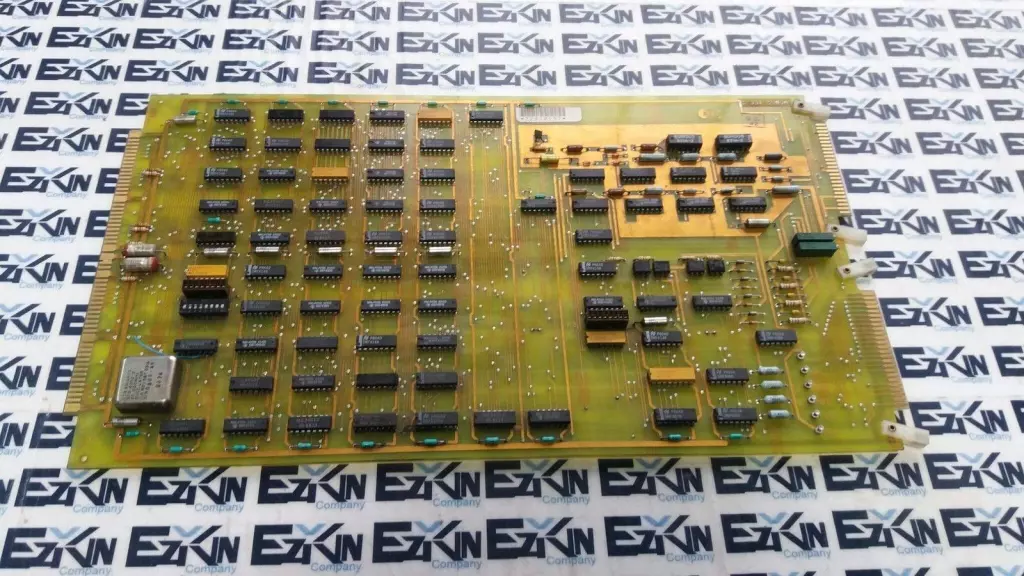

Cincinnati Milacron 3-531-3505A Interface Circuit Board

Multilayer PCB interface module designed for integration into Cincinnati Milacron CNC control racks to facilitate signal routing between control logic and peripheral devices. Model Number: 3‑531‑3505A Function: Control interface/logic routing board Compatibility: Cincinnati Milacron CNC platforms (Acramatic, Big Blue, 850/900/950, CMM) Board Type: Multilayer fiberglass PCB with gold‑finger edge connector Connectors: Backplane edge connector; may include auxiliary ribbon or discrete connectors Signal Routing: Distributes digital I/O/control signals between system modules Status Indicators: On‑board LEDs for diagnostics and signal activity Dimensions: Approx. 150 × 100 mm (standard rack‑mount size) Weight: Approx. 0.9–1.1 lb (0.4–0.5 kg) Mounting: Rack or chassis slot via edge connector Power: Supplied through CNC backplane Construction: Discrete logic ICs, opto‑isolators, traces for signal paths Revision: Commonly Rev A (other revisions may exist) Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.80

Depth:   10.00

Length:   20.00

Width:   10.00

SKU:   2035 4.S8.7.2B
