Cincinnati Milacron 3-531-3628A Circuit Board

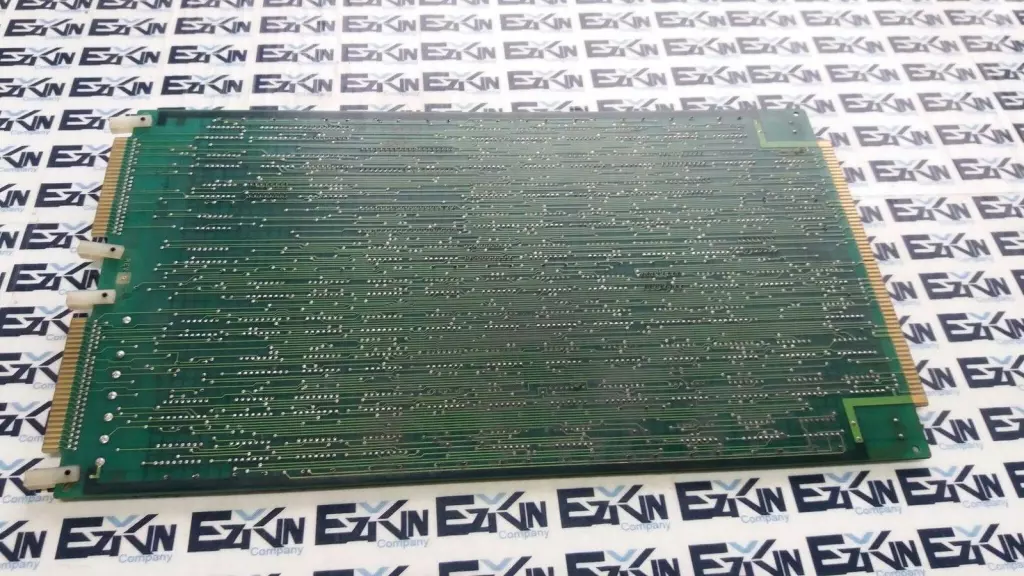

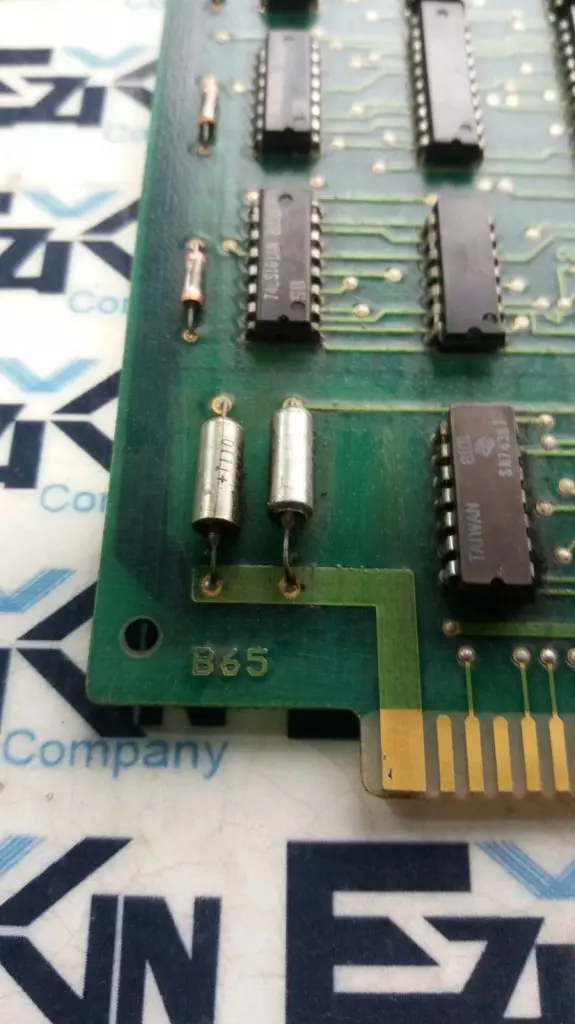

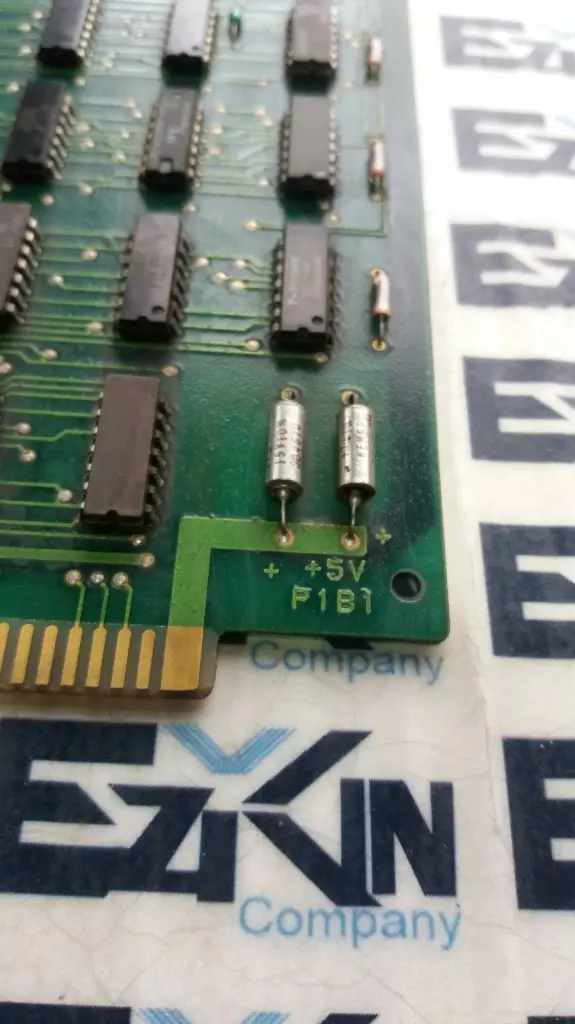

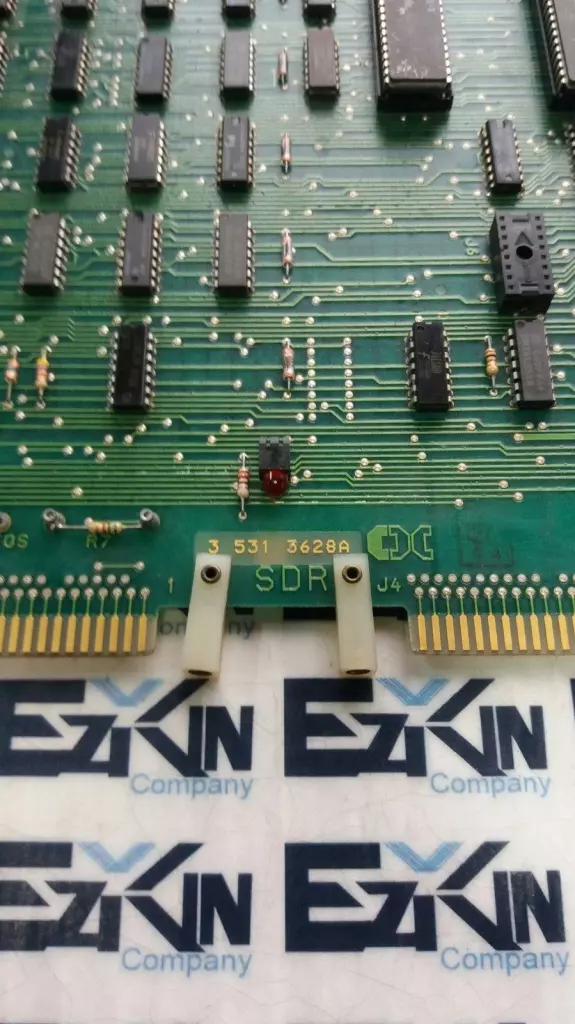

The Cincinnati Milacron 3-531-3628A is an SDR (Slide Driver) circuit board used in Milacron CNC systems. It functions as a motion control module responsible for executing drive commands to axis motors in precision machinery. Model Number: 3-531-3628A Function: Slide Driver (SDR) circuit board for motion control Compatibility: Cincinnati Milacron CNC platforms (Acramatic 850/900/950, Big Blue, CMM series) Board Type: Multilayer PCB with motion control logic Edge Connector: Gold-finger style for backplane mounting Inputs/Outputs: Interfaces with CNC control logic and axis drive hardware Status Indicators: On-board LEDs for diagnostics and operational state Dimensions: Approx. 150 mm × 100 mm Weight: Approx. 1 lb (0.45 kg) Power Source: Supplied via CNC backplane Construction: FR4 board with ICs, driver components, and support circuitry Mounting: Chassis-mounted via backplane slot Revision: Commonly Rev A Application: Controls linear or rotary motion axes in automated CNC environments Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.90

Depth:   10.00

Length:   20.00

Width:   10.00

SKU:   2048 4.S8.7.2B
