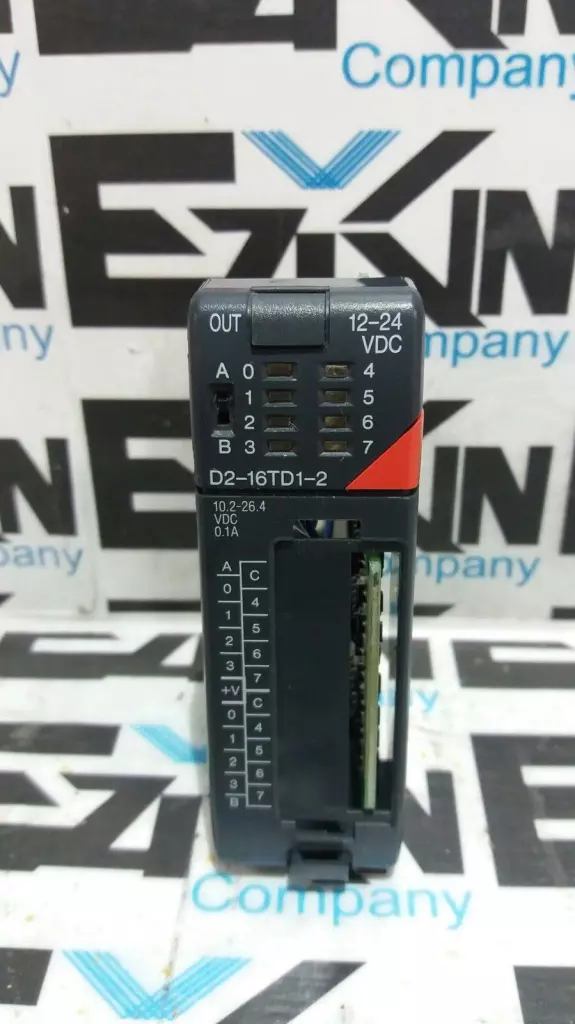

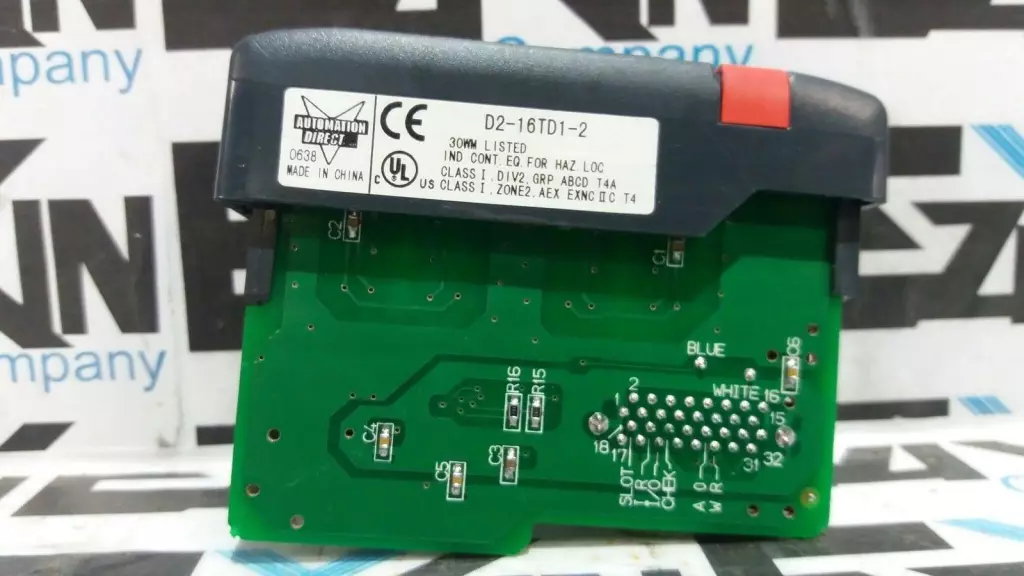

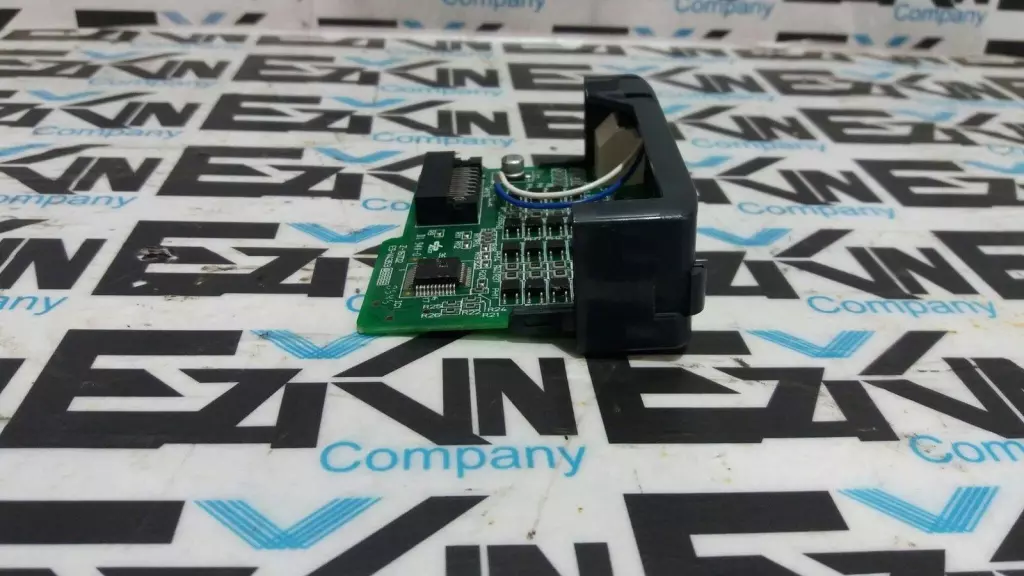

AutomationDirect D2-16TD1-2 Output Module, 16-Point 12-24VDC

The D2-16TD1-2 is a discrete sinking output module for use with DL205 series PLCs. It provides 16 independently switched 12–24 VDC outputs for controlling field devices in industrial automation systems. Model: D2-16TD1-2 Module Type: Discrete Output Number of Points: 16 Output Voltage: 12–24 VDC Output Type: Sinking Output Current: 0.1 A per point Commons: 1 shared common Points per Common: 16 Isolation: Optical isolation per point Field Wiring Terminals: Removable terminal block Response Time: <1 ms (ON/OFF) Mounting: DL205 I/O slot (DIN rail or panel via base unit) Indicators: Status LED per output point Application: Driving relays, solenoids, lamps, and other DC loads in automation panels Protection: Short circuit protection not included—external fusing recommended Temperature Range: 0°C to 60°C (32°F to 140°F) Dimensions: Standard DL205 module size Certifications: UL, CE, RoHS compliant Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.10

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   2054 4.S10.1.4L
