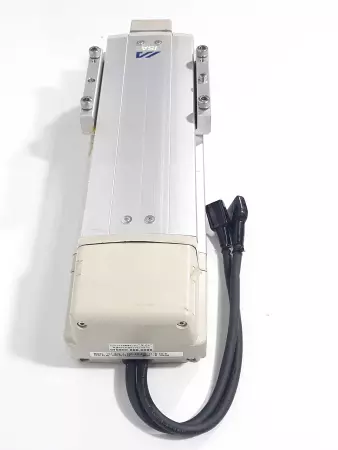

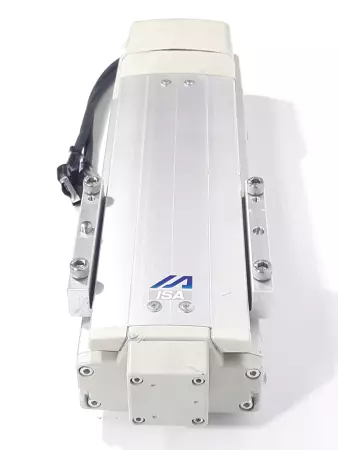

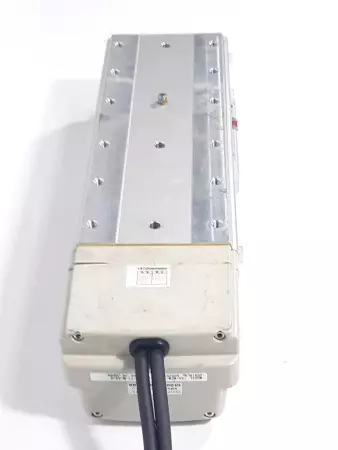

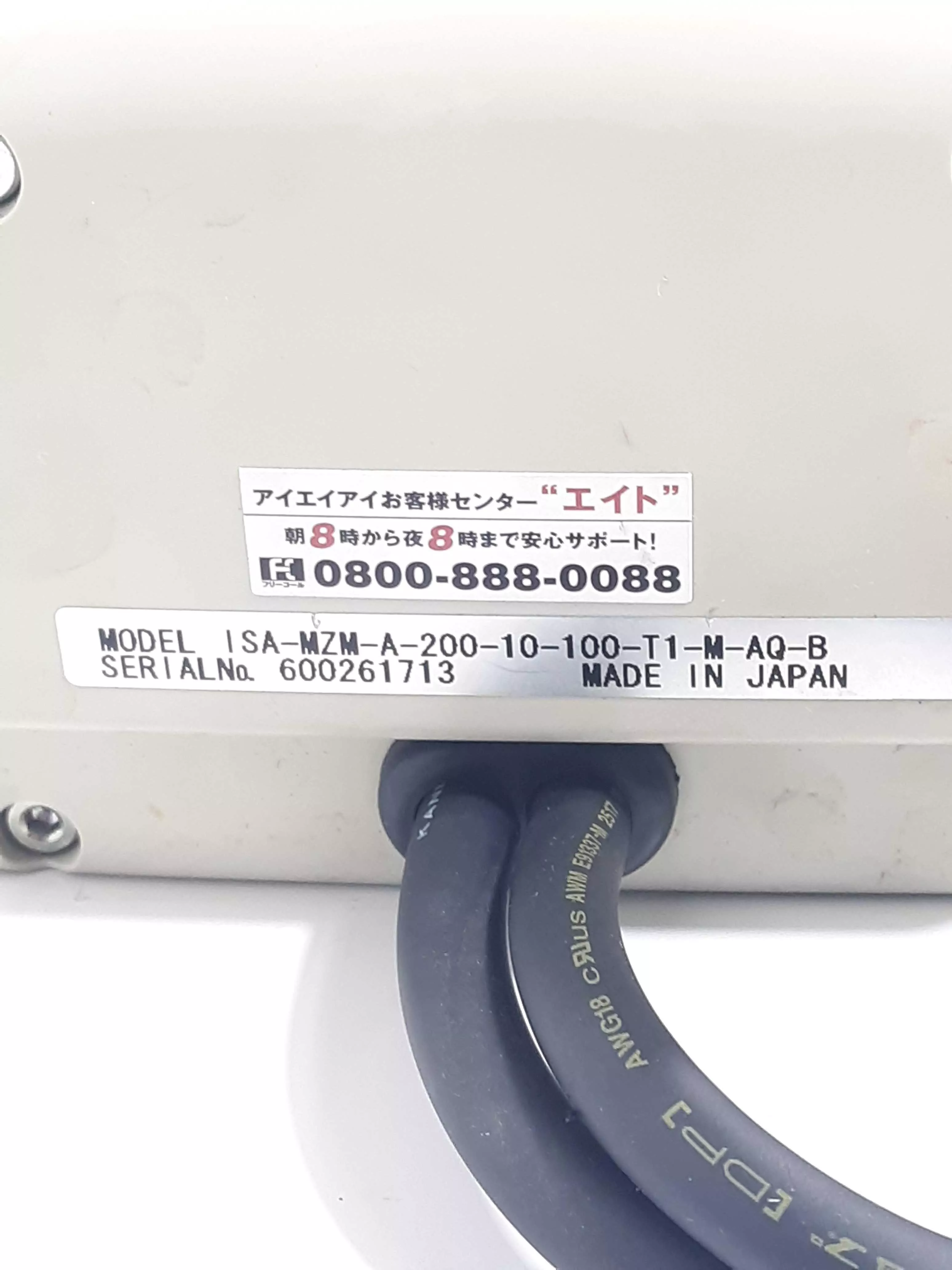

The IAI ISA-MZM-A-200-10-100-T1-M-AQ-B is a medium-sized, vertical-axis linear actuator designed for precise positioning applications. It features a long slider type with an actuator width of 120 mm and incorporates a 200W motor. Key Features: Motor Output: Equipped with a 200W motor, providing robust performance for various automation tasks. Stroke Length: Offers a stroke length of 100 mm, suitable for applications requiring moderate travel distances. Lead Screw: Utilizes a ball screw with a 10 mm lead, ensuring precise and smooth linear motion. Encoder Type: Features an absolute encoder, allowing for accurate position feedback without the need for homing routines after power loss. Brake Mechanism: Comes standard with a dry, single-plate, non-excitation type electromagnetic brake, enhancing safety by holding the position when power is off. AQ Seal Option: Includes the AQ seal option, providing enhanced protection against dust and contaminants, thereby extending the actuator's lifespan. Performance Specifications: Positioning Repeatability: Achieves a positioning repeatability of ±0.02 mm, ensuring high precision in operations. Maximum Speed: Capable of reaching speeds up to 500 mm/s, facilitating efficient cycle times in automated processes. Rated Thrust: Delivers a rated thrust of 340.1 N, suitable for handling moderate loads in vertical orientations. Environmental and Physical Specifications: Operating Temperature Range: Designed to operate within a temperature range of 0 to 40°C, accommodating typical industrial environments. Base Material: Constructed with aluminum and treated with white alumite, offering a balance of strength and lightweight properties. Protection Rating: With the AQ seal option, the actuator gains additional protection against environmental contaminants, enhancing durability. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 15.00
Depth: 10.00
Length: 16.00
Width: 24.00
SKU: 20727 4.S9.1.3
