In stock 1 available

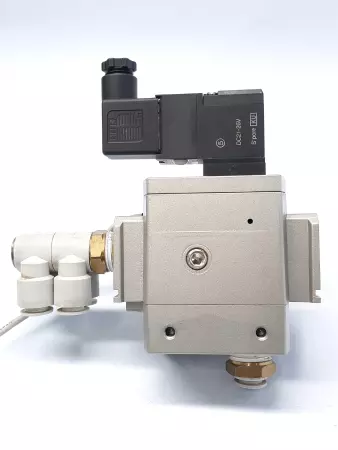

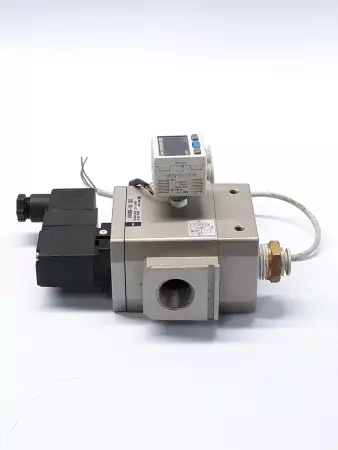

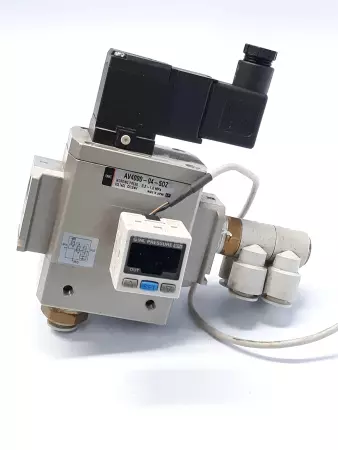

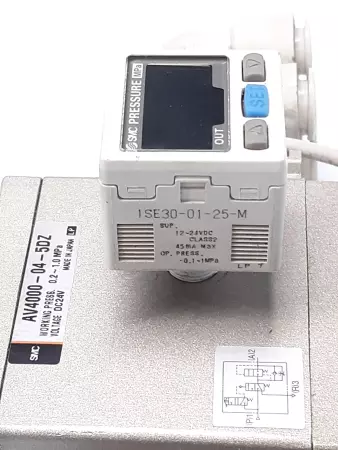

Electrically actuated soft-start valve designed to gradually pressurize pneumatic systems, preventing sudden surges and ensuring safe startup. Includes integrated digital pressure switch for precise monitoring and control. Technical Specifications Model: AV4000-04-5DZ Manufacturer: SMC Corporation Country of Manufacture: Made in Japan Type: Soft Start-Up Valve (Electrically Operated) Series: AV Port Size: 1/2" Rc thread Voltage: 24 VDC (solenoid coil) Operating Pressure Range: 0.05 to 0.7 MPa Max Operating Pressure: 0.7 MPa Proof Pressure: 1.05 MPa Flow Capacity: Approx. 3,000 L/min (at 0.5 MPa) Ambient and Fluid Temperature: -10°C to 50°C (no freezing) Body Material: Aluminum alloy Mounting: Bracket or direct mount Weight: Approx. 1.2 kg Dimensions (HxWxD): Approx. 150 mm x 90 mm x 70 mm Features: Gradual pressurization for system safety, integrated exhaust function Digital Pressure Switch (ISE30-01-25-M) Type: Electronic pressure monitoring Display: LCD digital display Pressure Range: -0.1 to 1.0 MPa Output: NPN/PNP switch output Power Supply: 12–24 VDC Body Material: Resin and aluminum Function: Real-time pressure feedback for system control Applications: Pneumatic circuits, machine safety systems, air preparation units
Condition: Used
Weight: 3.00
Depth: 4.00
Length: 8.00
Width: 10.00
SKU: 20860 4.S9.5.5
