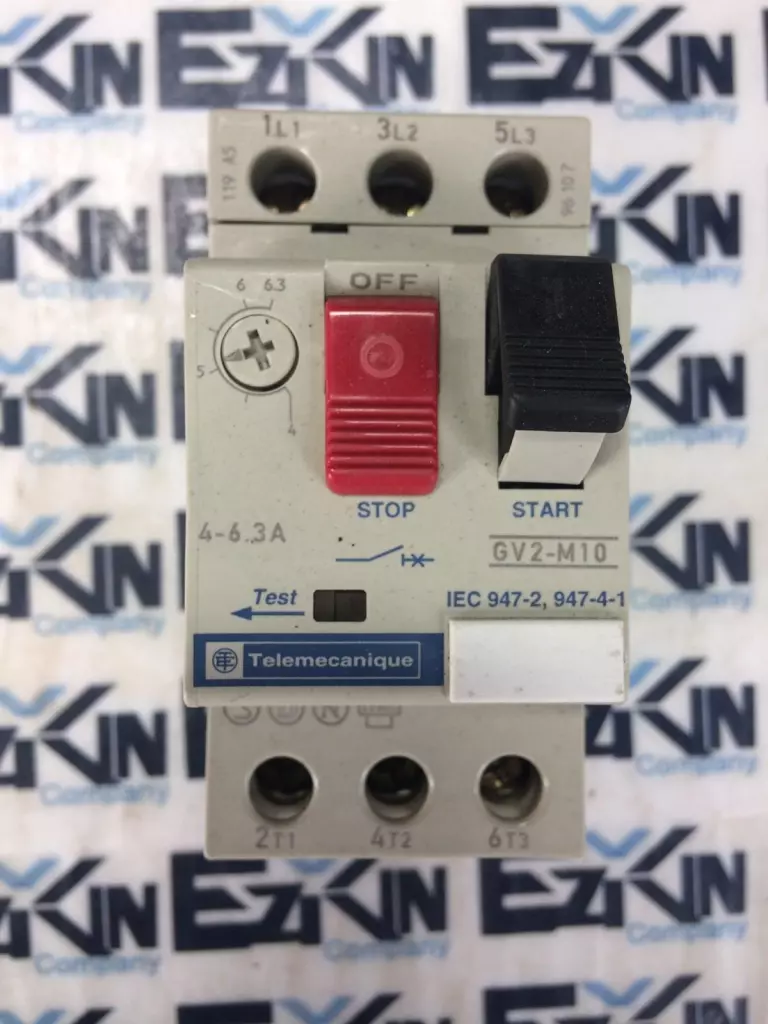

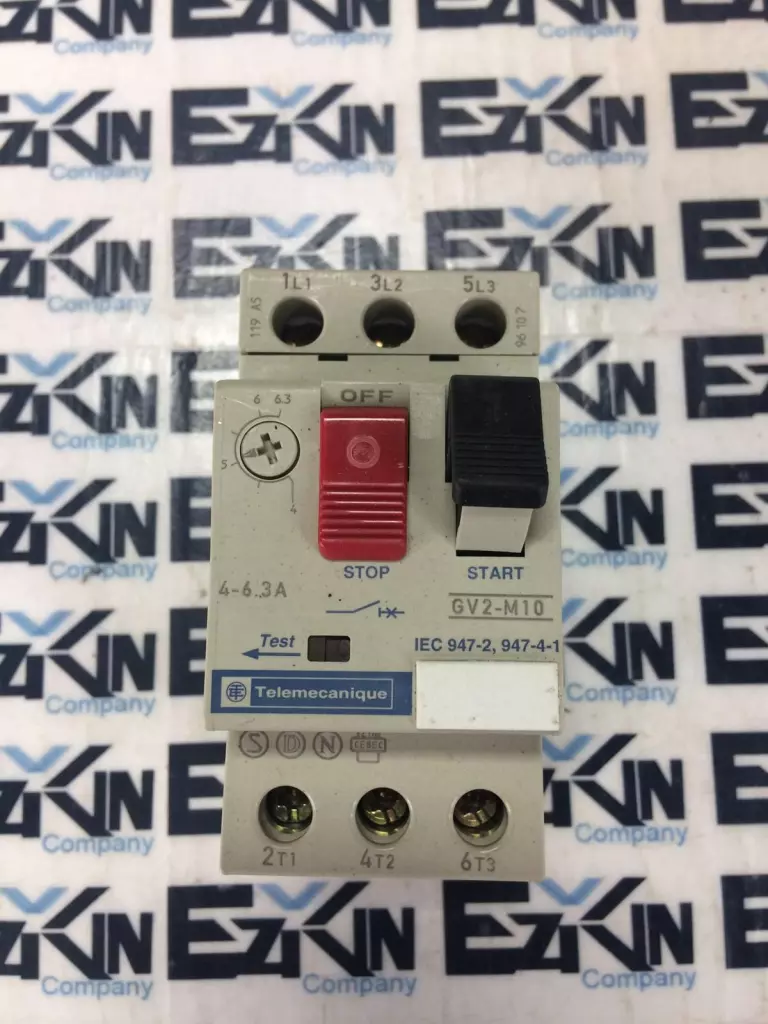

Telemecanique GV2-M10 Manual Motor Starter-Protector 4-6.3A

Telemecanique GV2-M10 is a manual motor starter and protector rated for 4–6.3 A. It integrates thermal and magnetic trip mechanisms, providing reliable overload and short-circuit protection in motor control applications up to 690 VAC. Voltage Rating (Ue): 690 VAC 50/60 Hz Current Setting Range: 4–6.3 A Impulse Withstand Voltage (Uimp): 6 kV Utilization Category: AC-3 Short-Circuit Rating: 50 kA at 240 VAC, 50 kA at 480 VAC, 30 kA at 600 VAC Horsepower Rating (1ph): 1/8 HP at 115 VAC, 1/4 HP at 200 VAC, 1/3 HP at 230 VAC Horsepower Rating (3ph): 1/2 HP at 115 VAC, 3/4 HP at 200 VAC, 1 HP at 230 VAC, 2 HP at 460 VAC, 3 HP at 575 VAC Trip Class: Class 10 Protection Type: Thermal overload and magnetic short-circuit Mounting: DIN rail or panel mount Terminal Type: Screw clamp Enclosure Rating: IP20 Standards: IEC 60947-2, IEC 60947-4-1, UL, CSA Country of Origin: France Manufacturer: Telemecanique (Schneider Electric) Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.50

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   2133 4.S1.8.2
