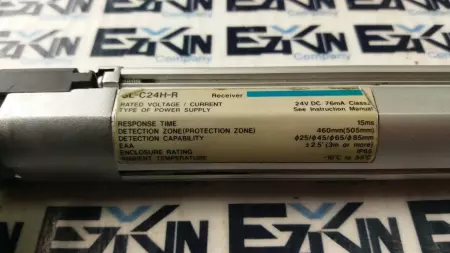

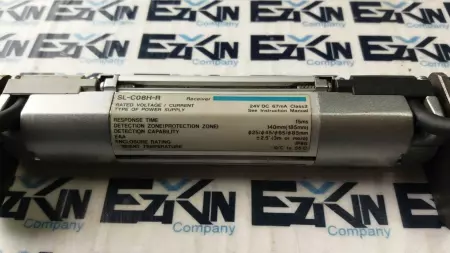

Keyence SL-C24H-R/SL-C08H-R Safety Light Curtain Sensor Receiver

Keyence SL-C24H-R and SL-C08H-R are safety light curtain receiver modules used for machine safety guarding. These models are part of the SL-C series, designed for detecting personnel intrusion in hazardous areas with slim-profile, high-speed optical detection. Model: SL-C24H-R / SL-C08H-R Type: Safety light curtain (receiver unit) Detection Capability: Finger/palm protection depending on beam pitch Protective Height: SL-C24H-R: 570 mm (24 optical axes), SL-C08H-R: 190 mm (8 optical axes) Operating Range: 0.1 m to 7 m (typical) Response Time: 10 ms (depending on configuration) Beam Pitch: Typically 25 mm Light Source: Infrared LED Power Supply: 24 VDC ±10 % Current Consumption: ~150 mA max Output Type: NPN/PNP selectable (via controller interface) Enclosure Rating: IP65 Operating Temperature: 0 to +55 °C Mounting: Side or back bracket with M4 screws Housing: Slim aluminum profile with polycarbonate window Status Indicators: Alignment, beam status, error (multi-LED display) Compliance: CE, UL, TÜV (EN/IEC 61496-1/-2 Category 4, PLe) Application: Industrial safety interlocking, operator protection on presses, pick-and-place systems, robotic cells Manufacturer: Keyence Corporation, Japan Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   20.00

Width:   10.00

SKU:   2144 4.S9.1.1
