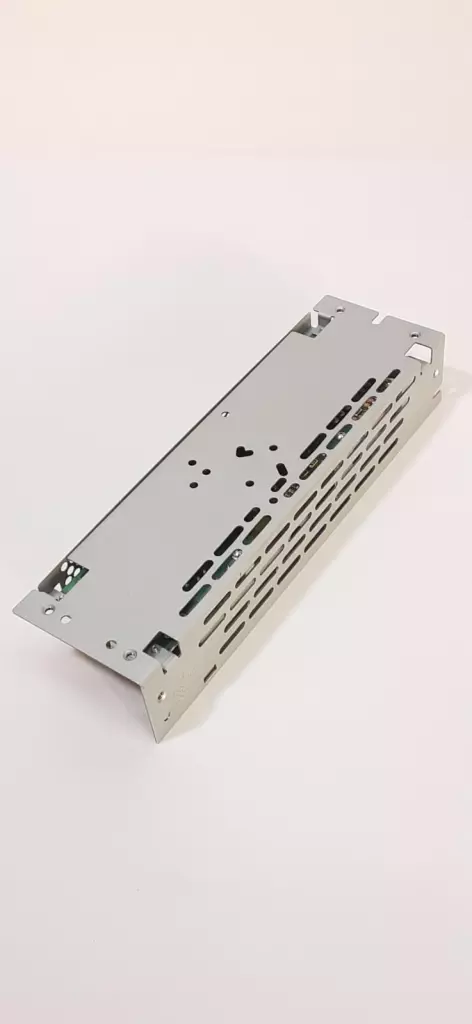

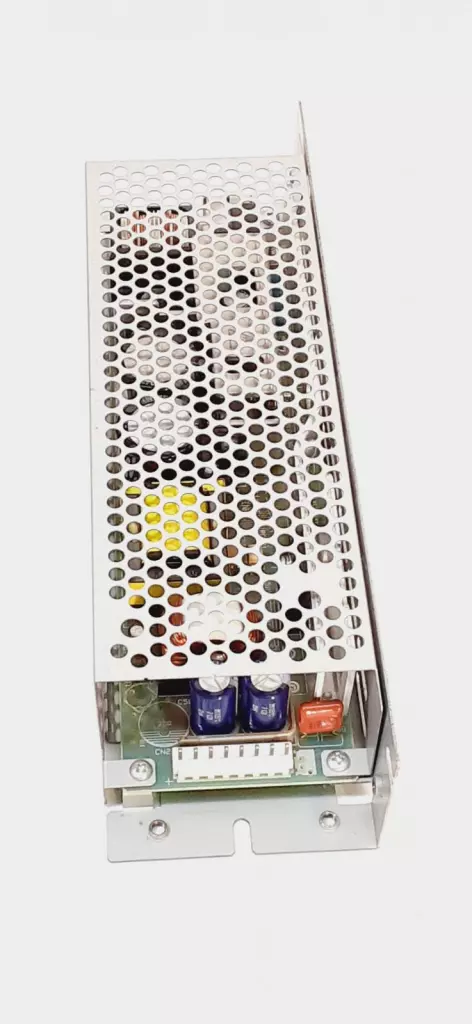

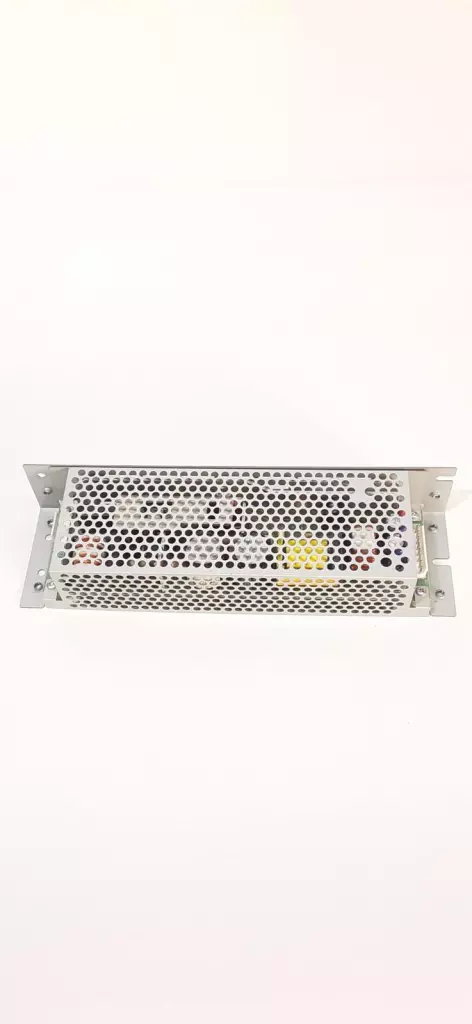

Cosel LEA100F Power Supply Unit AC-DC Converter 24V 100W

Open-frame AC-DC converter designed for industrial and embedded applications with wide input voltage range and single 24V output. Model: LEA100F-12 Form Factor: Open Frame Input Voltage Range: 85 ~ 264 VAC Input Frequency: 47 ~ 63 Hz Output Voltage: 24 V DC Output Current: 8.5 A Output Power: 102 W Efficiency: Typically ~82% Hold-up Time: 20 ms min. at 100 VAC Operating Temperature: -10°C to +70°C (with derating) Cooling: Convection cooled Protection: Overcurrent, Overvoltage, Thermal protection Safety Approvals: UL60950-1, EN60950-1 Isolation: Input to Output – 3.0 kVAC, Input to FG – 2.0 kVAC Dimensions: 159 × 77 × 36.5 mm Weight: Approx. 320 g Please review pictures carefully and let us know if you have any questions!
