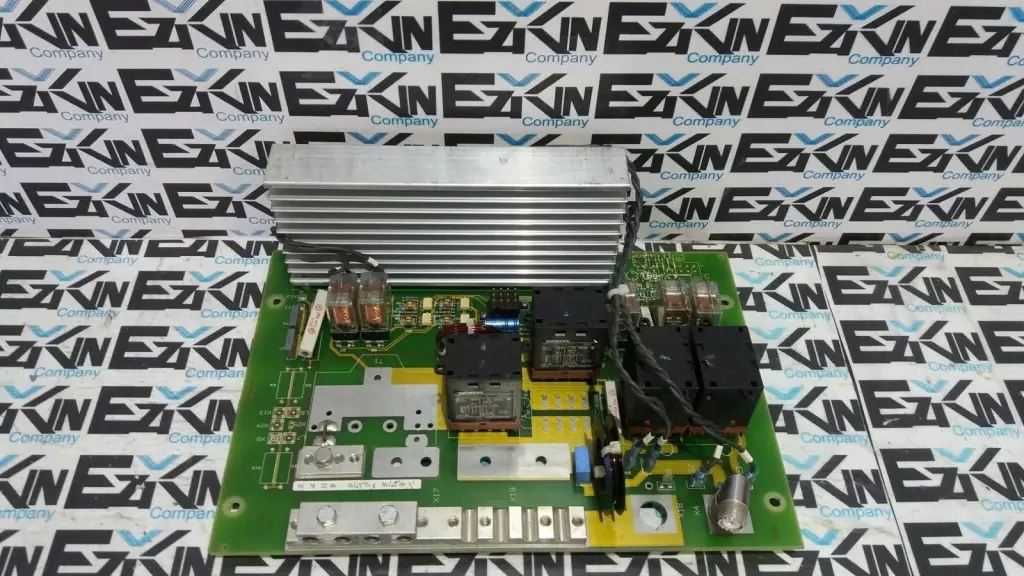

Charmilles CT8132640 Robofil Circuit Board

The Charmilles CT8132640 is a specialized circuit board used in Robofil series EDM (Electrical Discharge Machining) machines. It plays a critical role in the control and operation of the wire EDM system, supporting precise electrical pulse generation and system communication. Product Type: EDM system circuit board Model Number: CT8132640 Compatible Machines: Charmilles Robofil series (exact models vary) Function: Control and interface circuit for wire EDM processes Input Voltage: Typically powered by internal low-voltage bus (12–24 VDC range depending on system) Board Features: Signal processing, communication interface, and pulse control Mounting: Slot-in PCB for system rack Connectivity: Edge connector or multi-pin header (model dependent) Cooling: Passive via system airflow or heatsink integration Construction: Multilayer PCB with industrial-grade components Application: Electrical control for wire guidance, spark timing, and power modulation Manufacturer: Charmilles Technologies (now GF Machining Solutions) Made in: Switzerland Please review pictures carefully and let us know if you have any questions!
