GE Fanuc IC200MDL740E Output Module 12-24VDC

This is a VersaMax discrete output module designed for industrial control applications. It provides 16 positive logic outputs capable of switching DC loads with flexible voltage and current ratings suitable for various automation tasks.

Module Type: Discrete Output Module
Model Number: IC200MDL740E
Output Type: Positive logic (sourcing)
Number of Outputs: 16 points
Output Voltage Range: 12–24 VDC
Output Current: 0.5 A per point
Output Grouping: Single group of 16 outputs
Maximum Inrush Current: 1 A for 10 ms
Switching Frequency: 100 Hz typical resistive load
Status Indicators: Individual LED for each output
Isolation: 250 VAC continuous between field side and logic side
Environmental Ratings:
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Hazardous Location Certification:
Class I Div. 2 Groups A, B, C, D
ATEX Zone 2 (II 3G Ex nA IIC T4X Gc)
Agency Approvals: UL, CE, CSA
Pilot Duty Rating: 0.5 A at 24 VDC
Manufacturer: GE Fanuc

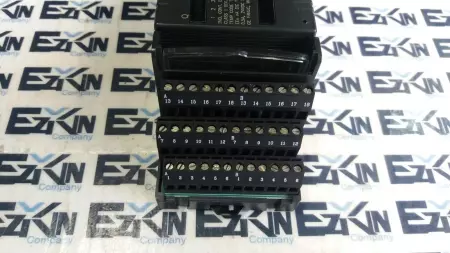

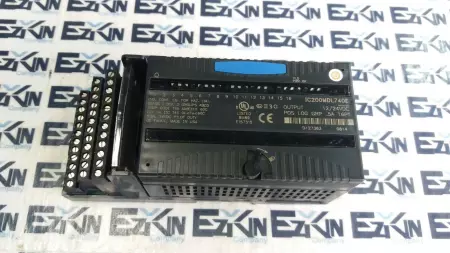

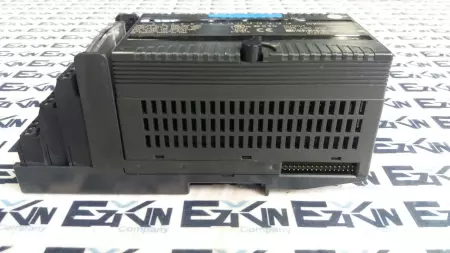

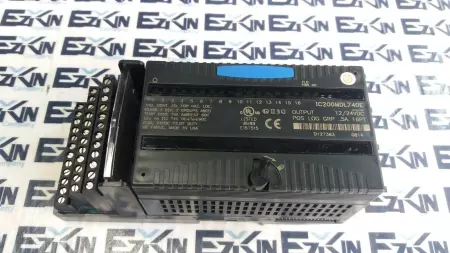

Country of Origin: USA Please review pictures carefully and let us know if you have any questions!
