In stock 2 available

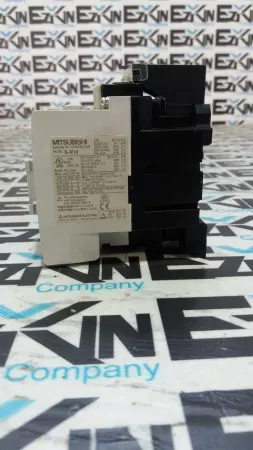

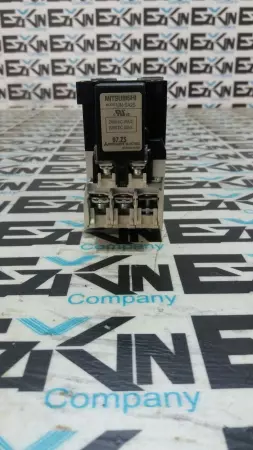

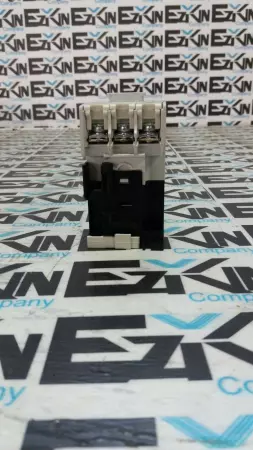

The S-N18 is a compact, general-purpose magnetic contactor from Mitsubishi Electric designed for switching AC or DC motor loads, lighting, and resistive loads in industrial control systems. It features dual-voltage coil options and high reliability for long-term operation. Model: S-N18 Type: Magnetic Contactor Rated Operating Current: 25 A (AC-3 duty) Rated Operating Voltage: 600 VAC max (IEC), 480 VAC (UL) Coil Voltage: AC: 240 V 50/60 Hz DC: 220 V Contact Configuration: 3-pole (3NO main contacts) Auxiliary Contacts: 1NO + 1NC (standard) Rated Power: Up to 7.5 kW (10 HP) at 200–240 VAC Insulation Voltage: 690 V Conventional Thermal Current (Ith): 25 A Electrical Life: ≥1 million operations (AC-3) Mechanical Life: ≥10 million operations Mounting: DIN rail or screw mount Standards: IEC, JIS, UL, CSA certified Dimensions: Approx. 45 mm (W) x 85 mm (H) x 95 mm (D) Application: Motor starters, control panels, HVAC, lighting systems Manufacturer: Mitsubishi Electric Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.60
Depth: 4.00
Length: 7.00
Width: 4.00
SKU: 2295 4.S5.15.3
