In stock 1 available

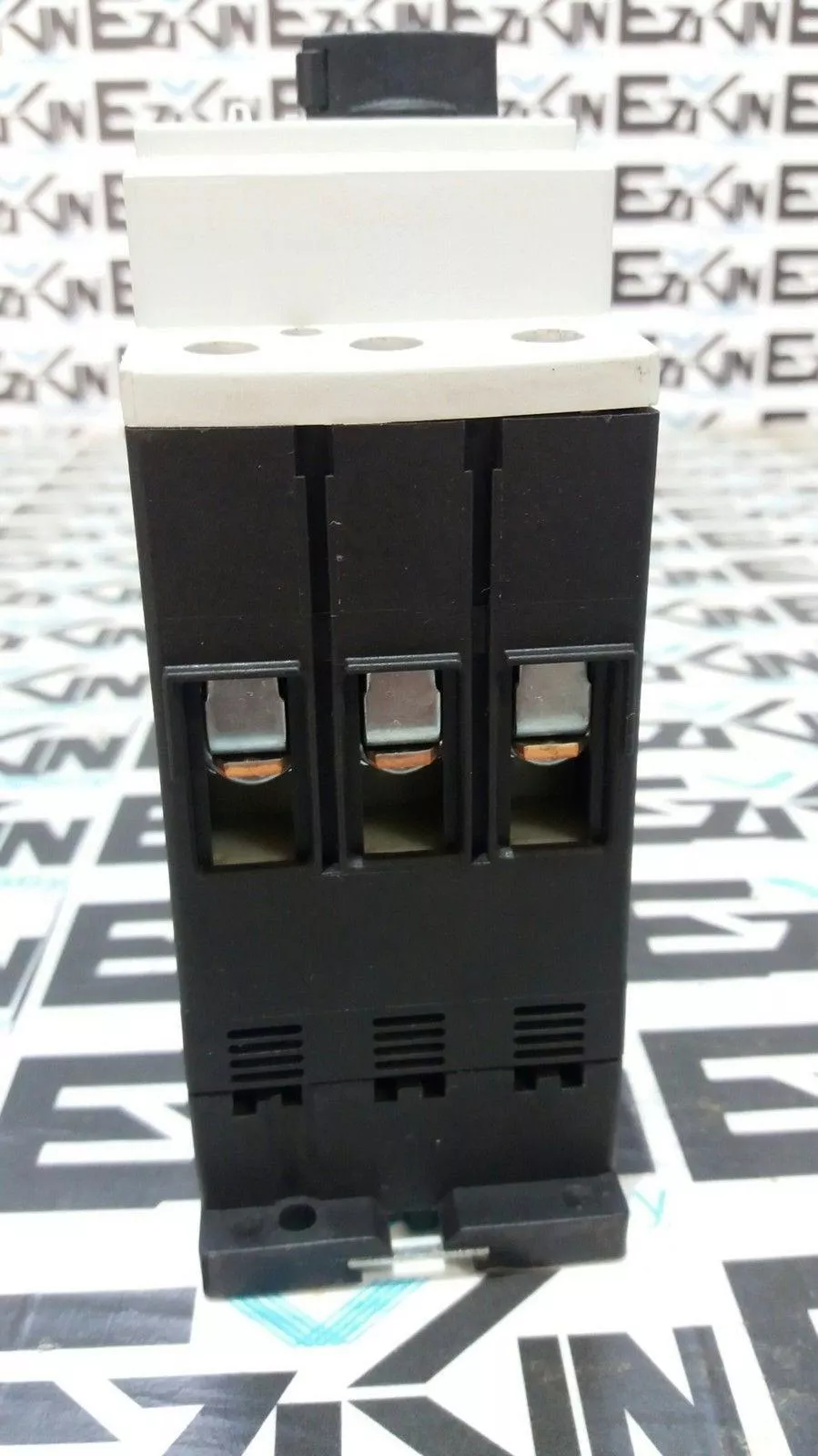

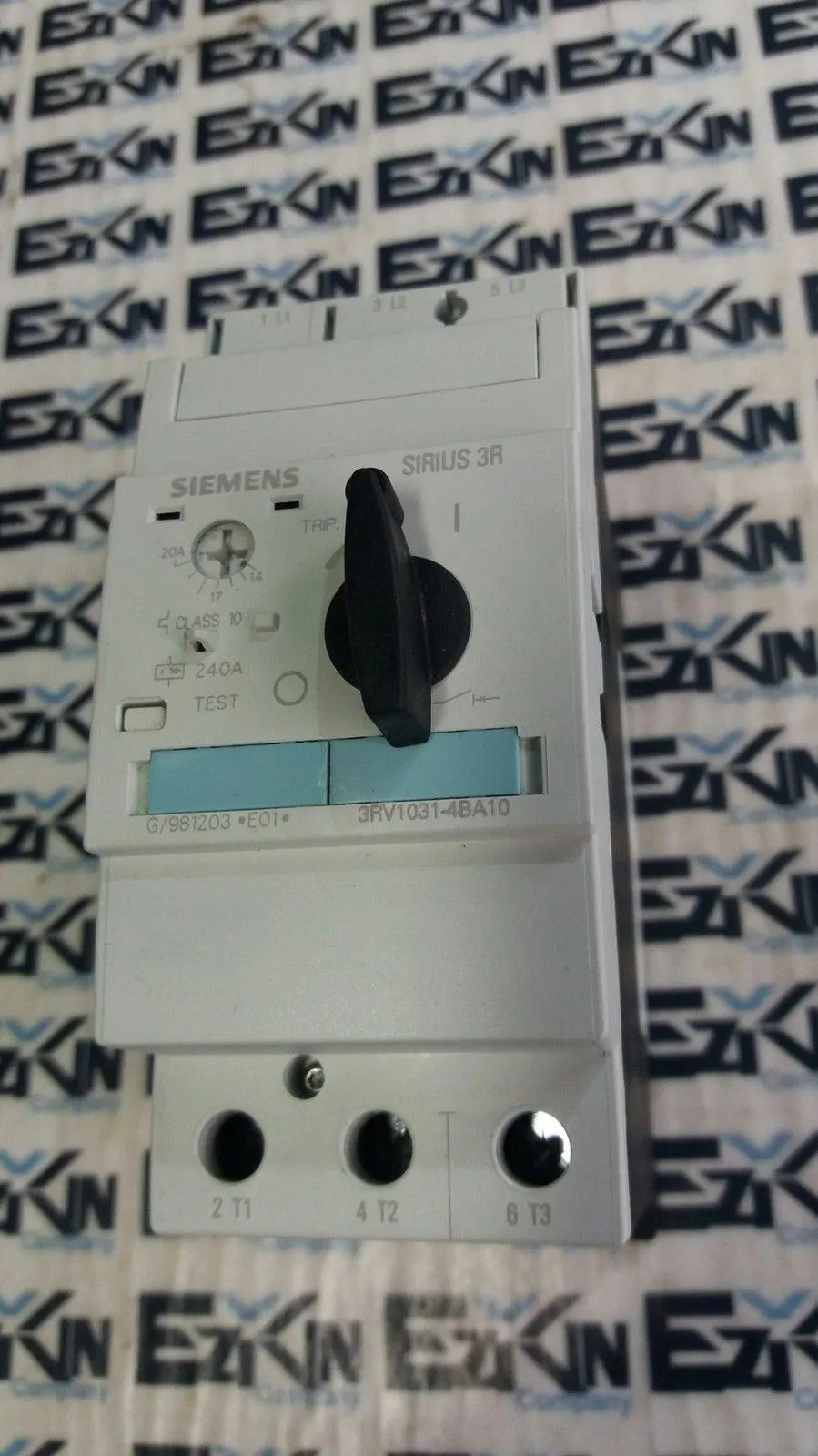

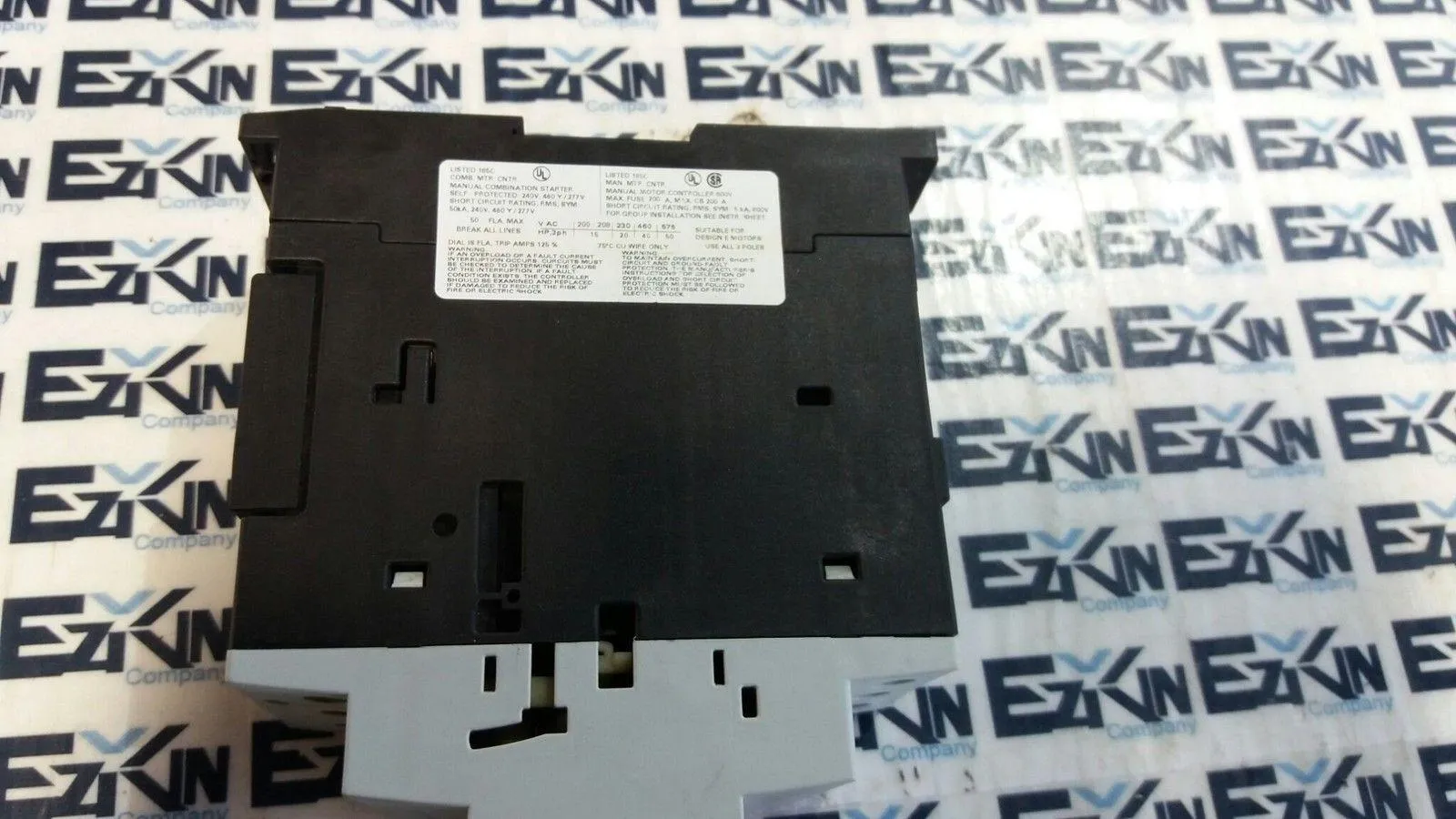

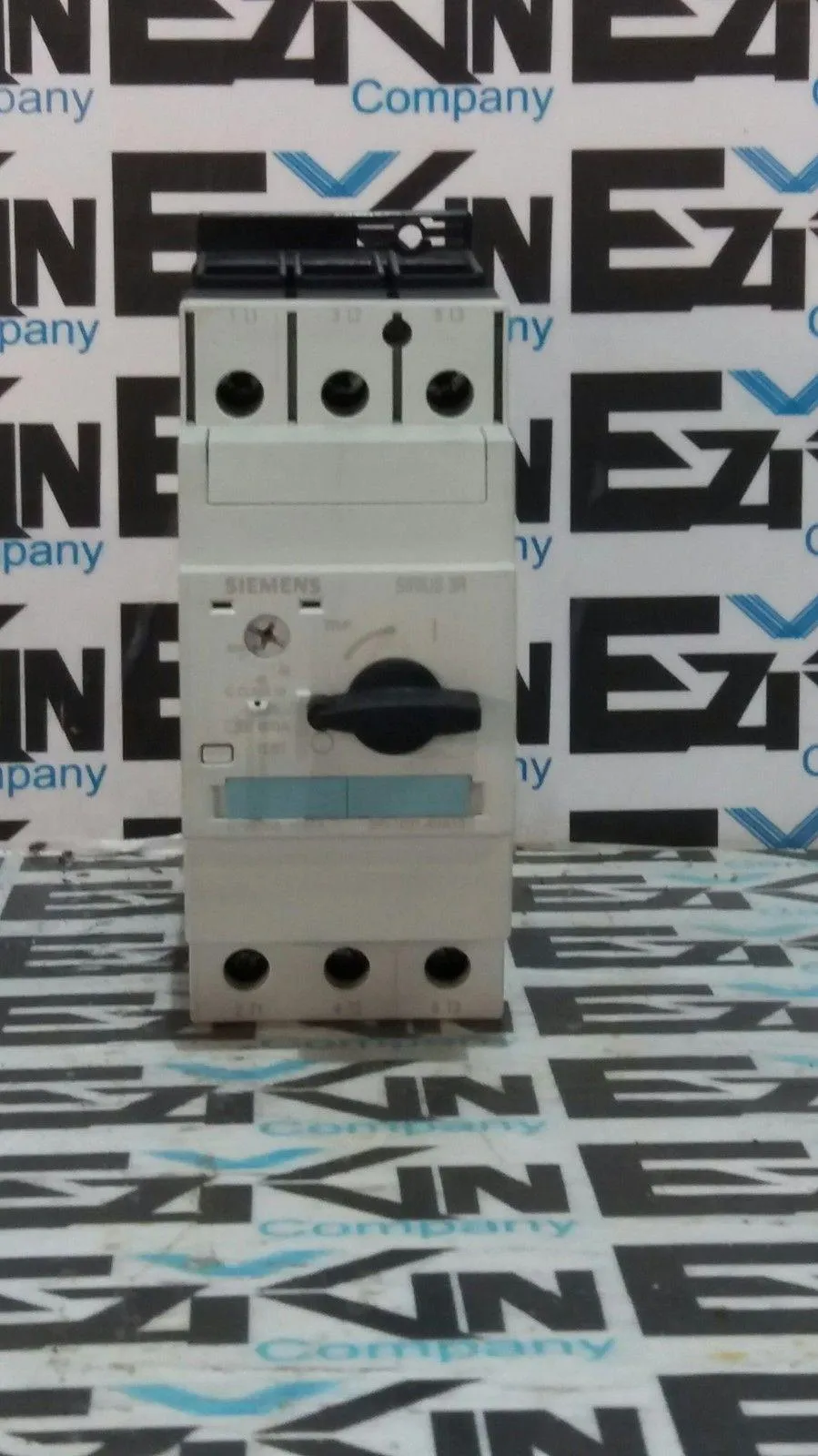

The 3RV1031-4BA10 is a manual motor starter from the Siemens SIRIUS 3RV series, designed to provide protection for motors against overload, short-circuit, and phase loss. It combines circuit breaker functionality with adjustable current protection in one compact unit. Model: 3RV1031-4BA10 Type: Manual Motor Starter / Protector Voltage Rating: Up to 600 VAC Current Adjustment Range: 14–20 A Trip Class: Class 10 (standard motor overload protection) Protection: Thermal (adjustable for overload) Magnetic (fixed for short-circuit) Poles: 3 Control: Manual rotary ON/OFF/TRIP switch Integrated Features: Test button Visual trip indication Breaking Capacity: High (when used with recommended backup fuse or coordination) Auxiliary Contacts: Optional (can be added) Mounting: DIN rail or screw mountable Terminal Type: Screw terminals Certifications: IEC, UL, CSA, CE compliant Application: Motor protection in control panels, direct-on-line starters, HVAC, conveyors Manufacturer: Siemens AG Germany Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 2.20
Depth: 4.00
Length: 8.00
Width: 6.00
SKU: 2324 4.S8.15.5
