Siemens 3RV1011-0JA10 Manual Motor Starter-Protector 600V 12Amp Range 0.7-1.0A

Siemens 3RV1011-0JA10 Manual Motor Starter / Protector
The 3RV1011-0JA10 is a compact manual motor starter from Siemens’ SIRIUS 3RV series, designed for reliable protection of small motors and equipment against overloads, short circuits, and phase failure.
Model: 3RV1011-0JA10
Type: Manual Motor Starter / Protector
Rated Operating Voltage: Up to 600 VAC
Current Adjustment Range: 0.7–1.0 A
Rated Operating Current: 12 A (AC-3 duty)
Trip Class: Class 10 (standard motor protection response)
Protection Functions:
Thermal overload protection (adjustable)
Magnetic short-circuit protection (fixed)
Control: Manual rotary knob (ON/OFF/TRIP positions)
Poles: 3
Breaking Capacity: High (with appropriate backup fuses)
Auxiliary Contacts: Optional (not included by default)
Reset Type: Manual
Mounting: DIN rail or screw mounting
Terminal Type: Screw clamp terminals
Certifications: IEC 60947, UL, CSA, CE
Application: Small motor protection, machine tools, automation panels, compressors

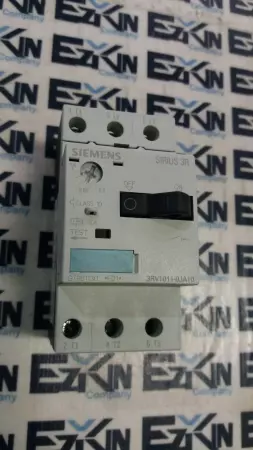

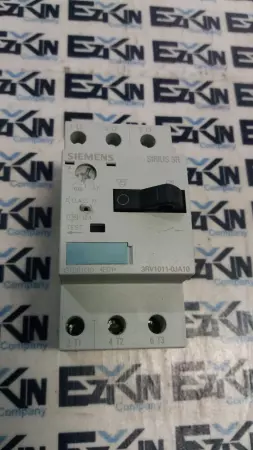

Manufacturer: Siemens AG Germany Please review pictures carefully and let us know if you have any questions!
