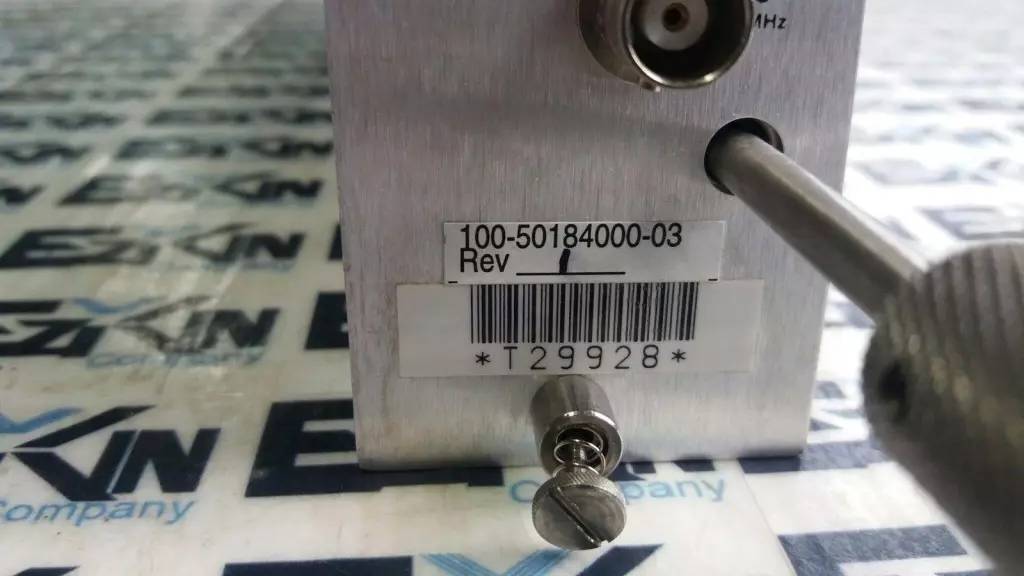

TRM 100-50184000-03 Medical MRI Analogic Module

The TRM 100-50184000-03 is a specialized analog electronic module developed for use in medical MRI systems, likely as part of an RF front-end, gradient controller, or analog signal processing subsystem. Manufactured under the Analogic brand (known for high-precision medical electronics), this module is designed to meet the demanding requirements of diagnostic imaging environments. Model: 100-50184000-03 Revision: (varies by batch; this is base model reference) Manufacturer: TRM / Analogic Corporation Application: MRI (Magnetic Resonance Imaging) systems – analog subsystem Function: Likely analog signal conditioning, RF modulation/demodulation, or interface control Signal Type: Low-noise analog (differential or single-ended), possibly mixed-signal Power Input: ±12V or ±15V analog supply rails (common for MRI analog modules) Construction: Multilayer PCB, shielded components, medical-grade materials Connectivity: Edge connectors or pin headers for signal/power interconnect Form Factor: Plug-in module for backplane or chassis-mounted assembly Mounting: PCB standoff holes or slide-in cage system Environment: Designed for use in EMI-sensitive, temperature-controlled medical imaging equipment Standards: Intended for integration into IEC 60601-compliant systems (via OEM platforms) Please review pictures carefully and let us know if you have any questions!
