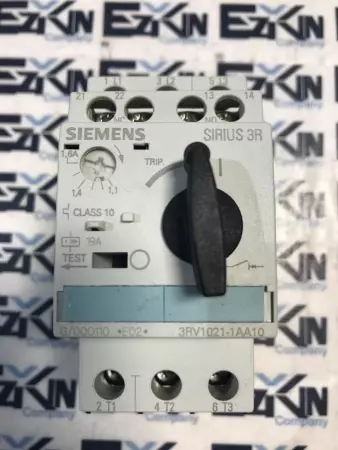

Siemens 3RV1021-1AA10 Manual Motor Starter-Protector 600V 19A Range 1.1-1.6Amp

Compact motor protection device designed for reliable control and protection of motors against overload and short circuit. Suitable for manual operation and direct-on-line (DOL) motor starting.

Model: 3RV1021-1AA10
Rated Operating Voltage (Ue): 600V AC max
Rated Current (In): 19 Amps
Adjustable Thermal Overload Range: 1.1 – 1.6 Amps
Magnetic Trip Setting: Fixed, typically 13x max setting (approx. 20.8 A)
Rated Insulation Voltage (Ui): 690V
Rated Impulse Withstand Voltage (Uimp): 6 kV
Utilization Category: AC-3
Breaking Capacity: 100 kA at 400/415V with proper fuse backup
Frequency: 50/60 Hz
Mounting Type: DIN Rail
Trip Class: Class 10
Control Type: Manual ON/OFF Rotary Handle
Standards: IEC 60947-2 / 60947-4-1, UL 508 / CSA
Frame Size: S00
Environmental Protection: IP20 (front), IP40 with enclosure

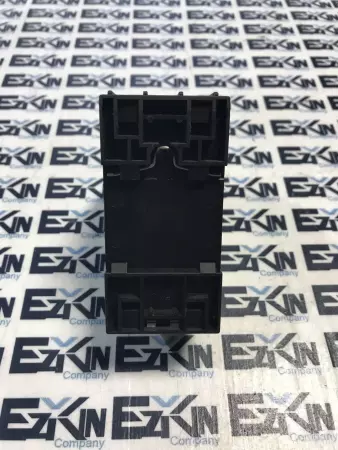

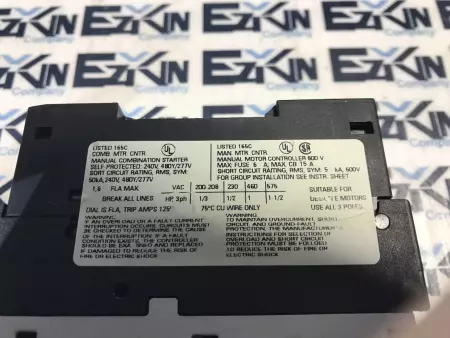

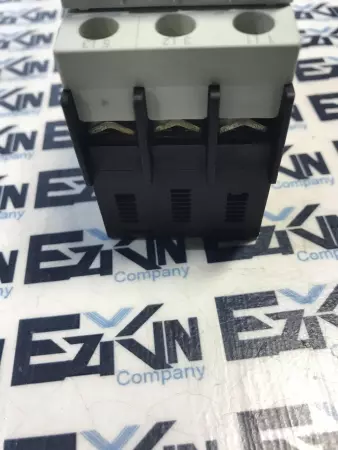

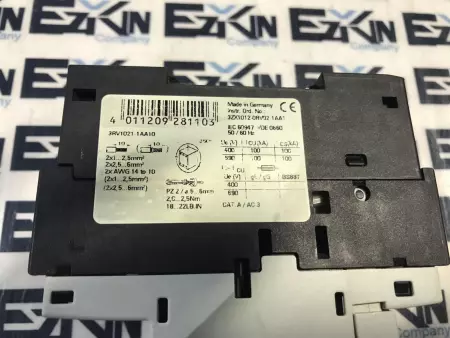

Application: Motor protection, disconnect, and overload/short-circuit protection in industrial systems Please review pictures carefully and let us know if you have any questions!
