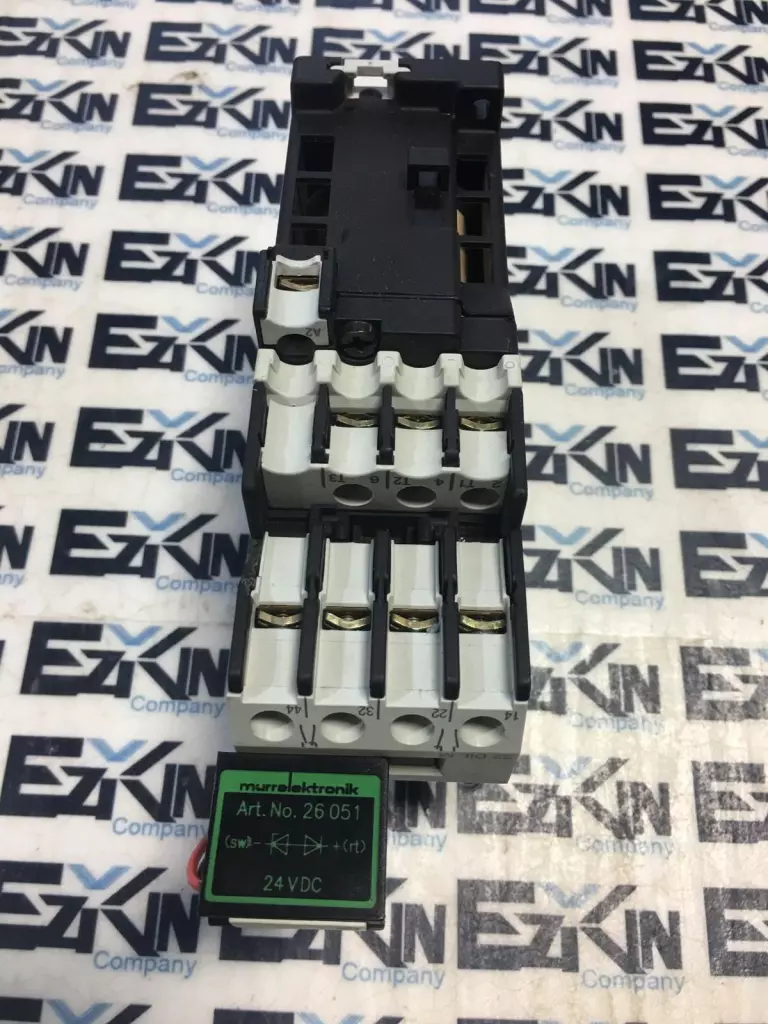

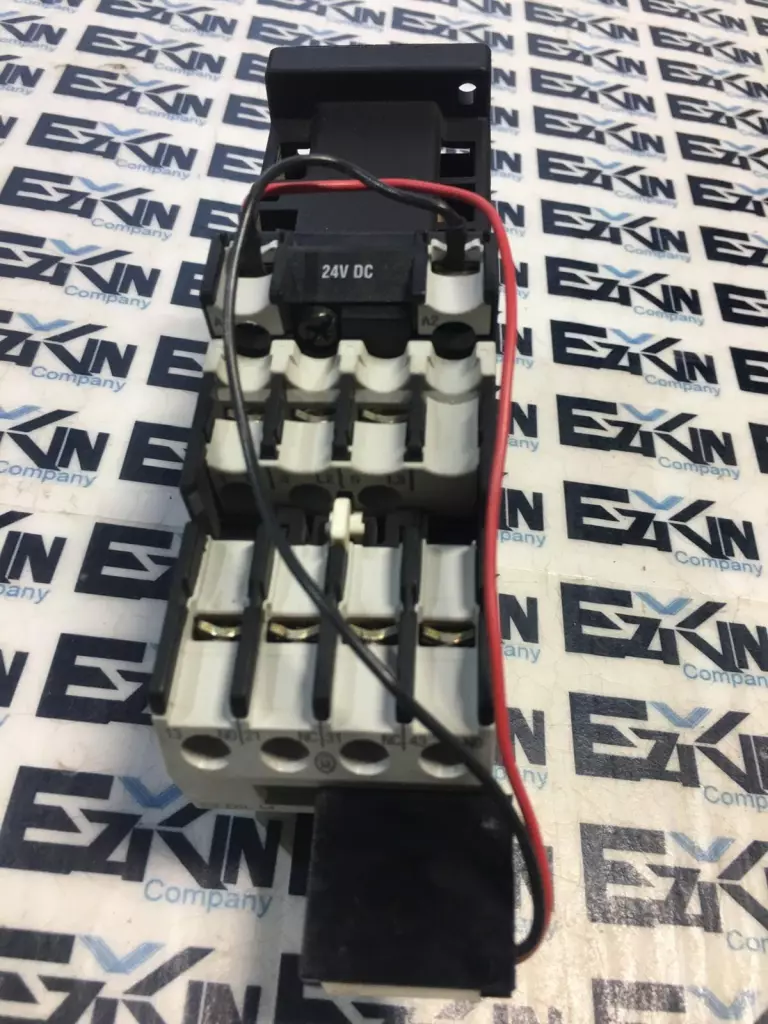

Moeller DIL00AM-G Contactor 600VAC/250VDC 20Amp W/22DILM Auxiliary Contactor

Moeller DIL00AM-G Contactor with 22DILM Auxiliary Block Compact motor contactor suitable for controlling motors and other loads up to 20A, with an attached auxiliary contact block for extended control signaling. Main Contactor – DIL00AM-G Rated Operational Voltage: 600V AC / 250V DC Rated Current (AC-3): 20 Amps Control Voltage: (varies by coil – typically 24V, 120V, or 230V AC depending on model suffix) Number of Main Poles: 3 (3NO) Utilization Category: AC-3 Frequency: 50/60 Hz Mounting: DIN rail or screw mount Terminal Type: Screw terminals Standards: IEC 60947-4-1, UL 508, CSA Auxiliary Contact Block – 22DILM Configuration: 2 contacts (typically 1 NO + 1 NC) Mounting: Snap-on front mount to DIL contactors Current Rating: 10A (AC-15 at 230V) Connection Type: Screw terminals Function: Used for signaling, interlocking, or PLC input feedback Application: Motor starters, control panels, HVAC units, conveyor systems, and automation control requiring motor switching and auxiliary feedback. Please review pictures carefully and let us know if you have any questions!
