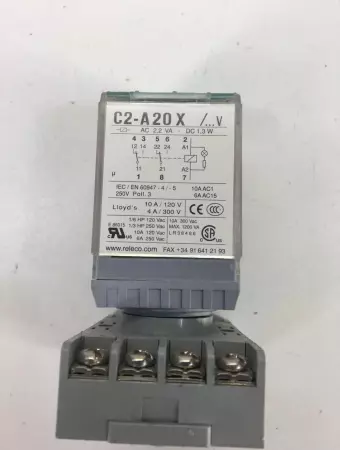

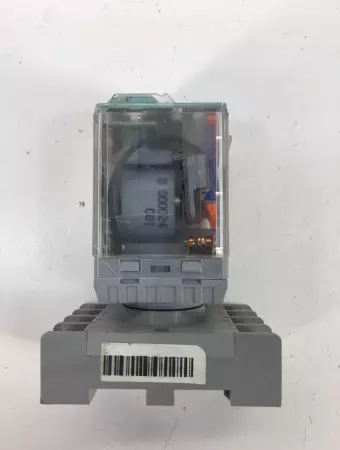

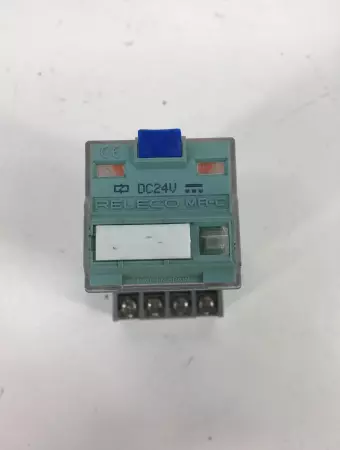

Releco C2-A 20 X Relay with Socket Base 300VAC 10Amp, 24VDC Coil

Industrial-grade plug-in relay designed for control and automation systems. This relay features a DPDT configuration with high dielectric strength and is equipped with a DIN-mountable socket for ease of installation. Technical Specifications Model: Releco C2-A 20 X Relay Type: Electromechanical plug-in relay Rated Voltage: 300 V AC Max Rated Current: 10 A Contact Configuration: 2 CO (DPDT – Double Pole Double Throw) Contact Material: AgNi (Silver-Nickel) Coil Voltage: 24 V DC Power Consumption: 1.3 W Frequency: 50/60 Hz Socket Base: DIN-rail mountable, 5 terminals Surge Withstand: 2.5 kV Insulation Voltage: 250 V Dielectric Strength: 2,000 V AC Mechanical Life: 10 million cycles Electrical Life: 100,000 operations at 10 A 250 V AC Certifications: UL, CSA, CE Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.90

Depth:   4.00

Length:   6.00

Width:   4.00

SKU:   2510 4.S4.15.4
