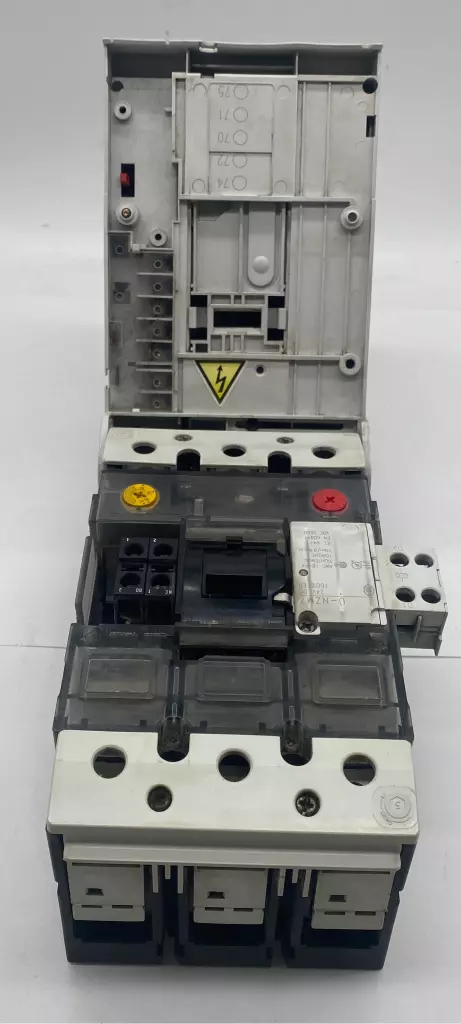

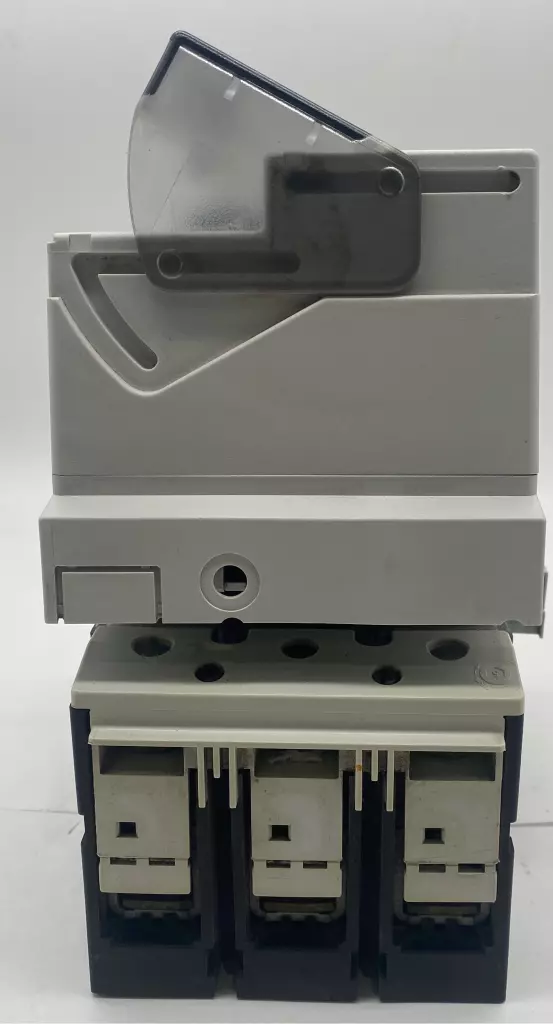

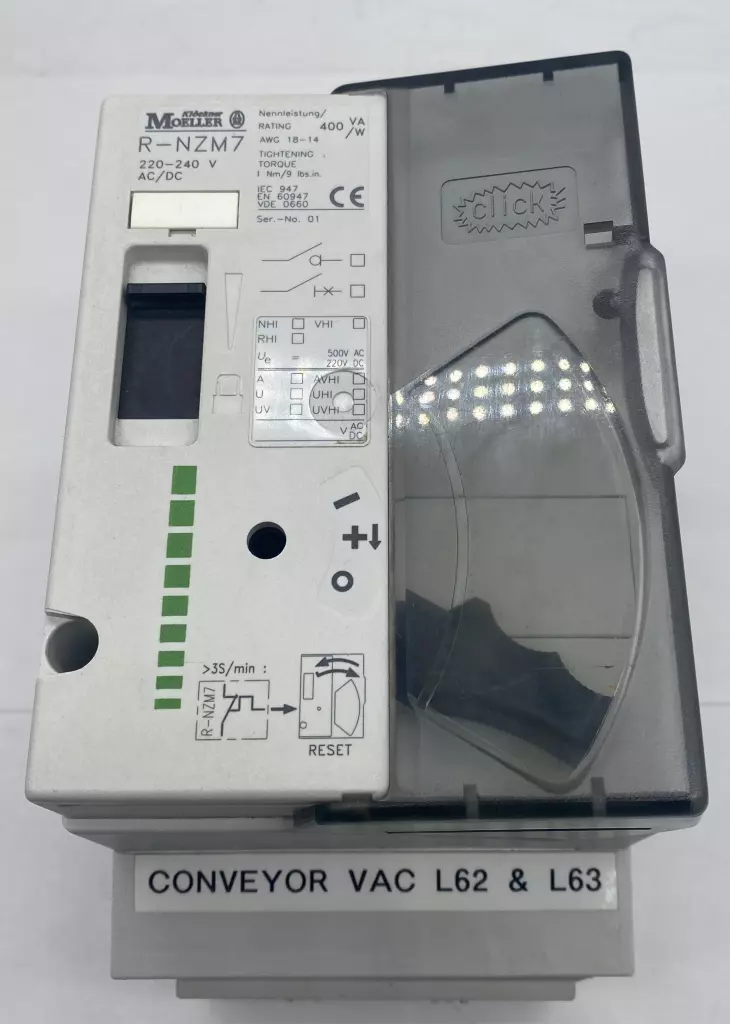

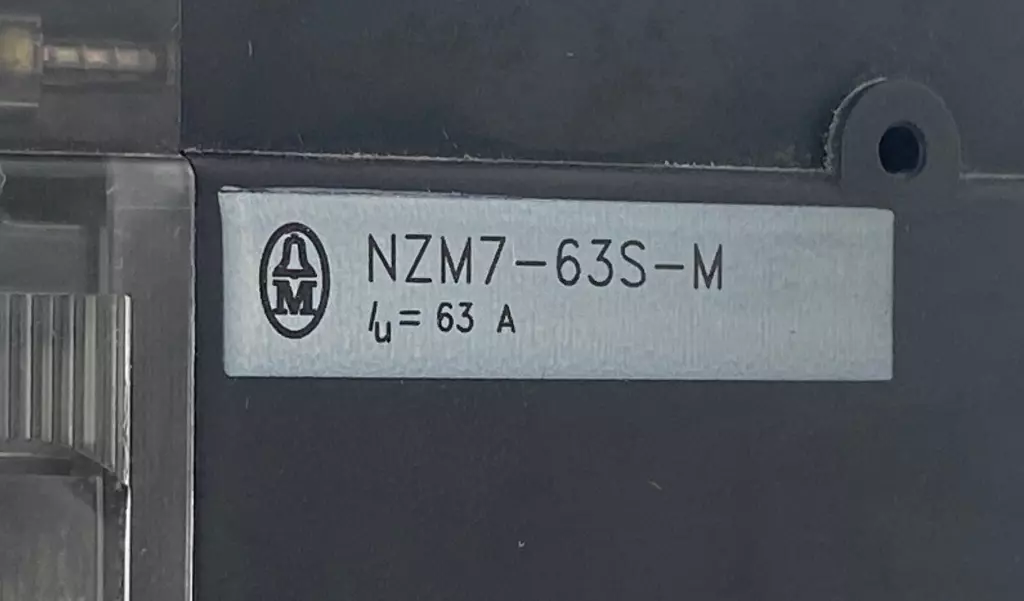

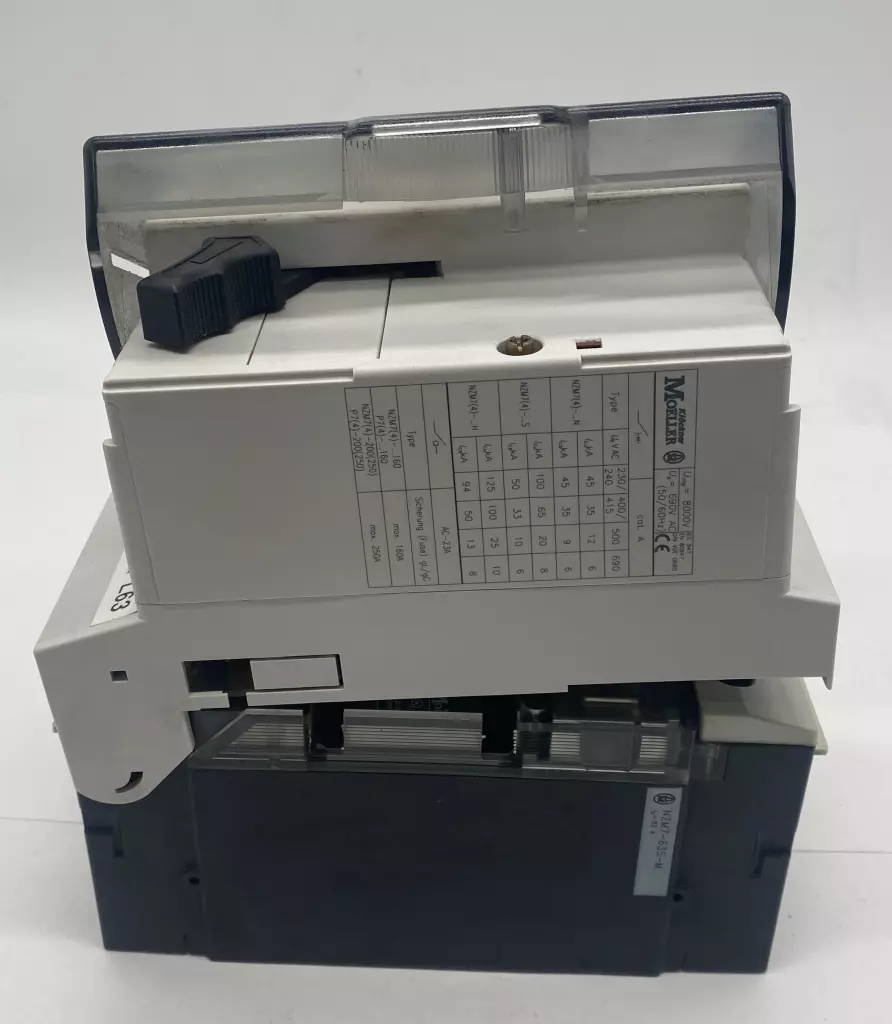

Moeller R-NZM7 Remote Control Drive W/NZM7-63S-M Circuit Breaker

This assembly includes a Moeller R-NZM7 remote control drive coupled with an NZM7-63S-M molded case circuit breaker. It is designed for motorized remote switching of circuit breakers in industrial low-voltage distribution systems. Remote Control Drive (R-NZM7): Model: R-NZM7 Function: Motorized remote operation of NZM7 series circuit breakers Control Voltage: 220–240V AC/DC Operation: Electrically opens and closes the breaker from a remote panel or PLC Mounting: Direct mount to front of the circuit breaker Manual Override: Integrated manual actuation option Indicators: Mechanical position indication (ON/OFF/TRIP) Application: Motor control centers, switchgear, automation, remote breaker control Circuit Breaker (NZM7-63S-M): Model: NZM7-63S-M Rated Current: 63 A Interrupting Capacity: Up to 65 kA Rated Voltage: Up to 690V AC Poles: 3-pole Operating Mechanism: Manual (toggle) and motorized with R-NZM7 Trip Unit: Thermal-magnetic (S-type), adjustable overcurrent protection Mounting: Panel or DIN rail (with adapter) Standards: IEC/EN 60947-2, UL 489, CSA Application: Branch circuit protection, motor protection, distribution systems This setup is commonly used in remote-controlled panels, automation enclosures, and switchboards where safe and convenient remote power management is required. Let me know if you need dimensions or wiring schematics.

Condition: Used

Weight:   10.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   254864 4.S7.25.3
