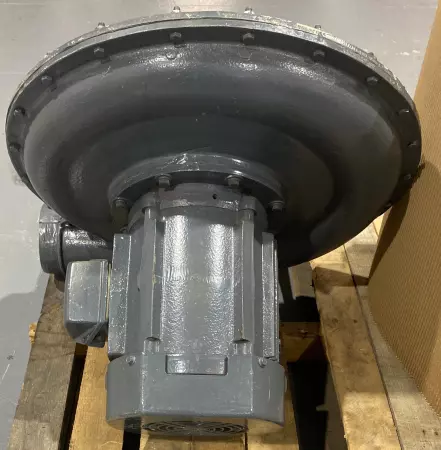

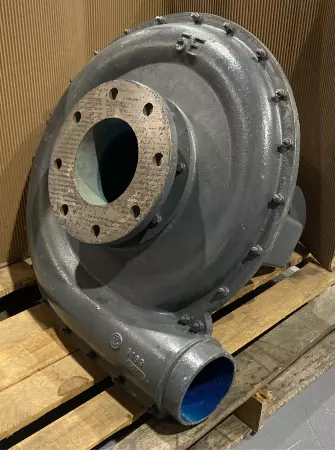

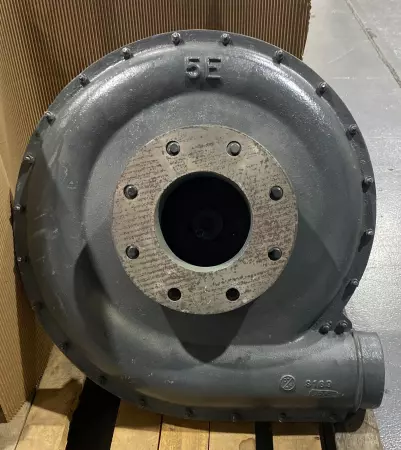

General Electric 5KS164SE100-3Z XSD™ AC Motor 5HP W/Centrifugal Pump

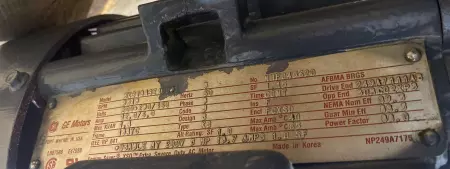

General Electric 5KS164SE100-3Z XSD™ is a heavy-duty three-phase AC induction motor designed for reliable performance in severe-duty industrial applications, featuring high efficiency and integrated centrifugal pump operation. Manufacturer: GE Motors (General Electric) Model Number: 5KS164SE100-3Z Motor Type: XSD™ Extra Severe Duty AC Motor Horsepower: 5 HP Voltage: 200-230/460V AC, three-phase Current: 12.0/6.0 Amps Frequency: 60 Hz Speed: 3515 RPM Frame Size: 184TC Service Factor: 1.15 Duty: Continuous (CONT) Insulation Class: F Enclosure Type: FCXSD (Fan Cooled, Explosion-proof Severe Duty) Power Factor: 88.0 NEMA Efficiency: Nominal 89.5%, Guaranteed Minimum 88.5% Bearings: AFBMA Drive End 249A71114AB, Opposite End 30BC02XP3 Maximum Ambient Temperature: 40°C (standard operation), 65°C (maximum operation) Mounting: C-Face with foot mount Application: Centrifugal pump systems, severe industrial environments, HVAC, chemical processing, wastewater management

Condition: Used

Weight:   151.00

Depth:   24.00

Length:   40.00

Width:   48.00

SKU:   255215 4.R5.1.1
