In stock 1 available

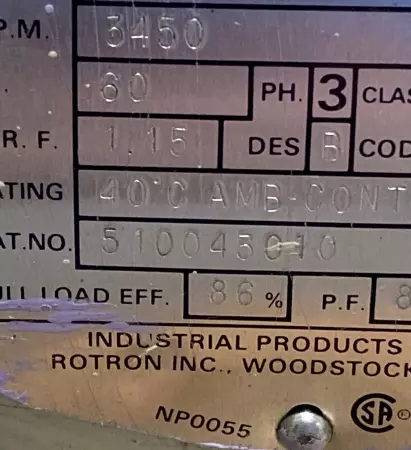

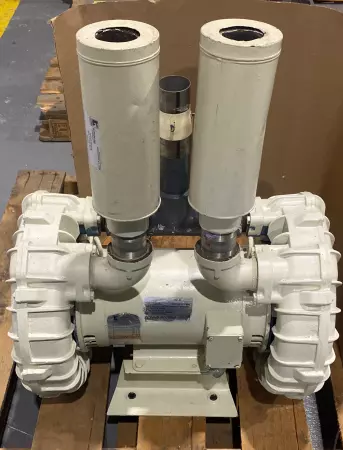

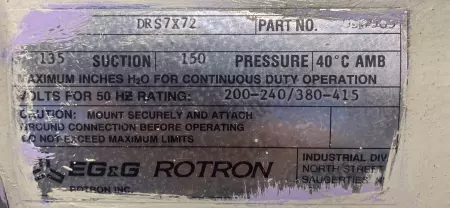

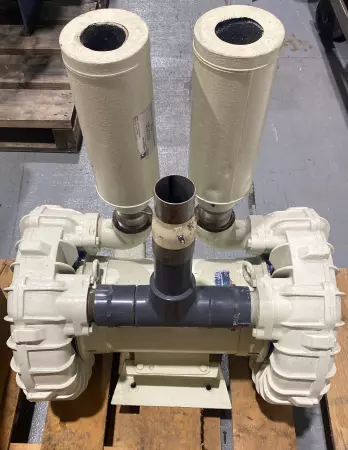

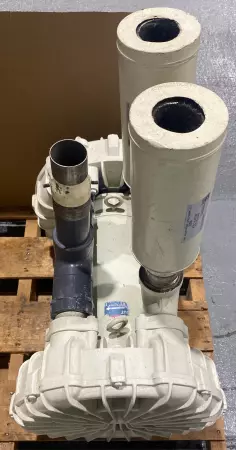

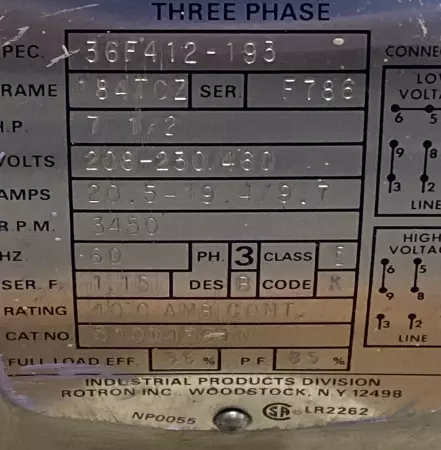

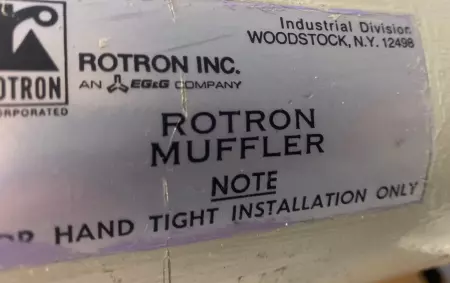

This unit is a Rotron double regenerative blower integrated with a 7.5 HP three-phase motor, designed for high-pressure air movement in industrial applications such as cooling, drying, or pneumatic conveying. It is manufactured by the Industrial Products Division of Rotron Inc. in Woodstock, NY. Motor Specifications Manufacturer: Rotron Inc. (EG&G Rotron) Model: 510045010 Spec No.: 36F412-193 Frame: 184TCZ Horsepower: 7.5 HP Voltage: 208-230/460 VAC (3-phase) Amperage: 20.5 A @ 208V / 19.4 A @ 230V / 9.7 A @ 460V Speed: 3450 RPM Frequency: 60 Hz Service Factor: 1.15 Insulation Class: F Design Code: K Duty: Continuous (40°C ambient rated) Power Factor: 85% Full Load Efficiency: 86% Wiring: Dual-voltage connection diagram shown on nameplate UL/CSA Certified: UL File No. E51581 / CSA LR2262 Blower Specifications Blower Type: Dual-stage regenerative blower (side channel design) Configuration: Twin impeller design for increased pressure Housing Material: Likely cast aluminum with industrial coating Inlet/Outlet: Vertical inlets with mufflers, lateral discharge Mounting: Base mount Application Range: – Air/gas transfer – Industrial vacuum – Cooling systems – Dust/smoke exhaust – Wastewater aeration Performance Note: Specific airflow (CFM) and pressure (inH₂O or mbar) ratings depend on impeller and housing configuration—typically available in Rotron's performance curve data sheets for this blower model.
Condition: Used
Weight: 151.00
Depth: 34.00
Length: 24.00
Width: 30.00
SKU: 255475 4.R4.4.5
