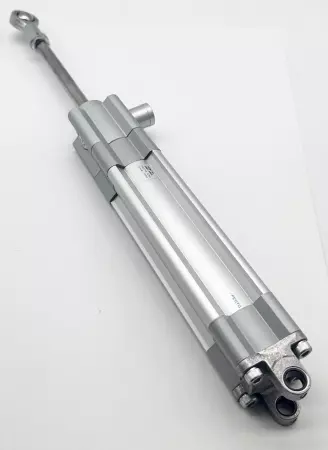

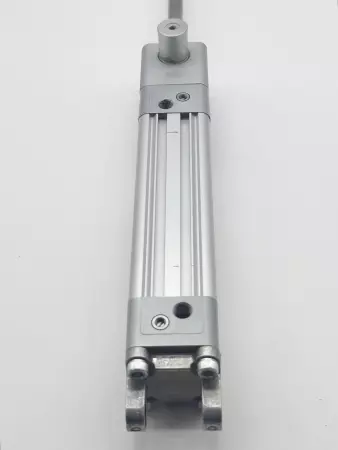

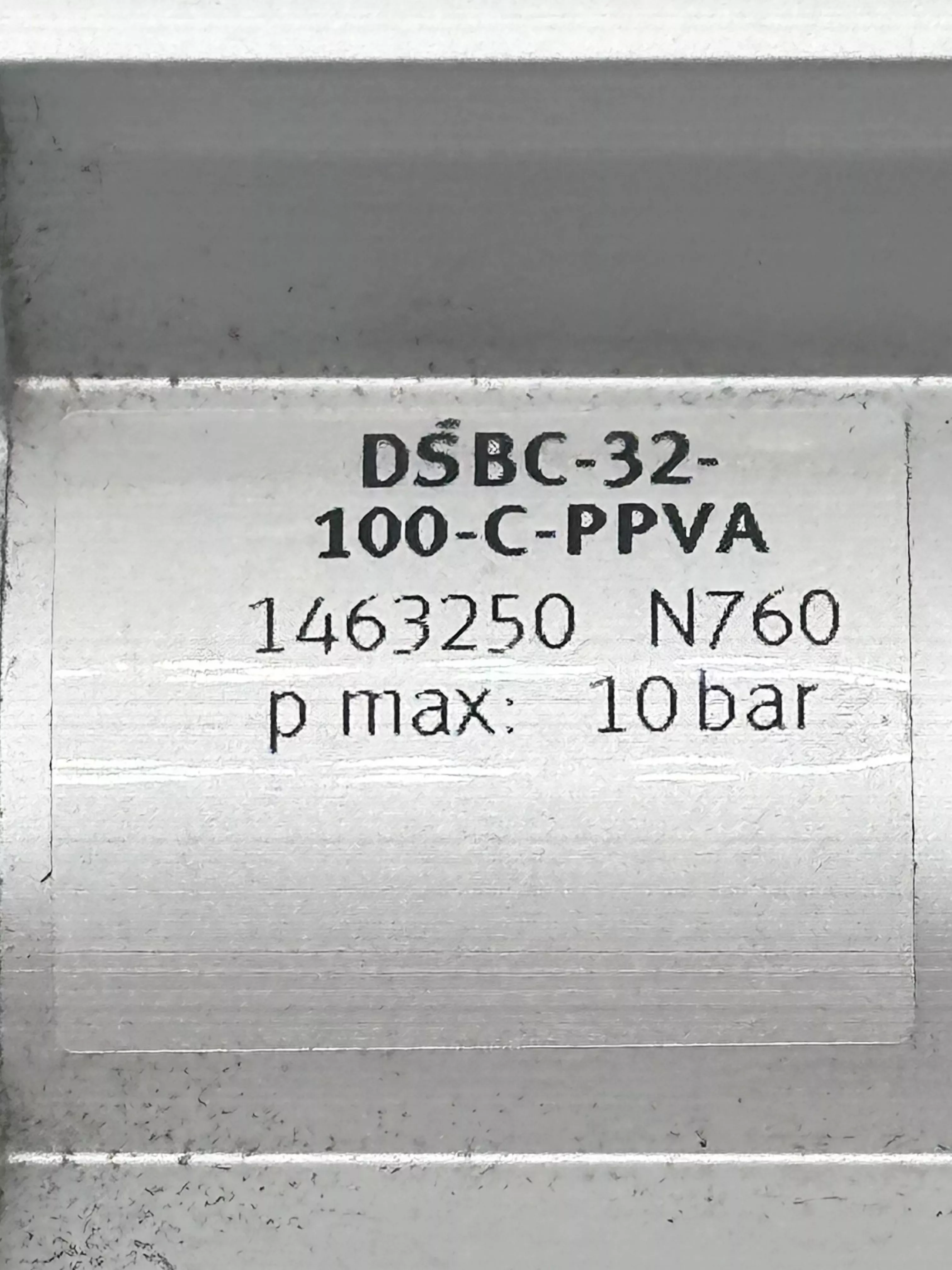

Festo DSBC-32-100-C-PPVA Pneumatic Cylinder, Bore 32mm Stroke 100mm

Festo DSBC-32-100-C-PPVA is a high-performance pneumatic cylinder designed for precise linear motion in industrial automation applications. It is part of the ISO 15552-compliant DSBC series, known for reliability and modular flexibility. Manufacturer: Festo Model: DSBC-32-100-C-PPVA Cylinder Type: Double-acting pneumatic cylinder Bore Size: 32 mm Stroke Length: 100 mm Cushioning: Pneumatic adjustable end-position cushioning with PPV Piston Rod Thread: Male thread Mounting Style: Standard with integrated end caps and mounting options Operating Pressure: 1 to 10 bar Operating Medium: Compressed air, filtered and lubricated or unlubricated Temperature Range: -20°C to +80°C Piston Rod Material: Stainless steel Cylinder Barrel Material: Anodized aluminum End Cap Material: Die-cast aluminum Sealing Material: NBR (nitrile rubber) Standards Compliance: ISO 15552 (VDMA 24562) Application: Industrial automation, packaging, material handling, pick-and-place systems This model includes advanced cushioning and mounting features, ensuring smooth operation and long service life even in demanding industrial environments.

Condition: Used

Weight:   7.00

Depth:   6.00

Length:   12.00

Width:   15.00

SKU:   255594 4.S6.7.2
