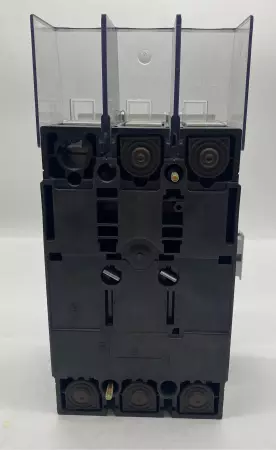

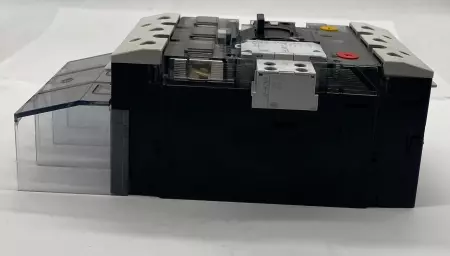

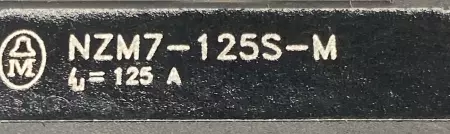

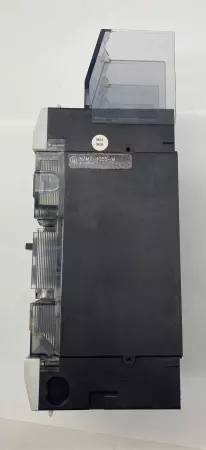

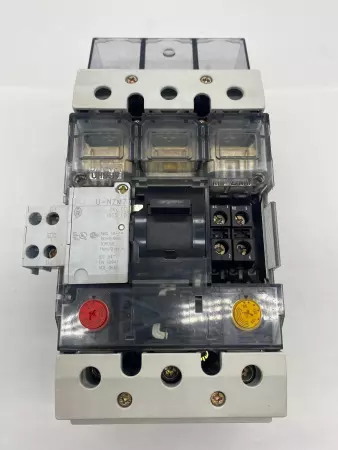

Moeller NZM7-125S-M Circuit Breaker 24VDC Coil 125A

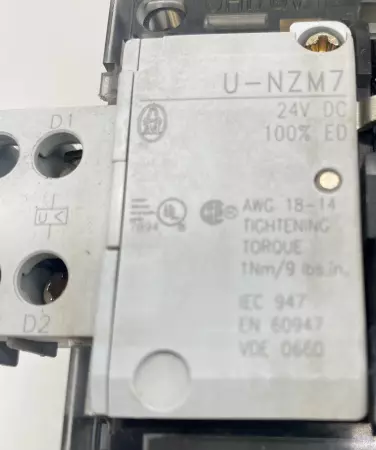

The Moeller NZM7-125S-M is a molded case circuit breaker (MCCB) designed for protection of low-voltage electrical circuits. It provides reliable short-circuit and overload protection with manual operation and is commonly used in industrial and commercial power distribution systems. Technical Information: Manufacturer: Moeller (now Eaton) Model: NZM7-125S-M Type: Molded Case Circuit Breaker (MCCB) Rated Current (In): 125 A Shunt Release Coil: 24V DC Frame Size: NZM7 Interrupting Capacity: Typically 25–50 kA @ 400V AC (verify exact model variant) Operating Voltage: Up to 690V AC Number of Poles: 3-pole (standard), 4-pole variants may be available Trip Unit Type: Thermal-magnetic (S = Standard, M = Manual) Adjustment Range: Fixed or adjustable trip setting depending on variant Counting: Fixed mount, DIN rail or panel mountable Standards Compliance: IEC 60947-2, VDE, UL 489 (depending on marking) Dimensions: Approx. 165 mm H × 105 mm W × 86 mm D (check datasheet) Control Options: Manual toggle operation (no motor operator) Applications: Main and branch circuit protection, motor circuits, industrial panels

Condition: Used

Weight:   8.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   256017 4.S7.25.3
