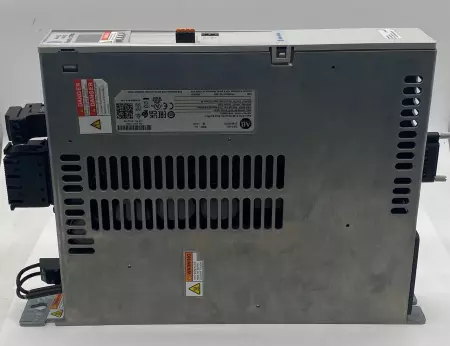

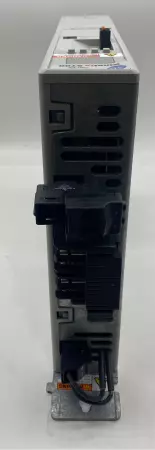

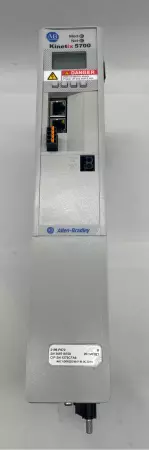

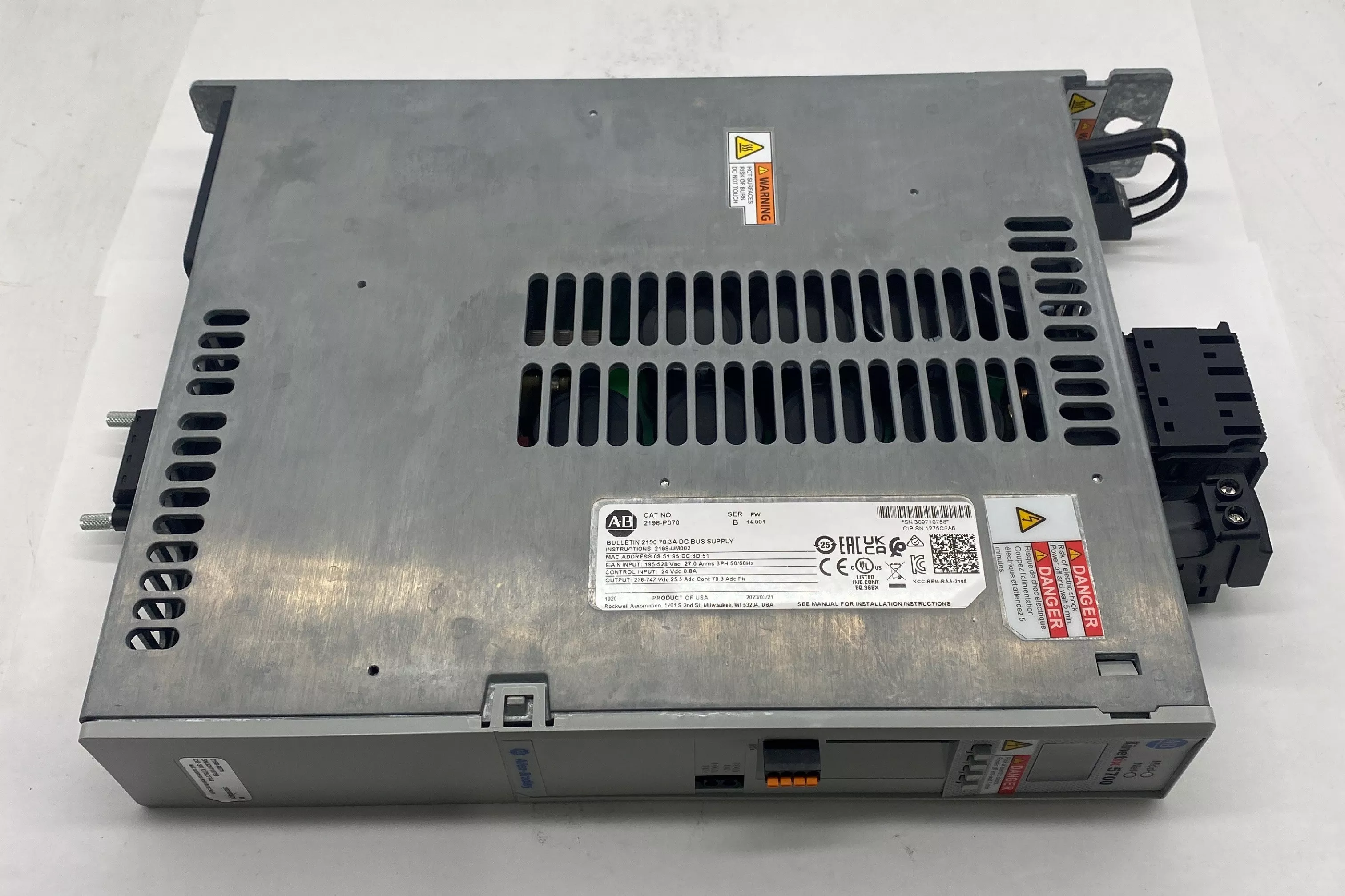

Allen-Bradley 2198-P070 SER.B Kinetix 5700 DC Bus Power Supply 480VAC 3-Ph 25A

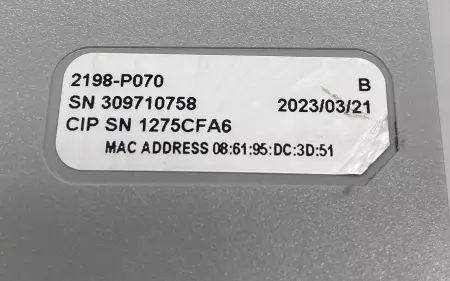

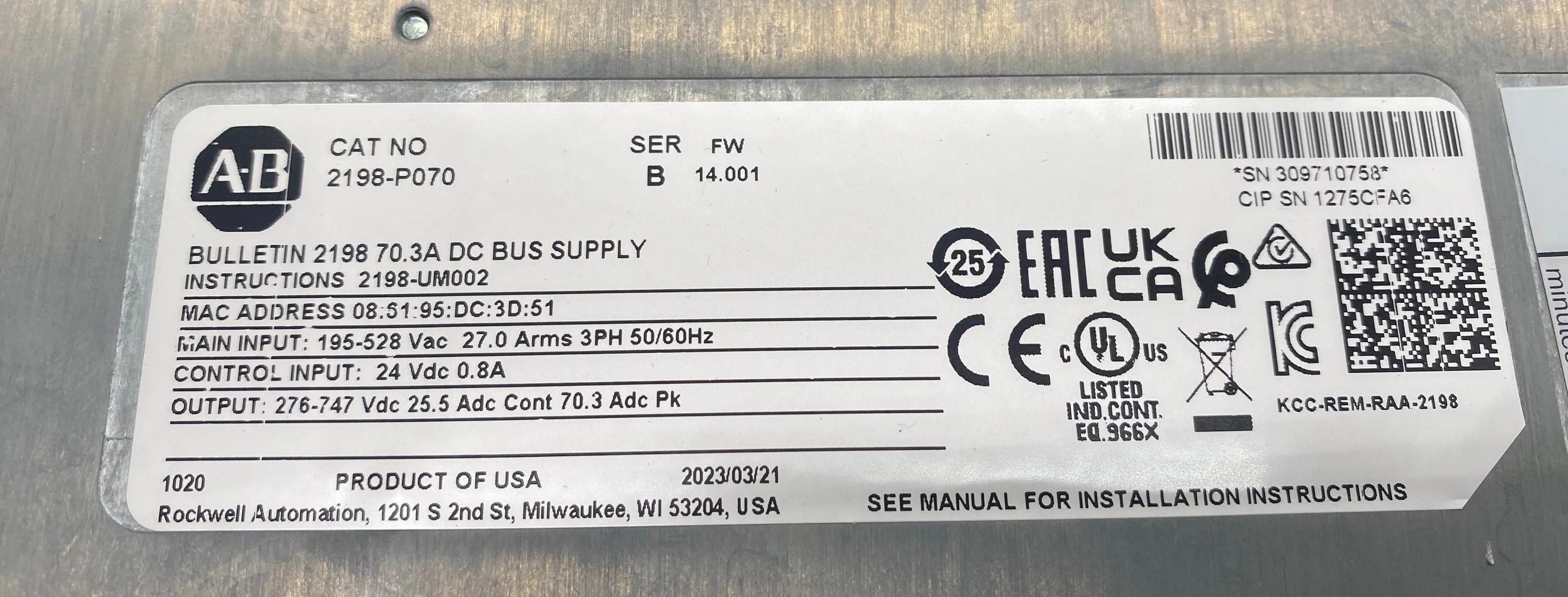

The 2198-P070 is a DC bus supply module used in Rockwell Automation’s Kinetix 5700 multi-axis servo drive systems. It provides high-performance bus voltage and current for distributed motion control solutions, ideal for coordinated, high-speed industrial automation. Technical Specifications Catalog Number: 2198-P070 Series: B Firmware Version: 14.001 Product Line: Kinetix 5700 Type: DC Bus Power Supply Module MAC Address: 08:51:95:DC:3D:51 Main Input Voltage: 195–528 VAC Main Input Current: 27.0 Arms, 3-phase, 50/60 Hz Control Input Voltage: 24 VDC Control Input Current: 0.8 A Output Voltage: 276–747 VDC Output Current: 25.5 ADC continuous, 70.3 ADC peak Bulletin: 2198 Compliance: CE, UL, UKCA, EAC, RCM, KC Enclosure Rating: Listed as Industrial Control Equipment (IND.CONT. EQ. 966X) Manufacture Date: March 21, 2023 Product of: USA (Rockwell Automation, Milwaukee, WI) Installation Guide: Refer to document 2198-UM002

Condition: Used

Weight:   134.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   256053 4.R2.1.3
