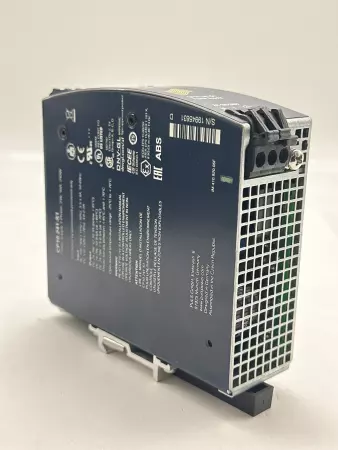

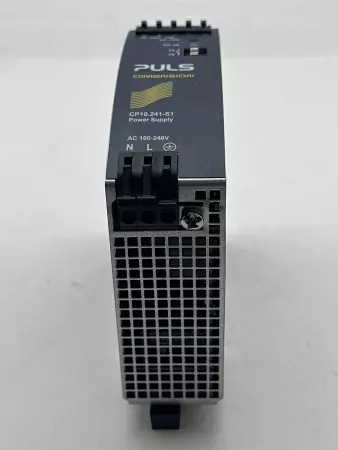

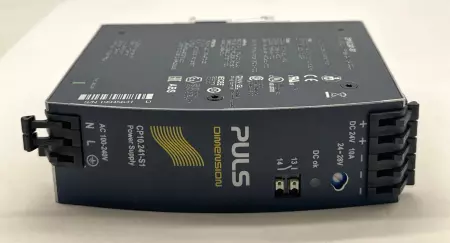

Puls CP10.241-S1 Power Supply, 1-Ph 24V 10A 240W

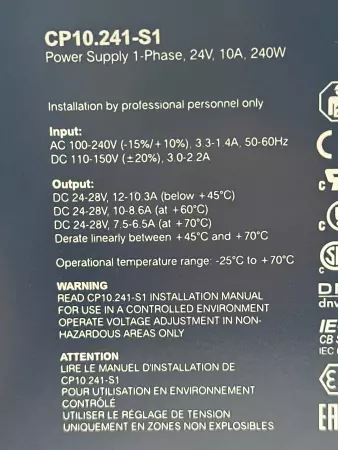

The Puls CP10.241-S1 is a compact, high-efficiency single-phase DIN rail power supply unit designed for industrial control systems. It delivers 24V DC output at up to 10A, making it suitable for demanding automation and control applications. Model: CP10.241-S1 Input Voltage (AC): 100–240V AC (-15% / +10%), 50–60 Hz Input Current (AC): 3.3–1.4 A Input Voltage (DC): 110–150V DC (±20%) Input Current (DC): 3.0–2.2 A Output Voltage: DC 24–28V adjustable Output Current: 12–10.3A (below +45°C), 10–8.6A (at +60°C), 7.5–6.5A (at +70°C) Power Rating: 240W Operational Temperature Range: -25°C to +70°C Cooling: Convection-cooled Installation: DIN rail mount Protection: Overload, short circuit, overvoltage, thermal protection Application: Industrial automation, process control, machine building Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   7.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   256126 4.S5.11.3
