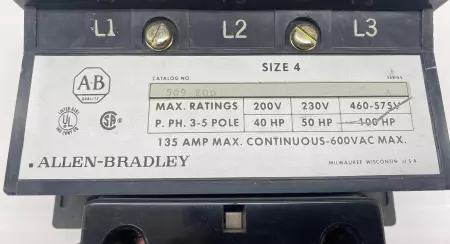

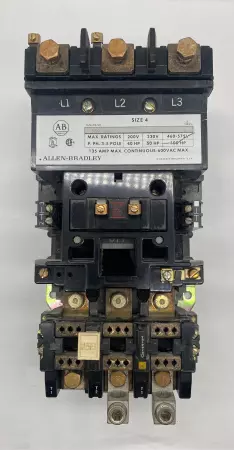

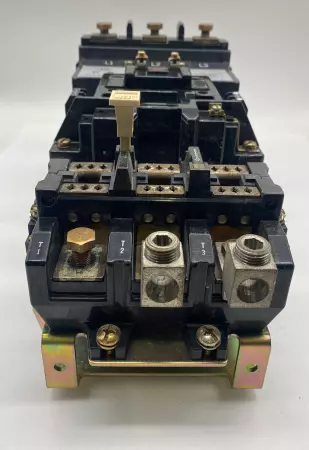

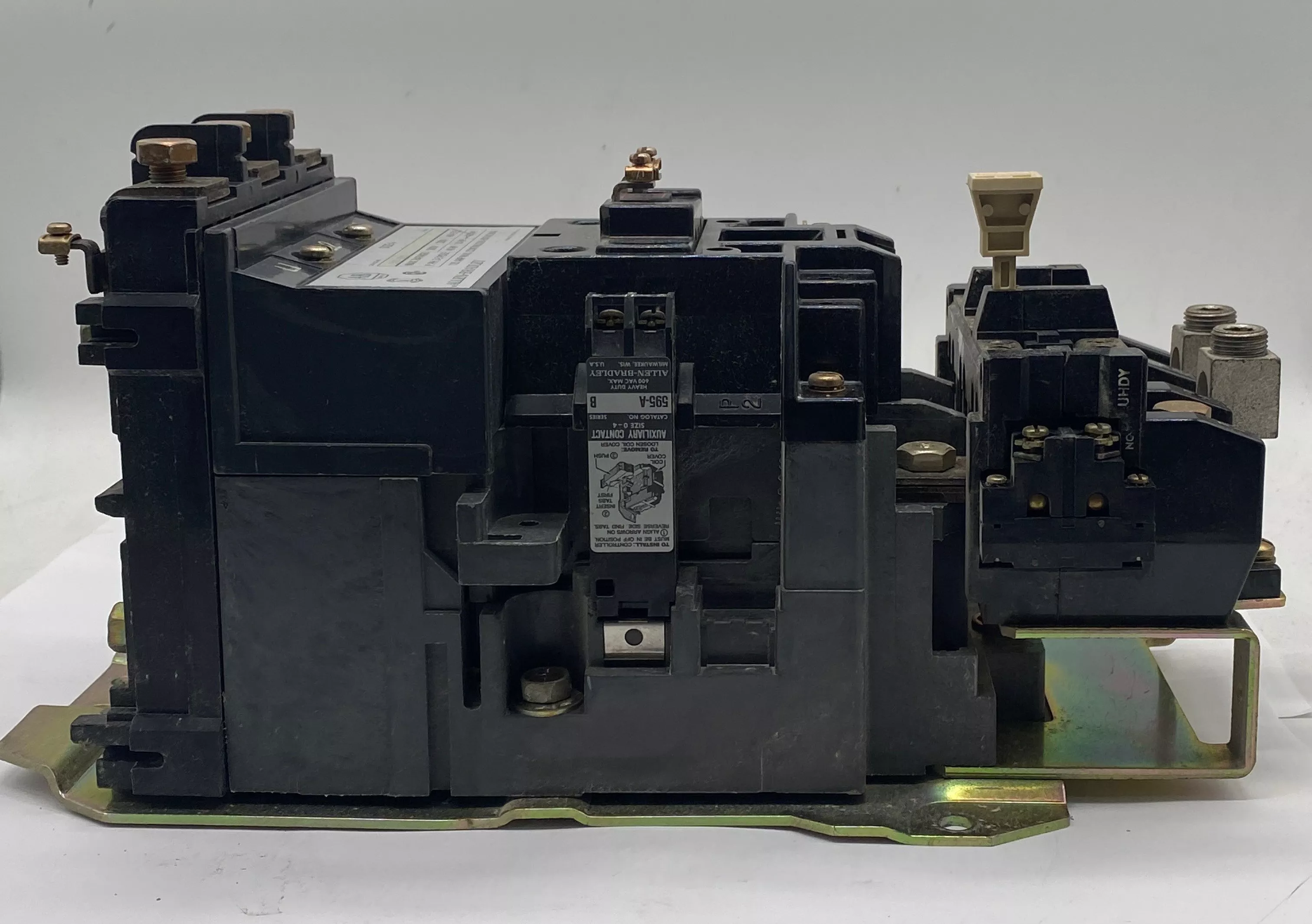

Allen-Bradley 509-E0D SER.A Size 4 Contactor, 600VAC 135A 120V Coil

The Allen-Bradley 509-E0D Series A is a NEMA Size 4 non-reversing magnetic motor starter designed for industrial motor control applications. This open-type starter is suitable for controlling three-phase motors and provides reliable motor starting and overload protection. Key Specifications: Model: 509-E0D Series A NEMA Size: 4 Continuous Current Rating: 135 A Coil Voltage: 115–120V AC at 60 Hz; 110V AC at 50 Hz Number of Poles: 3 Overload Relay: Eutectic alloy type (heaters not supplied) Enclosure Type: Open style (no enclosure) Maximum Horsepower Ratings: 200V AC: 40 HP 230V AC: 50 HP 415V AC: 75 HP 575V AC: 100 HP

Condition: Used

Weight:   18.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   257033 4.R2.3.2
