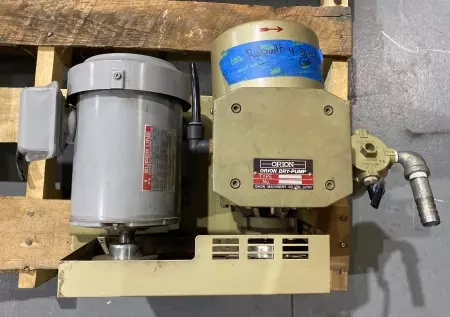

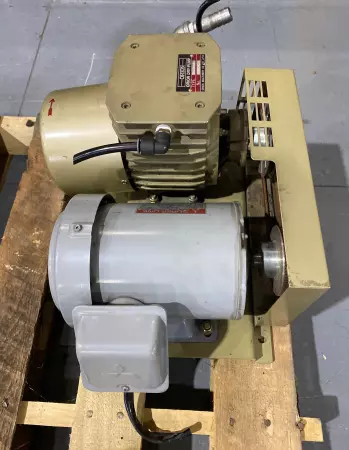

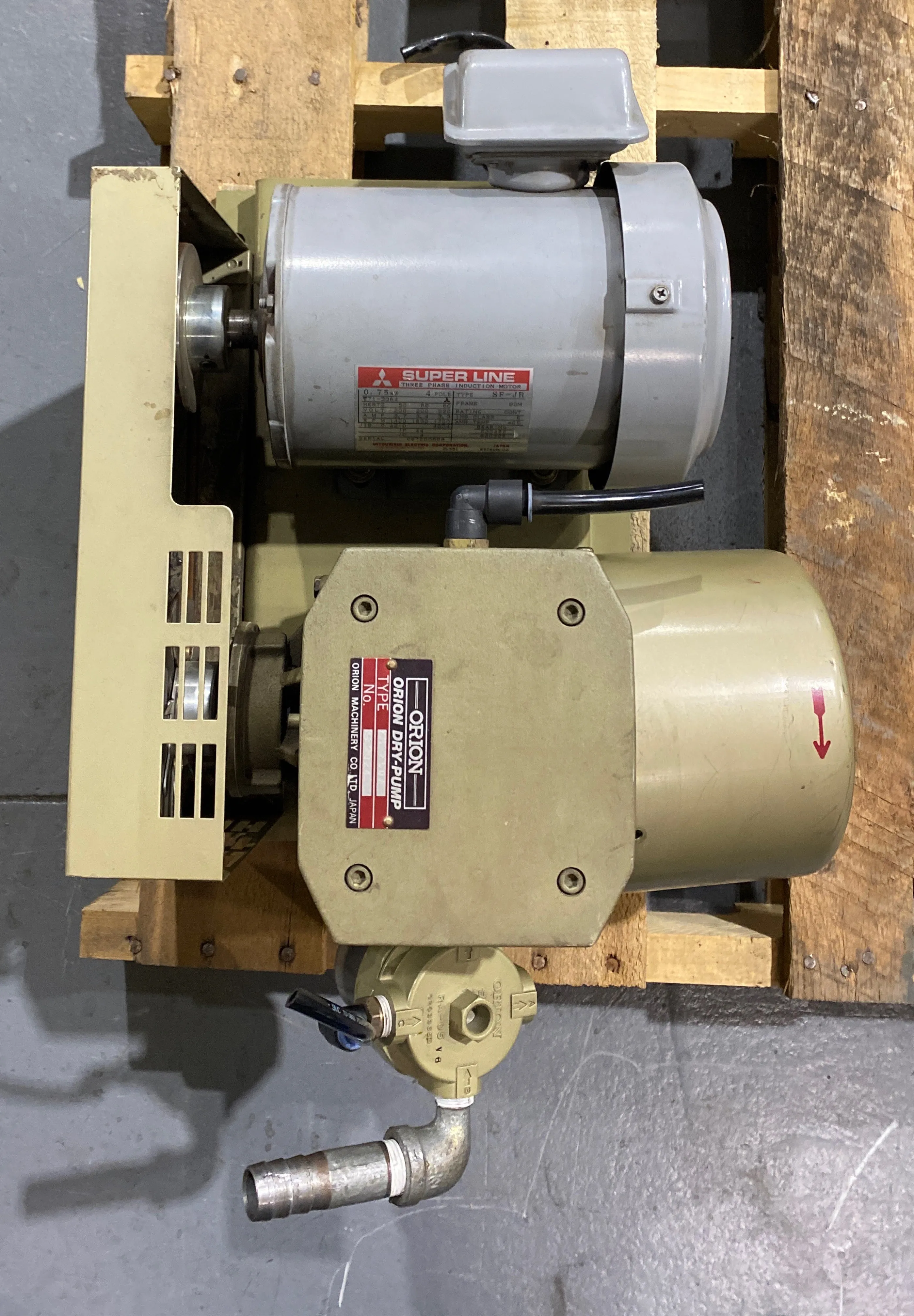

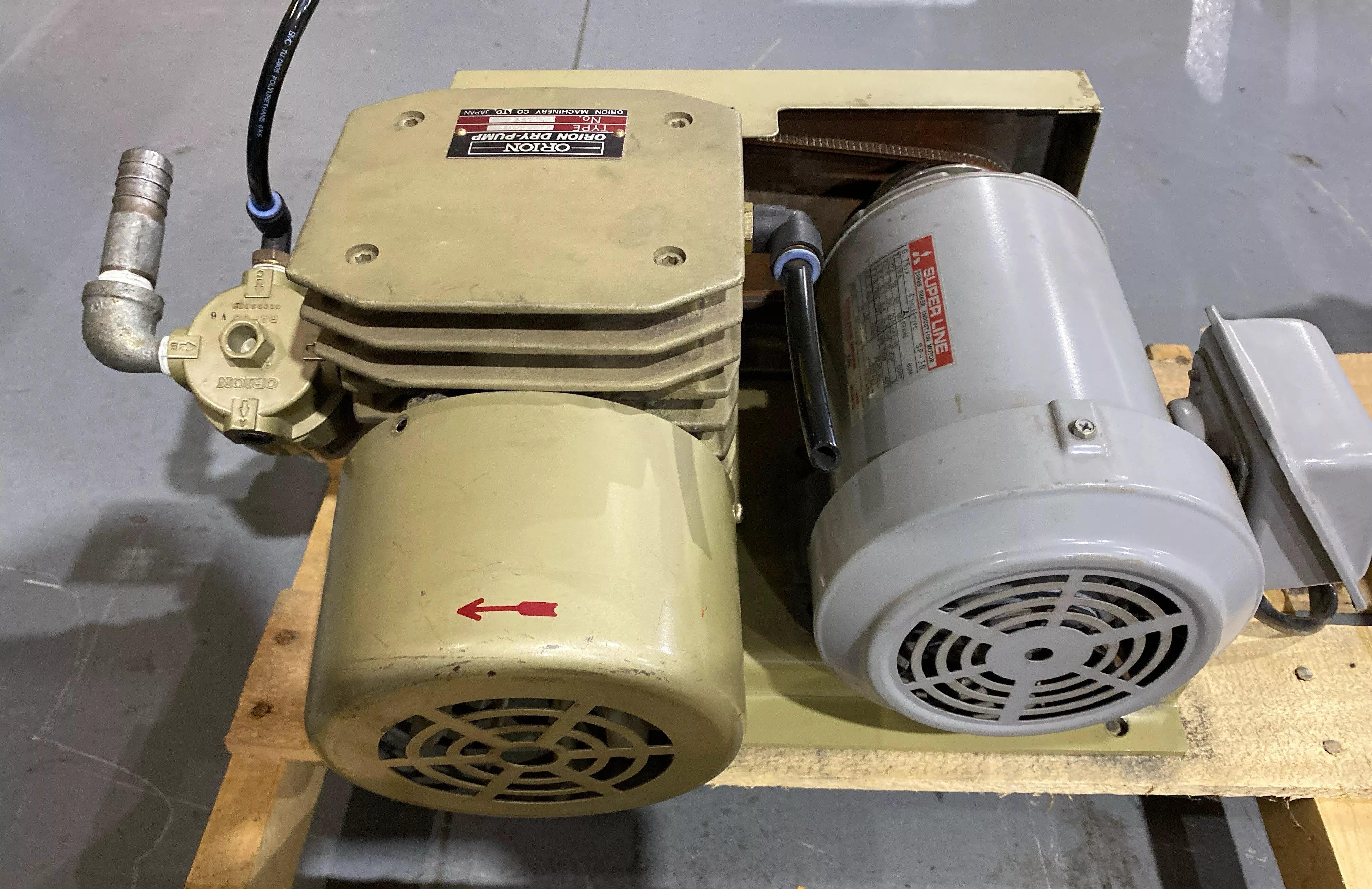

Orion KH750A Dry Pump W/Mitsubishi Motor 0.75kW

The Orion KH750A is a dry rotary vane vacuum pump designed for clean, oil-free vacuum generation. Paired with a Mitsubishi 0.75 kW motor, it is ideal for applications requiring reliable, continuous-duty vacuum without oil contamination, such as laboratory, packaging, and semiconductor processes. Technical Information: Pump Model: Orion KH750A Pump Type: Dry rotary vane vacuum pump Cooling: Air-cooled Motor: Mitsubishi AC Motor Motor Power: 0.75 kW (1 HP) Voltage: Typically 200–220V Current Draw: ~3.7 A @ 200V / ~3.3 A @ 220V Frequency: 50/60 Hz Free Air Displacement: ~750 L/min (26.5 CFM) Ultimate Vacuum Pressure: ~6.7 kPa (50 Torr or ~50 mbar) Noise Level: ~60–65 dB(A) Weight: ~35–45 kg (varies by model) Port Size: Usually Rc 3/4 or similar (inlet and outlet) Construction: Cast aluminum housing, carbon or composite vanes Mounting: Base plate with anti-vibration feet Duty Cycle: Continuous (S1)

Condition: Used

Weight:   76.00

Depth:   16.00

Length:   19.00

Width:   28.00

SKU:   258364 4.R3.4.4
