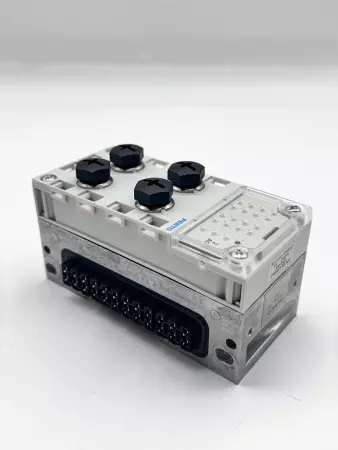

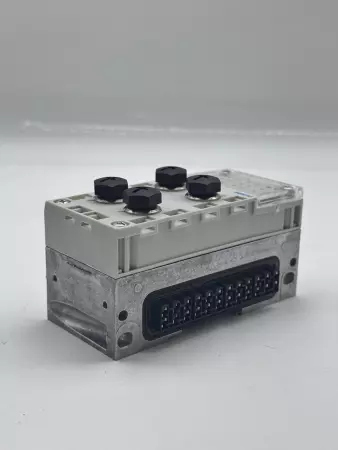

Festo CPX‑AB‑4‑M12X2‑5P‑R‑M3 Manifold Block

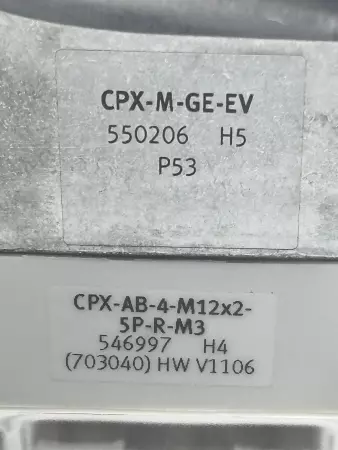

Model: CPX‑AB‑4‑M12X2‑5P‑R‑M3 (Part #546997)

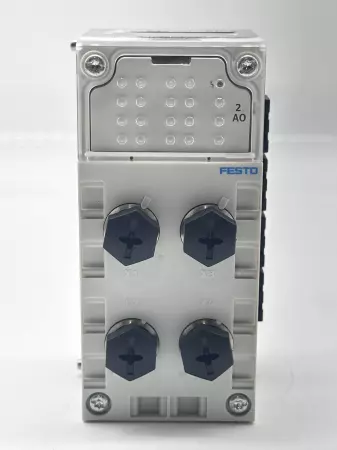

Interfaces: 4× M12×2 5‑pin sockets for power/I/O signal interlinking

Protection Rating: IP65/67

Material: PA/PC housing, low corrosion-resistant (cRC class) :contentReference[oaicite:1]{index=1}

Weight & Size: ≈310 g; dimensions ≈5.1 × 10.8 × 2.5 cm :contentReference[oaicite:2]{index=2}

Function: Provides daisy‑chain interconnection between CPX pneumatic valve blocks and I/O, simplifying modular setup and wiring.

Key Features & Benefits

• Compact, modular block enables clean manifold assembly
• IP65/67 sealing for harsh industrial environments :contentReference[oaicite:3]{index=3}
• Durable construction (PA/PC) resistant to corrosion :contentReference[oaicite:4]{index=4}
• Supports interlinking with CPX‑M‑GE‑EV valve islands (e.g. 550206 D4) :contentReference[oaicite:5]{index=5}

Typical Applications

Used in Festo CPX valve manifolds to streamline pneumatic and electrical integration in automation systems, enabling scalable, clean and robust setups.

Condition: Used

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   258365 4.S6.6.3
