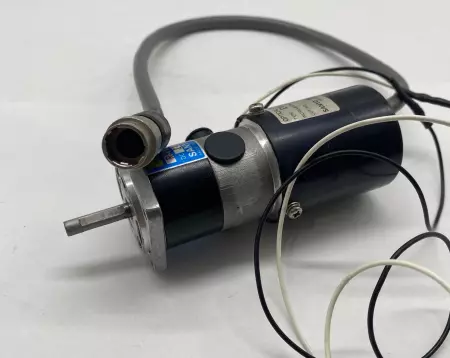

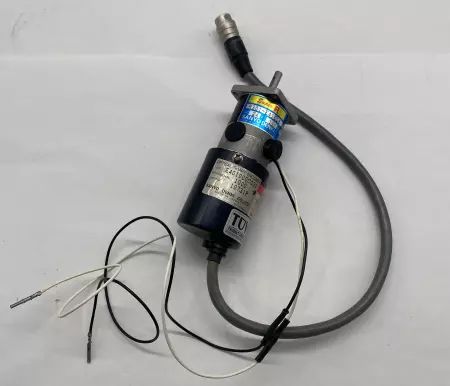

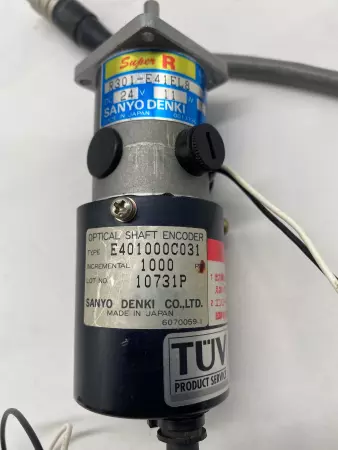

Sanyo Denki E401000C031 Optical Shaft Encoder W/R301-E41EL8 Motor

The Sanyo Denki E401000C031 is an integrated optical shaft encoder typically mounted on or paired with the R301-E41EL8 AC servo motor. It provides high-resolution position and speed feedback, ensuring precise closed-loop control in servo-driven automation systems. Encoder Technical Specifications: Model: E401000C031 Type: Incremental Optical Shaft Encoder Mounting: Motor rear shaft mount (integrated with R301-E41EL8) Resolution: 2500 PPR (typical, model-dependent) Output Signal: A, B, Z (quadrature with index) Signal Format: Differential line driver (RS-422 compatible) Supply Voltage: 5 VDC ±5% Output Voltage: TTL compatible Max Response Frequency: 200 kHz to 500 kHz Shaft Size: Matches motor shaft (approx. 8–10 mm dia) Connector Type: Molded cable with shield or industrial-grade plug Operating Temp: –10°C to +70°C Enclosure Rating: Typically IP50 to IP65 (when sealed on motor) Vibration Resistance: ~50 m/s² (depending on installation) Shock Resistance: ~500 m/s² Cable Length: Standard ~1.0–2.0 m Compatible Motor – R301-E41EL8: Motor Type: Sanyo Denki AC Servo Motor Voltage: 200–230 VAC Power: ~400 W (based on naming convention) Speed: ~3000 RPM nominal Feedback: Optical encoder (E401000C031) Application: CNC, robotics, precision automation

Condition: Used

Weight:   2.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   258484 4.S4.7.3A
