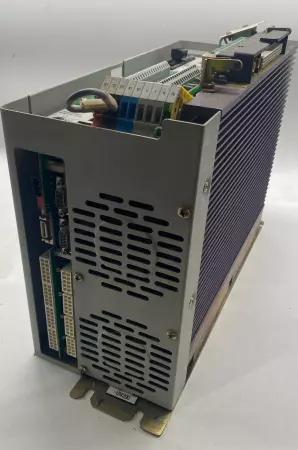

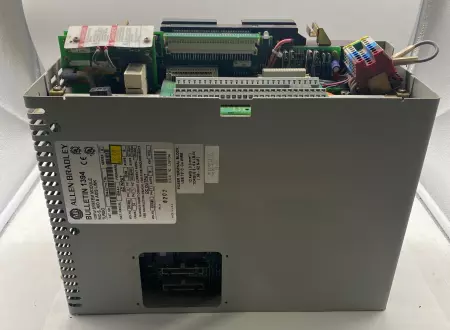

Allen-Bradley 1394-SJT10-T-RL SER.A Servo Drive Controller 10kW (No Cover)

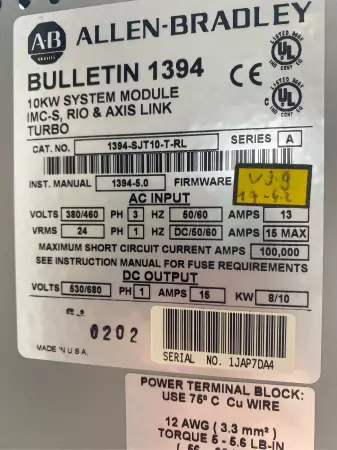

The Allen-Bradley 1394-SJT10-T-RL is a Turbo System Servo Module designed for high-performance motion control applications. This module integrates an IMC-S Class controller with Remote I/O (RIO) and AxisLink Turbo capabilities, providing advanced features for complex motion control tasks. Key Specifications: Input Voltage: 380/460 VAC, three-phase Input Frequency: 50/60 Hz Input Current: 13–15 A Output Voltage: 530/680 VDC Continuous Power Output: 8/10 kW Peak Power Output: 28 kW Continuous Output Current: 14.73 A Peak Output Current: 29.46 A Efficiency: 99% Processor: 32-bit CPU Memory: 64 KB Communication Interfaces: RS-232, DH485, RS-422, Remote I/O, AxisLink Dimensions: [Dimensions not specified in the available sources] Weight: Approximately 11 kg (24.25 lbs)

Condition: Used

Weight:   35.00

Depth:   20.00

Length:   20.00

Width:   20.00

SKU:   258564 4.R2.3.6
