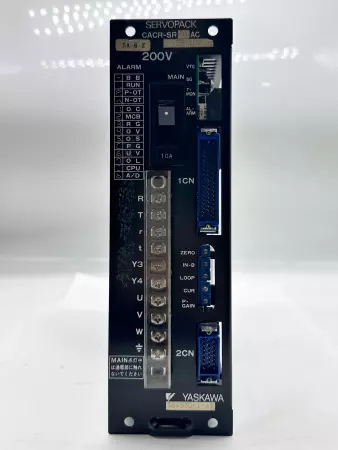

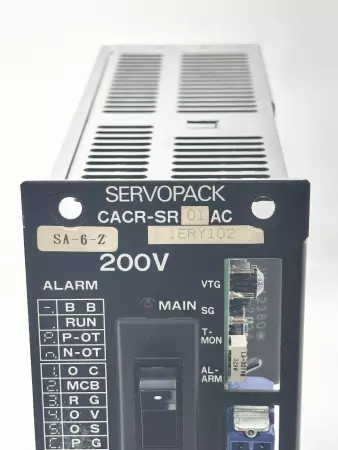

Yaskawa CACR-SR01AC1ERY102 Servopack® Servo Driver, 0.1kW

The Yaskawa CACR-SR01AC1ERY102 is a Servopack® AC servo drive designed to control Yaskawa AC servo motors in high-precision motion systems. It offers reliable velocity and torque control and is typically used in CNC machinery, robotics, and automated assembly lines. Technical Specifications: Model: CACR-SR01AC1ERY102 Series: CACR-SR Rated Power Output: 0.1 kW (100 W) Input Voltage: 200–230 VAC, 3-phase Rated Input Frequency: 50/60 Hz Rated Output Current: ~0.9 A Control Method: PWM-controlled, sinusoidal drive for AC servos Feedback Type: Resolver (Yaskawa ER-type resolver input) Compatible Motor Series: Yaskawa SGM or similar AC servos with resolver feedback Functionality: – Speed, torque, and position control – Built-in protective features (overcurrent, overvoltage, motor temperature) – Analog or pulse input command options Interface: – Analog speed/torque input – Digital I/O for enable, alarm, and fault reset Mounting: Panel mount, vertical orientation recommended Cooling: Natural convection or forced-air (if enclosed) Ambient Temperature: 0°C to 55°C Dimensions: Approx. 100 mm W × 180 mm H × 200 mm D Weight: ~2.5 kg Application: Small axis positioning, packaging lines, light automation

Condition: Used

Weight:   7.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   258571 4.S6.10.1
