Allen-Bradley 1394-AM75 SER.A AC Servo Drive, 15kW

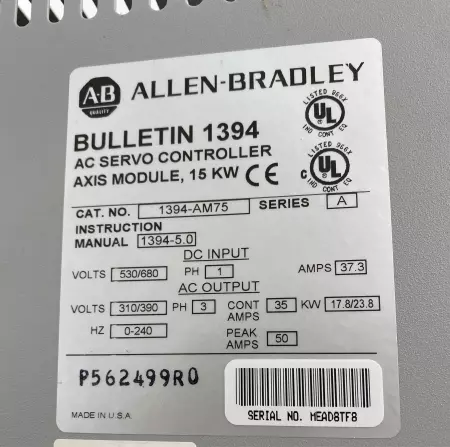

The Allen-Bradley 1394-AM75 SER.A is a high-performance AC servo drive module designed for use with 1394 GMC (General Motion Control) systems. It provides precise control of servo motors in high-power industrial automation applications. Series: 1394 Module Type: Axis Module Power Rating: 15 kW continuous Input Voltage: Supplied via system module (typically 530–680 V DC bus) Continuous Output Current: 35 A Peak Output Current: 50 A Feedback Supported: Resolver Compatible Motors: Allen-Bradley MPL and MPF series (model-specific) Cooling Method: Forced air cooling Mounting: Panel mount Protection Features: Overcurrent, short-circuit, overtemperature, undervoltage Weight: Approx. 12.7 kg (28 lbs) Enclosure Type: Open-style, for use in industrial control cabinets 17.8/23.8 KW CONTINUOUS POWER OUT (360/480 V NOM) FOR 1394 SERVO DRIVE SYSTEM

Condition: Used

Weight:   20.00

Depth:   20.00

Length:   20.00

Width:   20.00

SKU:   258582 4.R2.2.6, 4.R3.5.3
