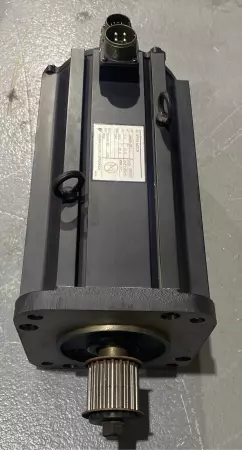

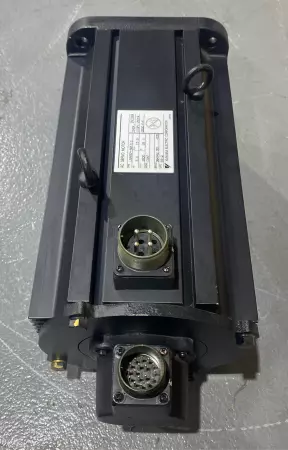

Yaskawa USASEM-50FJ11 AC Servo Motor, 5kW

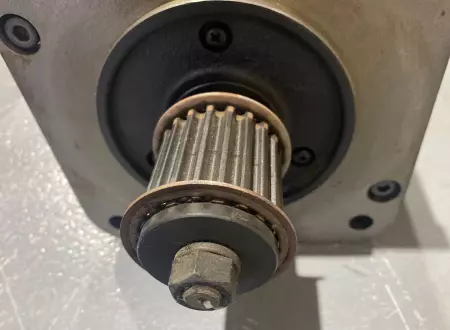

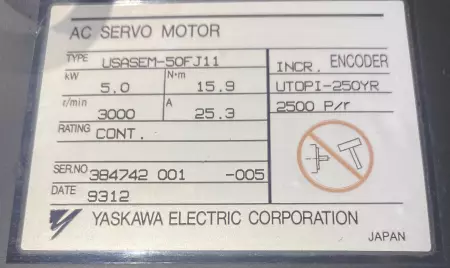

The Yaskawa USASEM-50FJ11 is a 5 kW AC servo motor from the USASEM series, designed for precision industrial automation. These motors are known for their high torque density, rugged construction, and compatibility with legacy CACR and Servopack drives. Technical Specifications Model Number: USASEM-50FJ11 Series: USASEM (AC Servomotor) Power Rating: 5 kW (6.7 HP) Rated Voltage: 200 V AC (3-phase) Rated Speed: 1500 RPM Maximum Speed: ~3000 RPM Rated Torque: ~15.9 Nm Peak Torque: ~2.5× rated (short duration overload) Current Rating: ~25.3 Feedback Device: – Built-in resolver or incremental encoder (varies by revision) Insulation Class: F Protection Rating: IP44 or higher (typically IP65 at shaft with seal) Brake: Not included in this model (no brake suffix) Mounting Type: Flange-mounted (B5 style) Shaft Type: Straight shaft with keyway Cooling: Natural convection (or forced-air via external fan if mounted)

Condition: Used

Weight:   100.00

Depth:   12.00

Length:   12.00

Width:   24.00

SKU:   258624 4.R2.2.4, 4.R7.4.6
