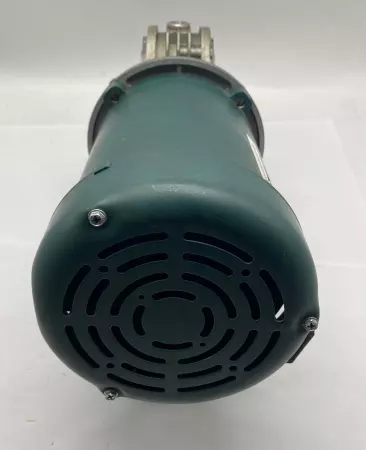

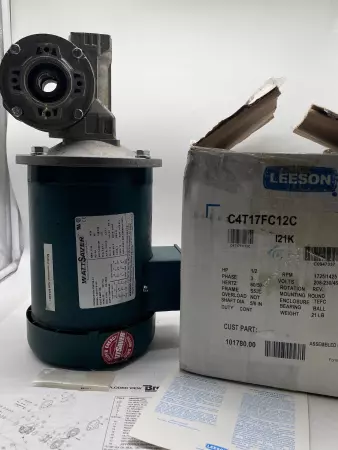

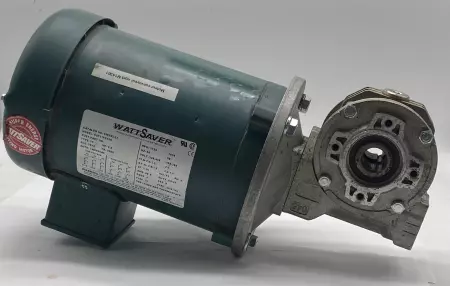

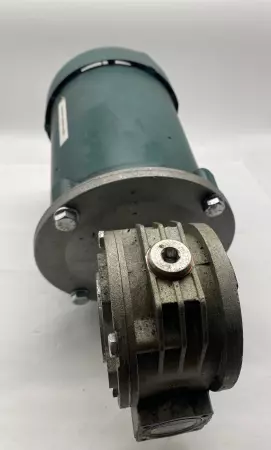

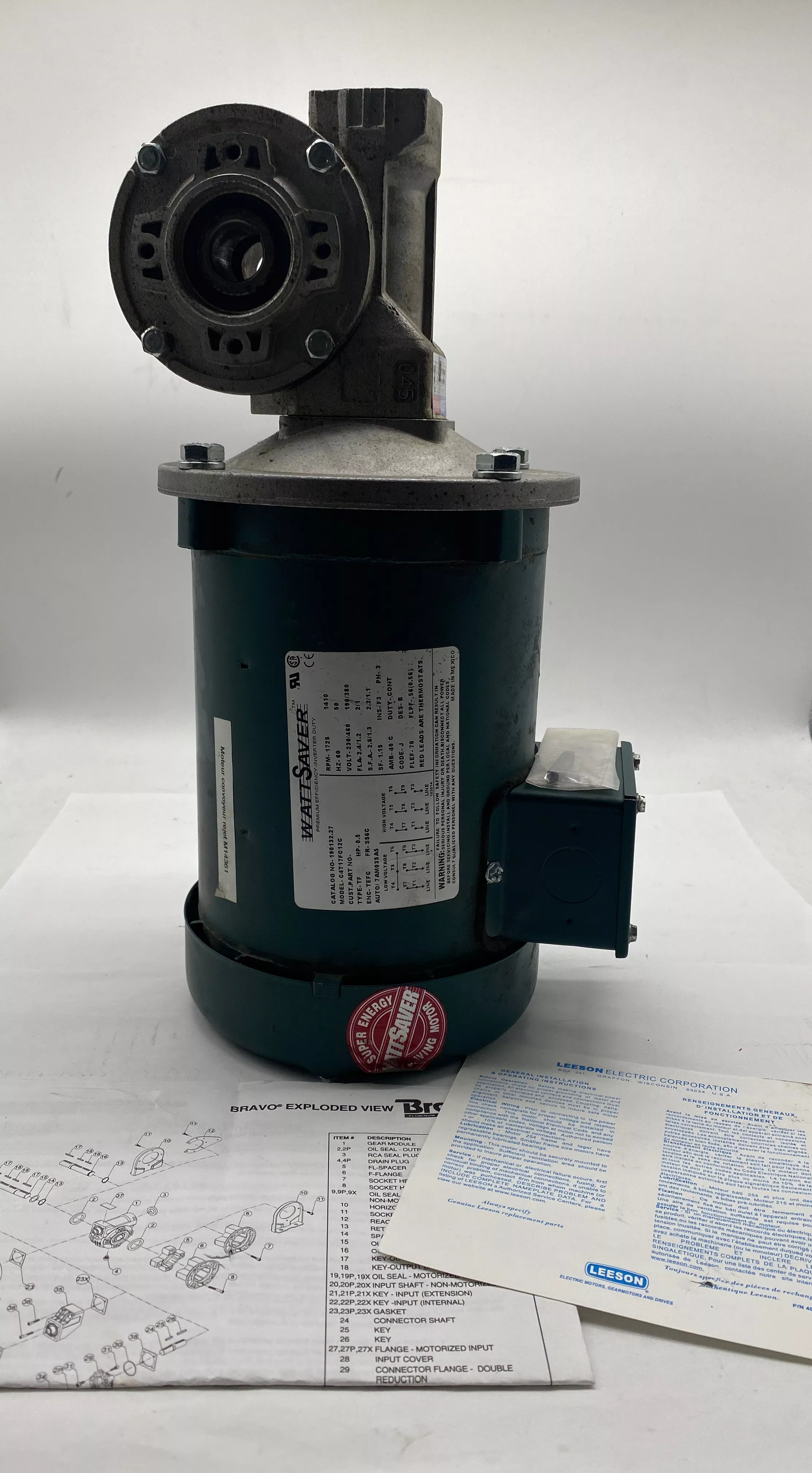

Leeson C4T17FC12C Gearmotor 0.5HP, W/Hydro-Mec Gearbox Ratio 10:1

The LEESON C4T17FC12C gearmotor, when paired with a Hydro-Mec gearbox featuring a 10:1 reduction ratio, forms a robust and efficient solution for applications requiring precise speed reduction and torque multiplication.​ LEESON C4T17FC12C Motor Specifications: Power Output: 0.5 horsepower (HP)​ Speed: 1,725 revolutions per minute (RPM) at 60 Hz​ Voltage: 208-230/460 volts AC​ Phase: Three-phase​ Frame Size: S56C​ Enclosure: Totally Enclosed Fan Cooled (TEFC)​ Service Factor: 1.15​ Insulation Class: F​ Mounting: C-Face with no base​ Shaft Diameter: 5/8 inch​ Duty Cycle: Continuous​ Hydro-Mec Gearbox Features: Gear Ratio: 10:1​ Design: Modular and compact, available in aluminum (A-Series) or cast iron (C-Series) housings​ Mounting Options: Compatible with standard IEC motor flanges​ Output Shaft: Typically features a hollow shaft; solid output shafts are also available​ Efficiency: Designed for high efficiency and reliability​ Customization: Offers various configurations to suit specific application requirements​ Combined Performance: Integrating the LEESON C4T17FC12C motor with a Hydro-Mec 10:1 gearbox results in an output speed of approximately 172.5 RPM (1,725 RPM divided by 10) and an increased torque output, making it suitable for applications demanding lower speeds with higher torque.​

Condition: Used

Weight:   28.00

Depth:   20.00

Length:   20.00

Width:   20.00

SKU:   258733 4.S5.17.1
