Allen-Bradley 150-A180NBD SER.B SMC Plus™ Motor Controller 150HP 460VAC 180A

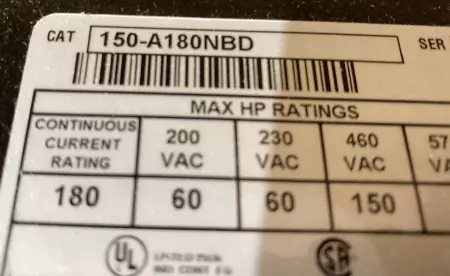

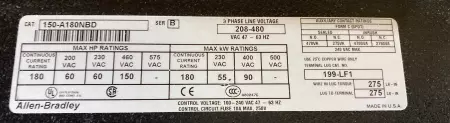

The Allen-Bradley 150-A180NBD Series B is an SMC Plus™ solid-state motor controller designed to provide smooth motor starting and stopping. It is suitable for high-horsepower, three-phase induction motor applications and features soft start/stop functionality, compact design, and integrated overload protection. Model: 150-A180NBD Series: B Manufacturer: Allen-Bradley (Rockwell Automation) Product Type: SMC Plus™ Smart Motor Controller Phase: 3-Phase Voltage Rating: 208–480 VAC, 47–63 Hz Continuous Current Rating: 180 A Max HP Ratings: – 200 VAC: 60 HP – 230 VAC: 60 HP – 460 VAC: 150 HP – 575 VAC: Not listed Max kW Ratings: – 230 VAC: 55 kW – 400 VAC: 90 kW – 500 VAC: Not listed Auxiliary Contact Ratings (Form C SPDT): – Sealed: 470 VA (N.O.), 275 VA (N.C.) – Inrush: 4700 VA (N.O.), 2750 VA (N.C.) Max Voltage: 240 VAC Control Voltage: 100–240 VAC, 47–63 Hz Control Circuit Fuse: 10 A max, 250 V Wire Torque: 275 lb-in (lug & terminal) Terminal Lug Cat. No.: 199-LF1 Wiring: Use 75°C copper wire only Certifications: UL, CE, CCC marked Country of Origin: Made in U.S.A.

Condition: Used

Weight:   75.00

Depth:   20.00

Length:   20.00

Width:   30.00

SKU:   258923 4.R4.2.3
