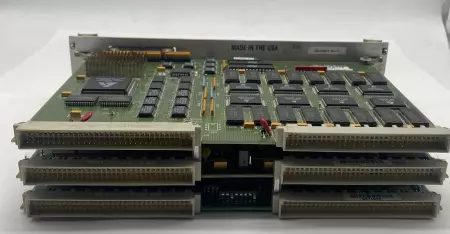

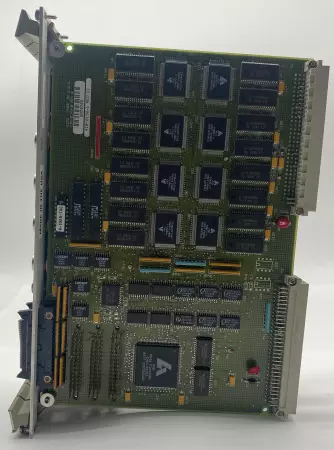

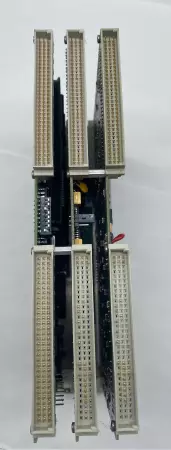

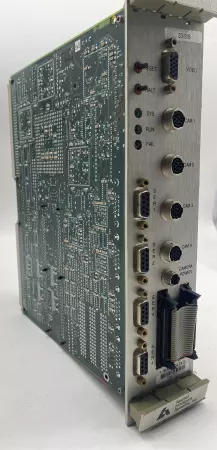

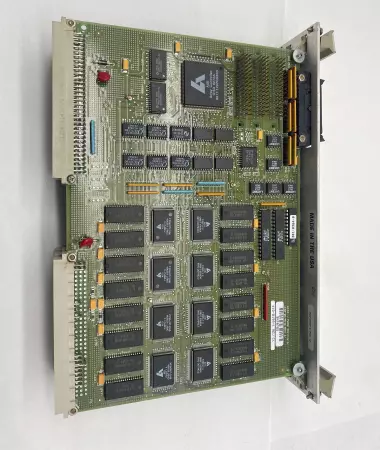

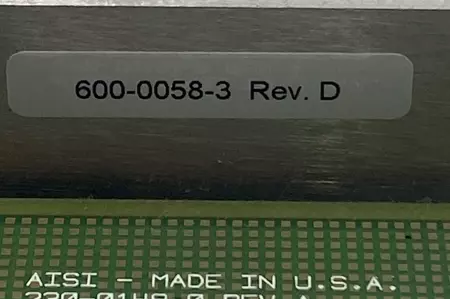

Applied Intelligence Systems 600-0058-3 REV D Video Vision Image Data-3-Board

The Applied Intelligence Systems 600-0058-3 REV D is a high-performance, triple-board video vision image data processing system designed for advanced imaging, real-time analysis, and machine vision applications. Its modular board set architecture enables efficient handling of image acquisition, processing, and output for embedded or rack-mounted systems. Model: 600-0058-3 REV D Manufacturer: Applied Intelligence Systems Board Type: Video Vision Image Data Processing – 3-board set Configuration: Stackable multi-board system (CPU, Frame Grabber, I/O Interface) Function: Real-time image capture, processing, and data interface Processor: Embedded DSP or RISC processor (model-dependent, often TI or Motorola-based) Image Input: Analog and/or digital video signal input (NTSC/PAL/CCIR or Camera Link) Resolution Support: Up to 640×480 or higher, depending on camera compatibility Frame Rate: Up to 60 fps (real-time capture) Memory: Onboard DRAM (typically 16–64 MB per board), optional flash Video Output: TTL or analog RGB (dependent on board configuration) Connectivity: Flat cable edge connectors, backplane-compatible Power Supply: +5V / +12V DC regulated input Operating Temp: 0°C to 60°C (industrial range) Mounting: Rack or enclosure mount with standoffs Use Cases: Machine vision, robotic guidance, quality inspection, medical imaging systems Compliance: CE compliant, industry standard embedded system footprint Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   10.00

Length:   12.00

Width:   16.00

SKU:   258927 4.S1.11.4E
