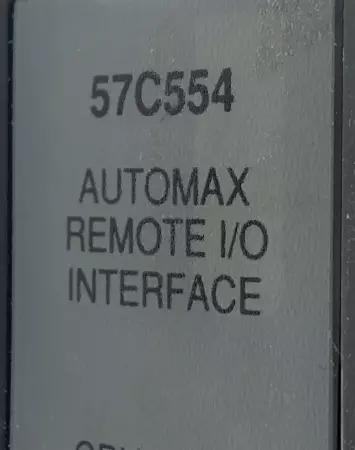

Reliance Electric 57C554 Automax Remote I/O Interface Shark

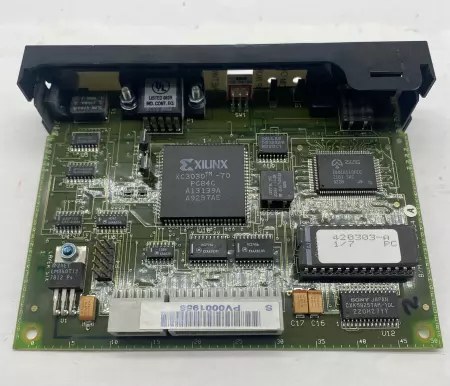

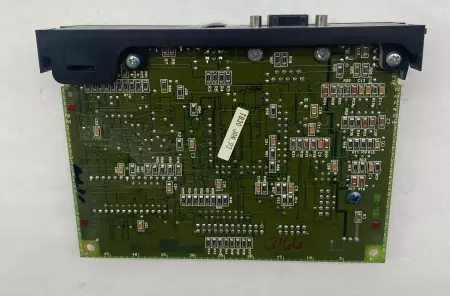

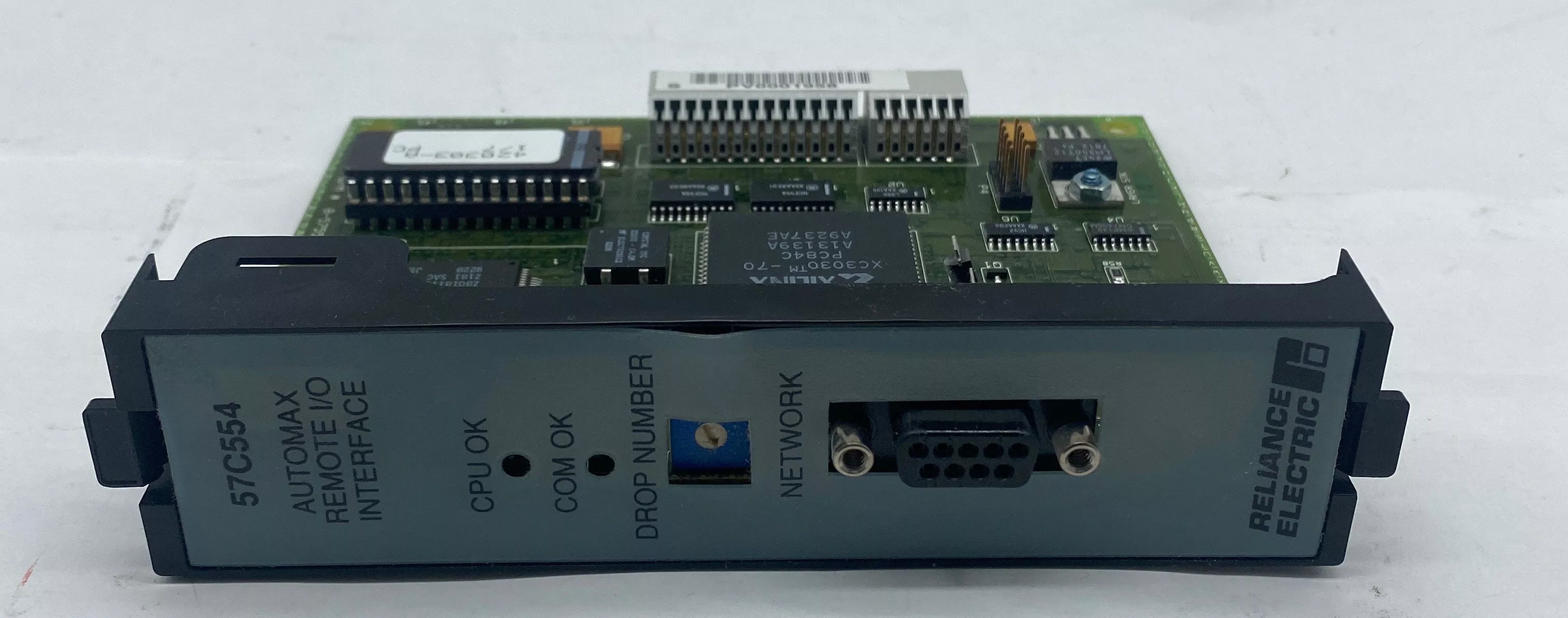

Model: 57C554 Manufacturer: Reliance Electric (also associated with ABB and Baldor Reliance) Series: AutoMax PLC Type: Shark Remote I/O Communications Module Function: Connects a Shark remote rack to the AutoMax Remote I/O Network Installation Slot: First slot to the right of the power supply in the Shark rack Power Supply: Logic circuitry powered by the rack's +5 VDC; I/O network powered by a separate +24 VDC supply regulated at +12 VDC Faceplate Features: Two green LEDs: "CPU OK" (indicates successful power-up diagnostics) and "COM OK" (indicates communication status) 16-position rotary switch for setting the Shark rack's Remote I/O drop number (1 to 7 or 9 to F); read only on power-up 9-pin female D-shell connector labeled "NETWORK" for connecting to the Remote I/O Network Construction: Printed circuit board assembly with a faceplate; includes tabs for easy installation and removal

Condition: Used

Weight:   0.90

Depth:   5.00

Length:   9.00

Width:   12.00

SKU:   258940 4.S1.11.3C
