Mitsubishi Electric FR-E740-016SC-NA Compact Size Inverter 0.5HP

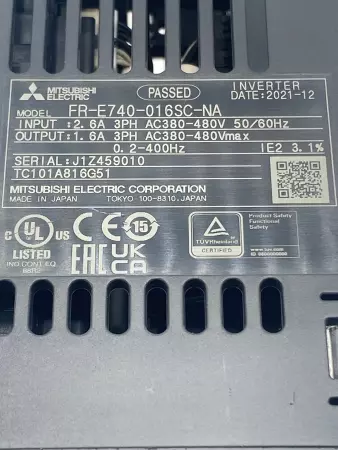

The Mitsubishi Electric FR-E740-016SC-NA is a compact inverter from the FR-E700 series, designed for efficient motor control in various industrial applications. This model is rated at 0.4 kW (0.5 HP) and operates with a three-phase input voltage range of 380 to 480 VAC. Key Specifications: Model Number: FR-E740-016SC-NA Power Rating: 0.4 kW (0.5 HP) Input Voltage: Three-phase 380–480 VAC Rated Current: 1.6 A Output Frequency Range: 0.2 to 400 Hz Control Methods: V/F control, Advanced magnetic flux vector control, General-purpose magnetic flux vector control, Optimum excitation control Dimensions (H x W x D): 5.9 in (150 mm) x 5.5 in (140 mm) x 4.7 in (120 mm) Weight: Approximately 3.1 lbs (1.4 kg)

Condition: Used

Weight:   6.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   259000 4.S4.1.3
