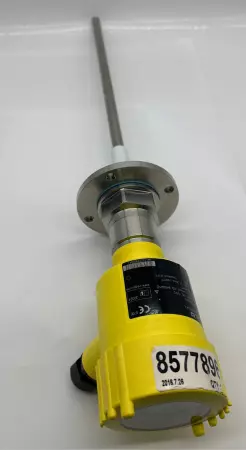

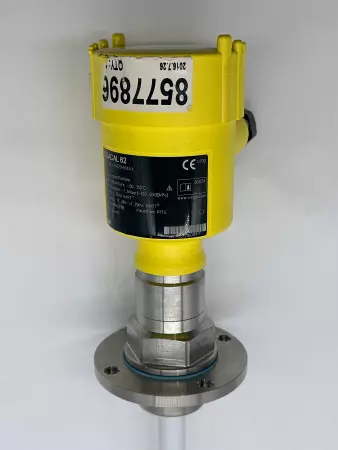

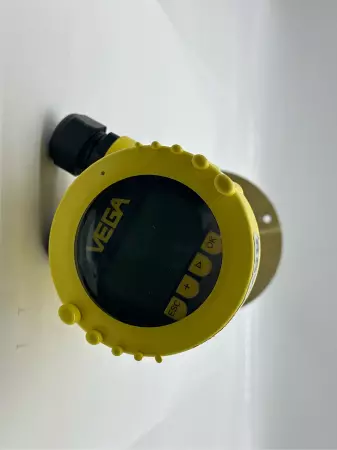

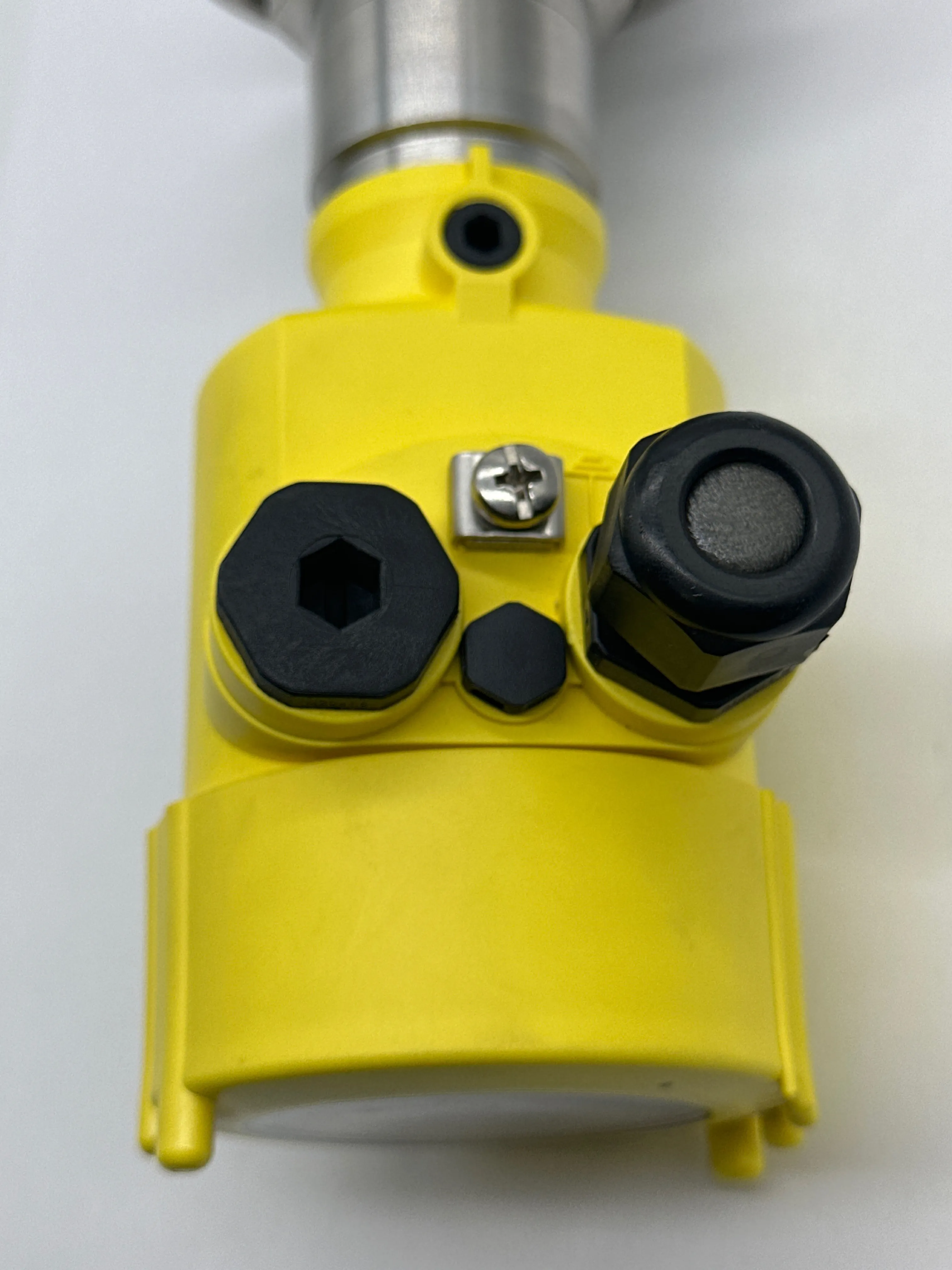

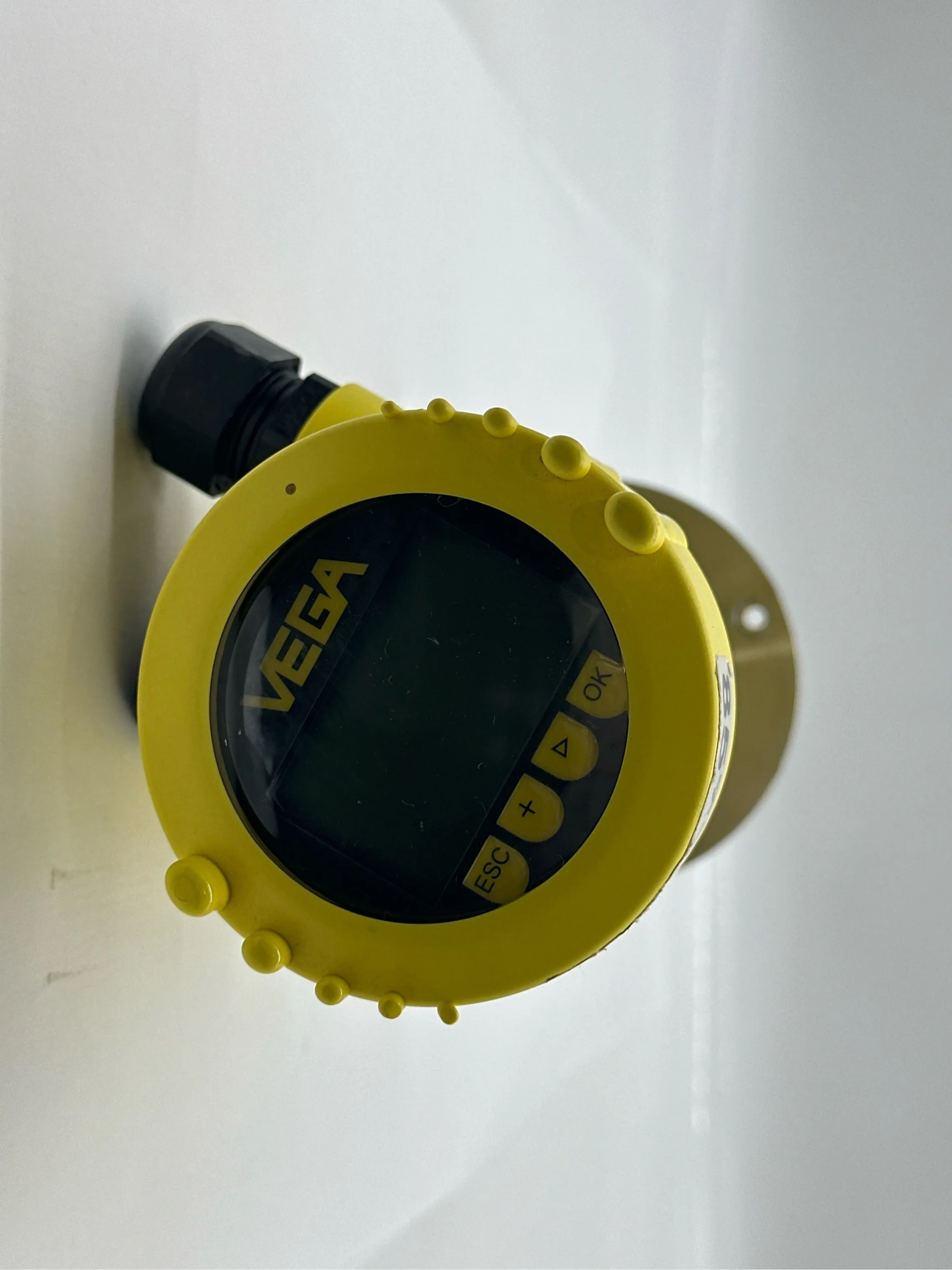

Vega CL62.XXAGDHKMAX Vegacal 62 Capacitive Level Sensor

The Vega VEGACAL 62 is a capacitive rod probe designed for continuous level measurement in various industrial applications. Key Features: Measuring Range: Up to 6 meters. Process Temperature: Operates within a range of -50 to 200 °C. Process Pressure: Handles pressures from -1 to 64 bar Materials: Wetted parts are available in PTFE, 316L stainless steel, Alloy 400 (2.4360), PEEK, and Steel C22.8. Process Connections: Threaded connections starting from G½ or ½ NPT, and flange connections from DN25 or 1". Housing Materials: Options include Plastic, Aluminium, Stainless steel (precision casting), and Stainless steel (electropolished). Protection Rating: Available in IP66/IP68 (0.2 bar), IP66/IP67, and IP66/IP68 (1 bar). Output Signals: Supports Profibus PA, Foundation Fieldbus, and Two-wire 4 … 20 mA/HART.

Condition: Used

Weight:   10.00

Depth:   8.00

Length:   8.00

Width:   16.00

SKU:   259539 4.S3.7.2
