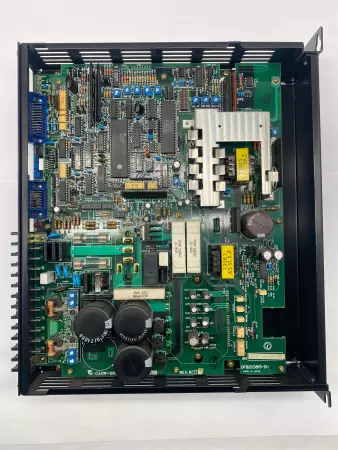

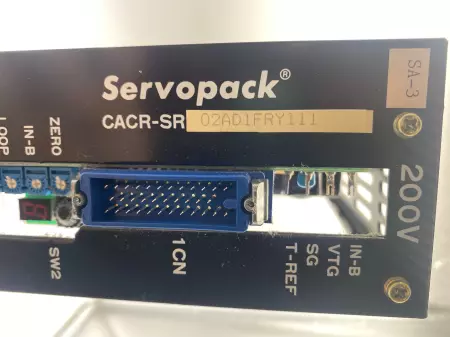

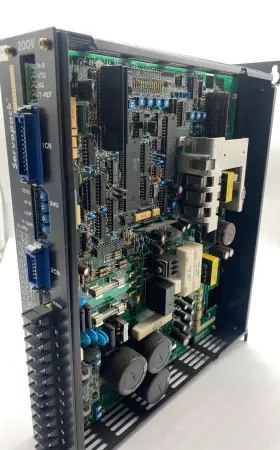

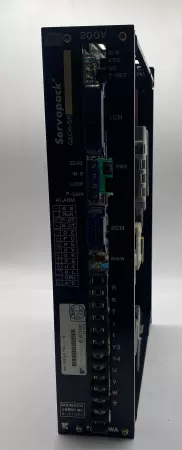

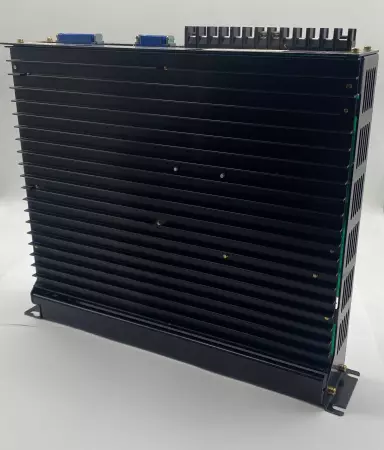

Yaskawa CACR-SR02AD1FRY111 Servopack® Servo Drive, 0.2kW

The Yaskawa CACR-SR02AD1FRY111 is a Servopack® servo amplifier designed to drive AC servo motors with high precision and response. Rated for 0.2 kW, it is typically used in automation systems for precise position, speed, and torque control. It’s part of the CACR series, known for compatibility with Yaskawa's rotary servomotors. Technical Data: Model: CACR-SR02AD1FRY111 Rated Output Power: 0.2 kW Rated Output Current: ~1.6 A Input Voltage: 200 VAC ±10%, 3-phase Input Frequency: 50/60 Hz Control Type: Analog voltage control Feedback Support: Incremental encoder Motor Type Supported: AC Servo Motor (e.g., Yaskawa SGM series) Protection Functions: Overcurrent, overvoltage, undervoltage, overload, overheat Cooling Method: Natural convection or panel fan-cooled Mounting: Panel mount Ambient Temperature: 0–55°C (derate above 40°C) Weight: Approx. 1.3 kg Standards Compliance: UL, CE (model-dependent)

Condition: Used

Weight:   10.00

Depth:   8.00

Length:   16.00

Width:   16.00

SKU:   259625 4.S1.10.2
