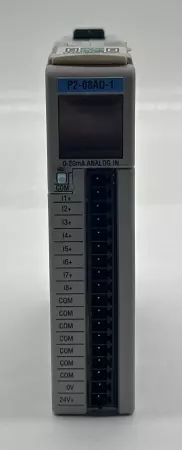

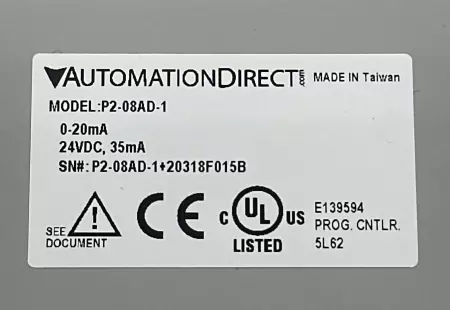

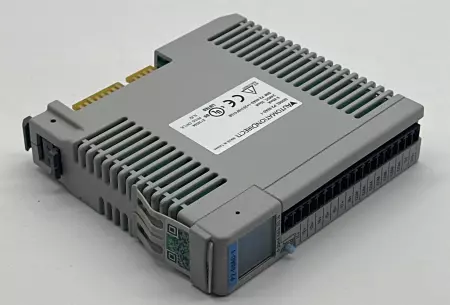

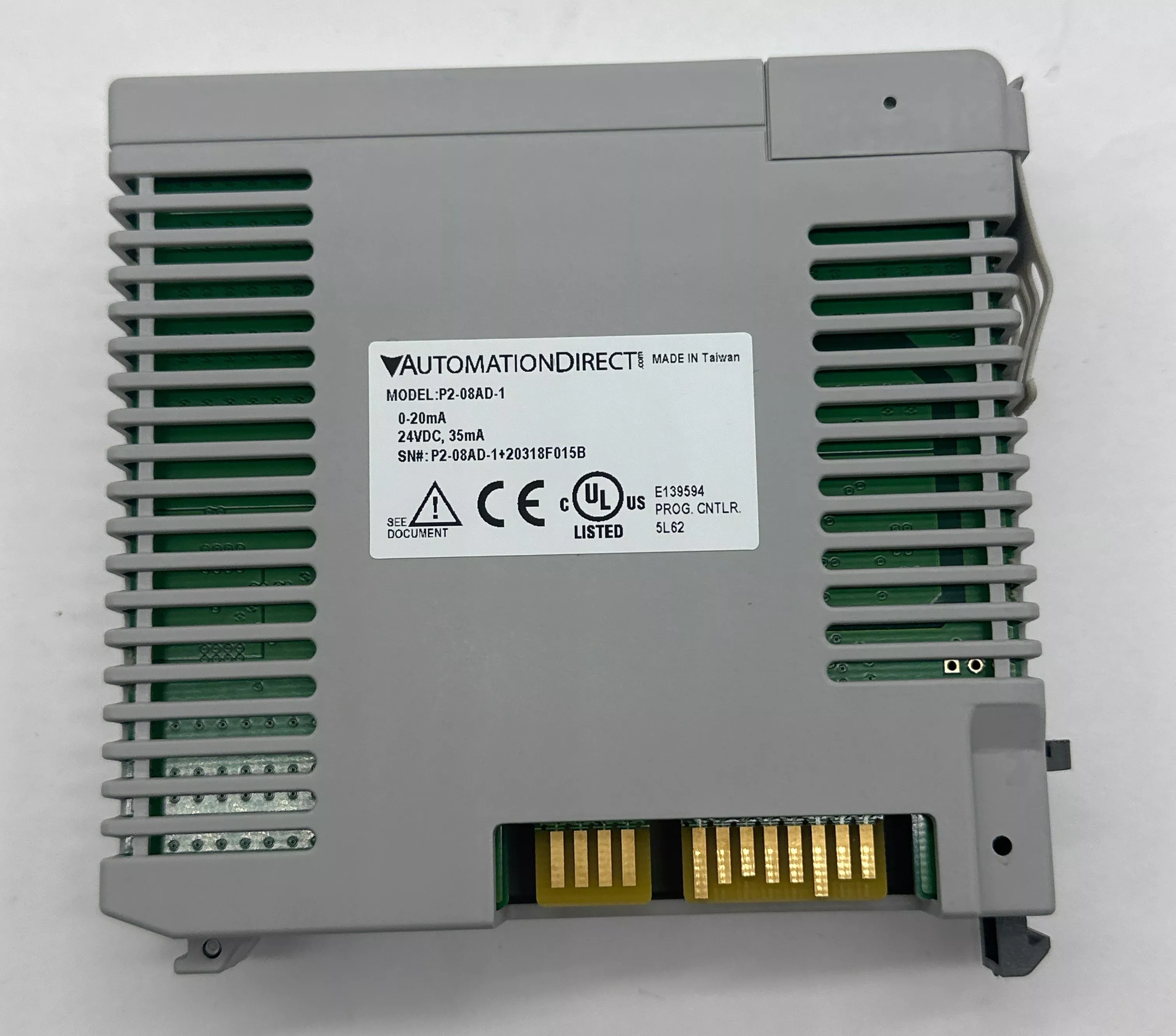

AutomationDirect P2-08AD-1 8-Channel Analog Input Module

The AutomationDirect P2-08AD-1 is an 8-channel analog input module designed for use with the Productivity2000 PLC series. It provides high-resolution analog input capability for monitoring sensors and process variables in industrial automation systems. Model: P2-08AD-1 Manufacturer: AutomationDirect Series: Productivity2000 Type: Analog Input Module Channels: 8 single-ended analog inputs Input Type: Voltage Input Range: 0–5 VDC or 0–10 VDC (user selectable per channel) Resolution: 16-bit Accuracy: ±0.1% of full scale Input Impedance: >1 MΩ Update Rate: 8 channels per scan (typical total scan time <1 ms) Isolation: 500 VDC channel-to-logic Power Consumption: 70 mA @ 5 VDC, 35 mA @ 24 VDC (supplied from base) Operating Temperature: 0 to 60 °C Mounting: DIN rail via Productivity2000 base Diagnostics: Channel fault detection and status indicators Application: Data acquisition, process monitoring, sensor input for voltage-output devices

Condition: Used

Weight:   3.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   259758 4.S2.13.2A
