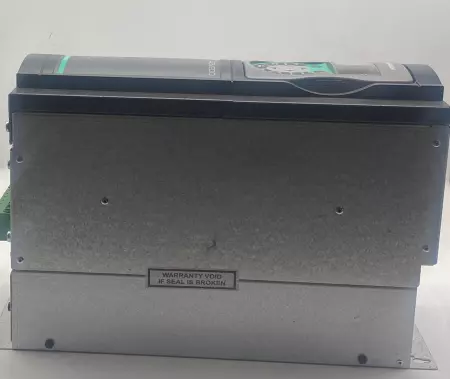

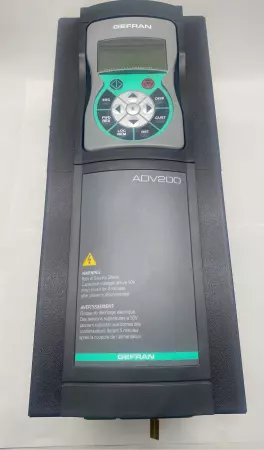

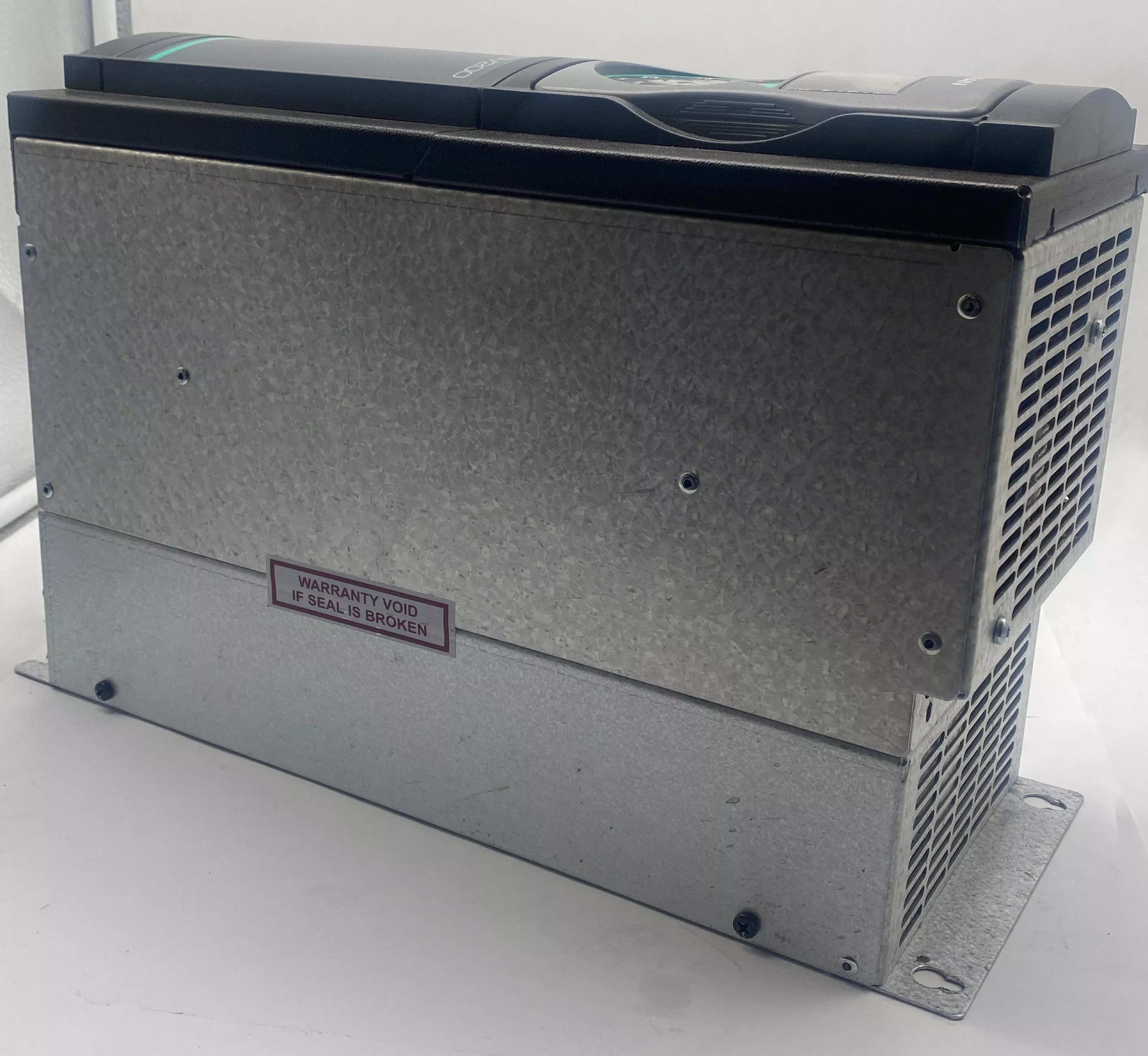

Gefran ADV200 Frequency Inverter Drive

The Gefran ADV200 is a high-performance vector inverter drive designed for complex automation and motion control applications. It supports both open-loop and sensorless vector control, delivering precise speed and torque regulation for a wide range of industrial motors. Technical Specifications Model Family: ADV200 Manufacturer: Gefran S.p.A. Power Range: 0.75 kW to 1.2 MW (varies by model) Input Voltage: Low Voltage Models: 3× 230/400/480 VAC Medium Voltage Models: up to 690 VAC Input Frequency: 50/60 Hz Control Modes: V/f scalar control Sensorless vector control Closed-loop vector control (optional with encoder feedback) Output Frequency: 0–650 Hz Overload Capacity: 150% for 60 seconds (standard) Control Interface: Integrated keypad with LCD display or remote keypad Analog Inputs: 2 or more (voltage/current selectable) Digital Inputs: 5+ programmable Analog Outputs: 1–2 Relay Outputs: 2+ Fieldbus Options: CANopen, Profibus, DeviceNet, EtherCAT, Modbus RTU/TCP Protection Class: IP20 (standard), optional IP54/IP55 for wall-mounted versions Cooling: Forced air-cooled (fan) or liquid-cooled versions for high power Certifications: CE, UL, cUL, RoHS Programming Software: GF_eXpress Applications: Pumps, fans, compressors Extruders, mixers, and centrifuges Elevators, conveyors, HVAC Machine tools and automated systems Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   27.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   259815 4.R5.8.3
