In stock 4 available

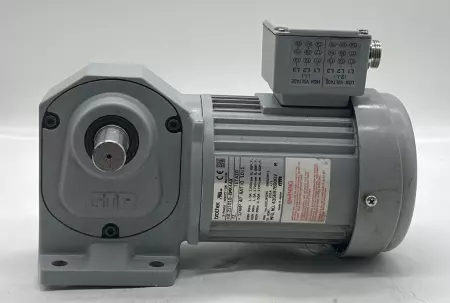

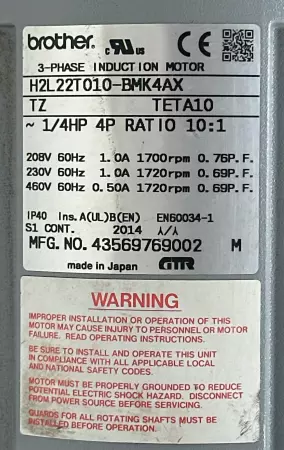

This is a compact AC induction motor paired with a gear reducer for low-speed, high-torque output. Commonly used in conveyors, automated machinery, and light-duty industrial equipment, it offers reliable performance in continuous duty applications. Technical Specifications Motor Model: H2L22T010-BMK4AX Motor Type: 3-phase AC induction motor Power Output: 0.25 HP (0.18 kW) Voltage: 208/460 V Frequency: 60 Hz Rated Current: ~1.0 A @ 230V Speed (Motor only): 1720 RPM Insulation Class: F Service Factor: 1.0 Gear Reducer Ratio: 10:1 Output Speed (with reducer): Approx. 172 RPM @ 60 Hz Mounting Type: Horizontal foot mount Enclosure: TEFC (Totally Enclosed Fan Cooled) Protection Rating: IP40 Lubrication: Grease-packed for life (gearbox may be oil-lubricated) Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 45.00
Depth: 16.00
Length: 16.00
Width: 16.00
SKU: 259889 4.R3.8.3, 4.S9.16.1
