In stock 1 available

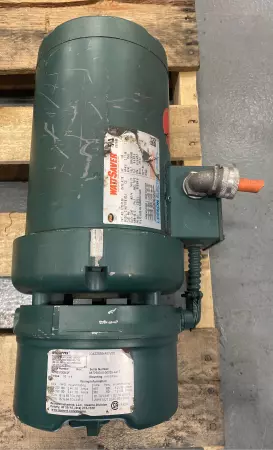

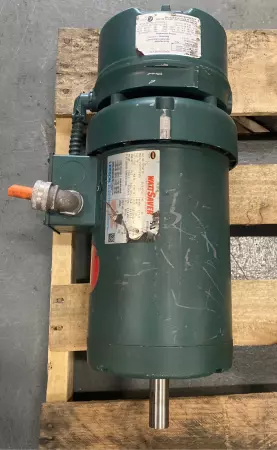

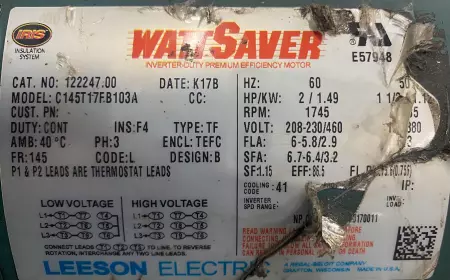

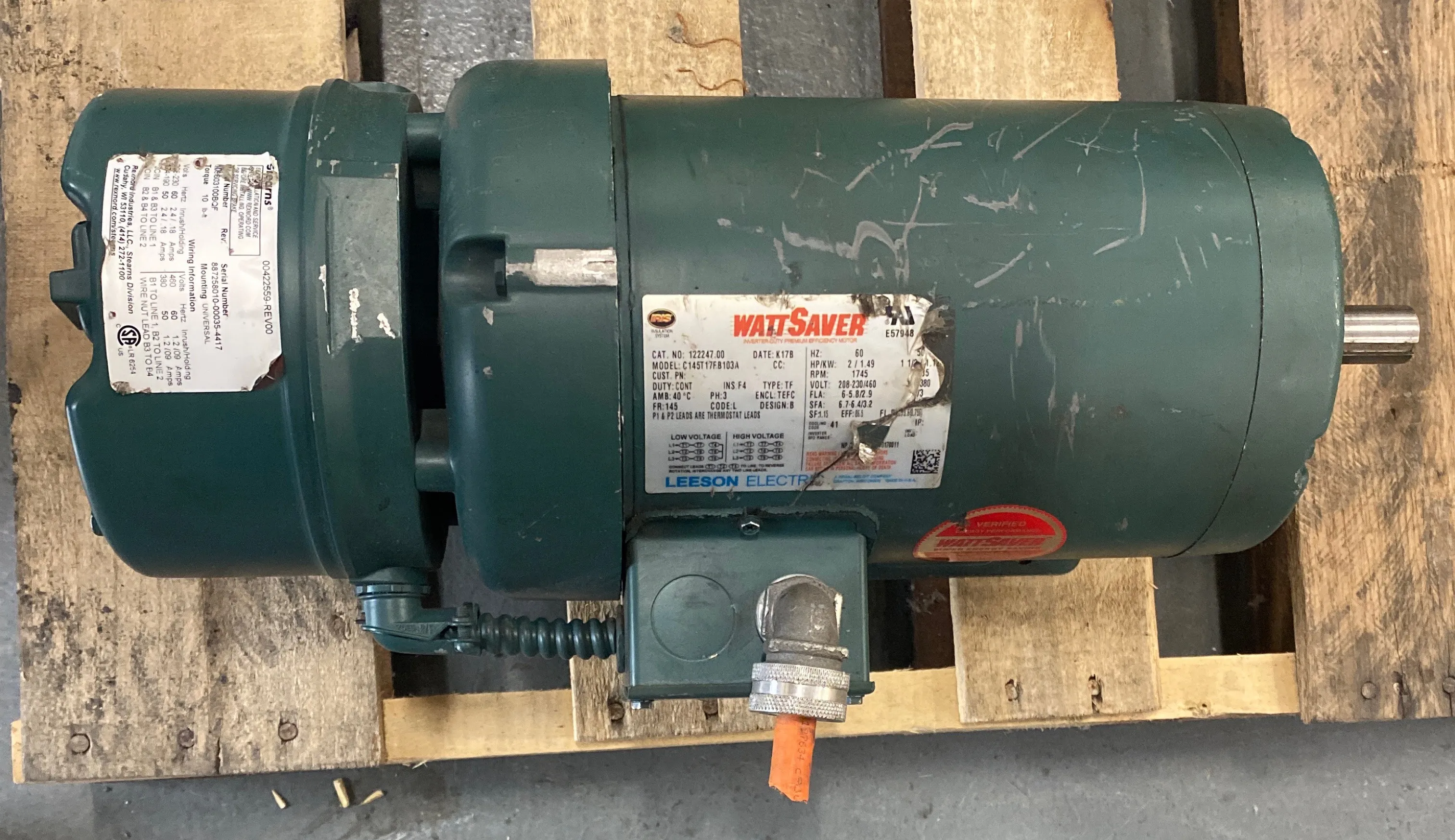

The Leeson WattSaver C145T17FB103A is a premium-efficiency, inverter-duty AC induction motor designed for continuous operation in industrial environments. It's built to handle variable frequency drive (VFD) applications with enhanced thermal and winding protection. General Specifications Model: C145T17FB103A Catalog No.: 122247.00 Series: WattSaver (Inverter Duty Premium Efficiency) Type: TF Frame: 145T Enclosure: TEFC (Totally Enclosed Fan Cooled) Mounting: Rigid base Design: NEMA B Code: L Insulation class: F4 Thermostat leads: P1 & P2 Cooling code: 41 Ambient temperature: 40 °C Duty: Continuous (S1) Electrical Specifications Power: 2 HP (1.49 kW) Voltage: 208-230/460 V AC, 3-phase Frequency: 60 Hz Full load amps (FLA): 6.0-5.8 / 2.9 A Service factor amps (SFA): 6.7-6.4 / 3.2 A RPM: 1745 Efficiency (EFF): 86.5% Service factor (SF): 1.15 Power factor: Not listed (typical for premium motors: ~0.85–0.90) Performance Notes Suitable for use with VFDs, inverter speed range noted Equipped with IRIS insulation system for inverter-duty protection Made in USA by Leeson Electric (Regal-Beloit Company) Ideal for pump, fan, compressor, and conveyor systems
Condition: Used
Weight: 55.00
Depth: 16.00
Length: 19.00
Width: 28.00
SKU: 259913 4.R4.8.4
